926046 - Gravely 36" Power Brush, Subaru (SN: 040000 & Above) Wheels And Axles Parts Diagram

36" Power Brush, Subaru

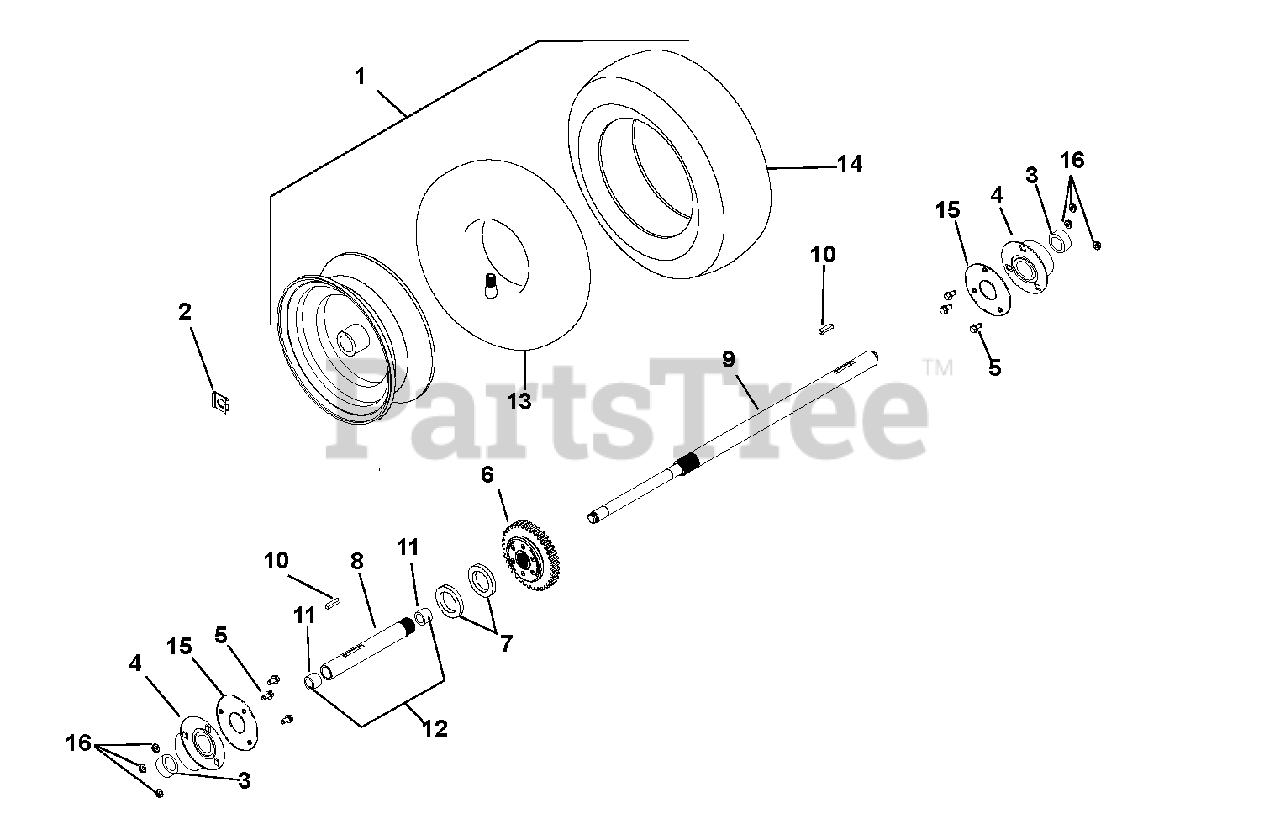

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100231

Tire/Wheel Assembly RH 16 x 6.50-8 (Includes Item 14)
(Superseded to 07101139)

Note: (Includes Item 14)

$151.99

$

Usually ships in 4-12 days

0

Gravely 07100232

Tire/Wheel Assembly LH 16 x 6.50-8 (Includes Item 14)
(Superseded to 07101140)

Note: (Includes Item 14)

$151.99

$

In Stock, only 2 left!

0

2

Gravely 05700001

Clip, Snap

$2.99

$

In Stock, Qty 20+

0

3

Gravely 05501014

Spacer

$7.99

$

In Stock, only 4 left!

0

4

Gravely 05400706

Bearing
(Superseded to 05400723)

$44.99

$

In Stock, Qty 7

0

5

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

6

Gravely 00866000

Differential Assembly
(Superseded to 05013000)

$201.99

$

In Stock, Qty 7

0

7

Gravely 06443000

Washer, Flat Steel 1.062 x 2.00 x .134
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 00660800

Axle, Short (Included in Item 12)
(Superseded to 52604100)

Note: (Included in Item 12)

$55.99

$

In Stock, only 2 left!

0

9

Gravely 00660900

Axle, Long

$98.99

$

In Stock, only 2 left!

0

10

Gravely 06600002

Key, Rectangular .25 x .188 x 1.00

$1.49

$

In Stock, Qty 11

0

11

Gravely 05500023

Bushing, Sleeve (Included in item 12)

Note: (Included in item 12)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 52604100

Axle, Short with Bushings (Includes Items 8 and 11)

Note: (Includes Items 8 and 11)

$55.99

$

In Stock, only 2 left!

0

13

Gravely 07108700

Tube 16 x 6.50-8

$36.99

$

Usually ships in 4-12 days

0

14

Gravely 07100728

Tire 16 x 6.50-8 K478

$87.99

$

Usually ships in 4-12 days

0

15

Gravely 03389051

Plate, Bearing Spacer
(Superseded to 04796351)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 6543500

Nut, Locking Top Flange .25-20

$

$

Not available
