926058 - Gravely 36" Power Brush, Subaru (SN: 000101 - 054999) Friction Drive Parts Diagram

36" Power Brush, Subaru

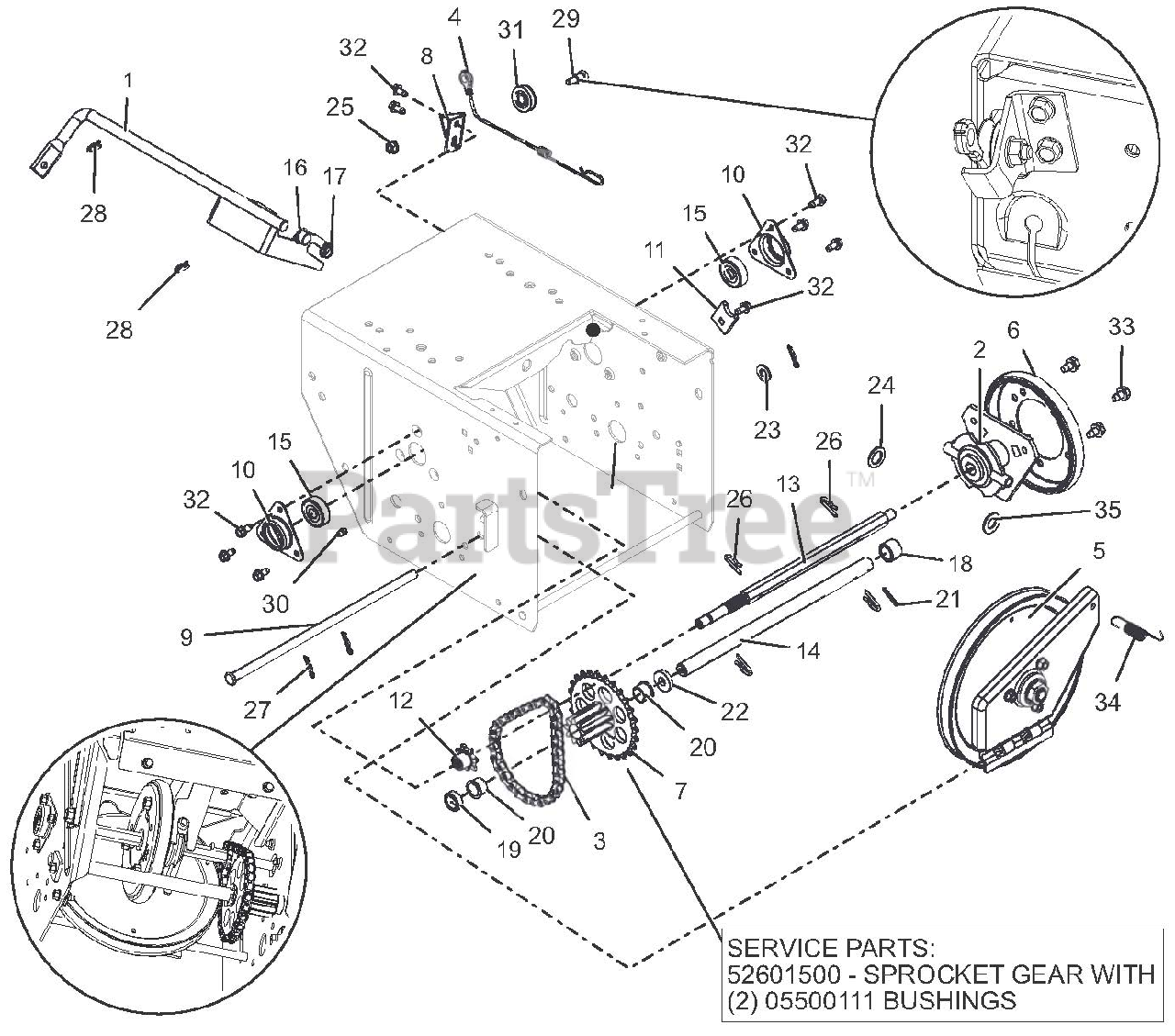

Friction Drive Parts Diagram

  • Title

1

Gravely 00371351

ARM, SHIFT -WELDMENT
(Superseded to 00371300)

$60.99

$

Usually ships in 4-12 days

0

2

Gravely 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

3

Gravely 02466200

CHAIN, ROLLER - #41 w/32 PITCHES

$5.99

$

In Stock, Qty 15

0

4

Gravely 06900503

CABLE, LOWER TRACTION (SS & PRO)

Note: (SS & PRO)

$17.99

$

In Stock, Qty 17

0

5

Gravely 52602700

PLATE, SWING-ASSY

$118.99

$

In Stock, only 2 left!

0

6

Gravely 00170800

DISC, FRICTION
(Superseded to 09475300)

$34.99

$

In Stock, Qty 20+

0

7

Gravely 00190600

PINION, SPROCKET

$

$

Not available

7

Gravely 52601500

SPROKET GEAR

Note: SERVICE PART

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 05500111

BUSHINGS

Note: SERVICE PART

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00373051

BRKT, CABLE PULLEY

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 00380900

PIN, PIVOT

$40.99

$

In Stock, only 1 left!

0

10

Gravely 00383000

FLANGE, BRG

$12.99

$

In Stock, only 2 left!

0

11

Gravely 00503500

TAB, ANTI - ROTATION

$4.99

$

In Stock, only 2 left!

0

12

Gravely 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 04511700

SHAFT, HEX -W/SPLINE TRACK

$58.99

$

In Stock, only 3 left!

0

14

Gravely 04511800

SHAFT, PINION

$42.99

$

In Stock, only 1 left!

0

15

Gravely 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

16

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

17

Gravely 05500028

BSHG, POLYLINER - .50 SNAP-IN

$2.49

$

In Stock, Qty 13

0

18

Gravely 05500029

SPCR, .635 X .880 X .611

$2.49

$

In Stock, Qty 9

0

19

Gravely 05500035

BSHG, SLV , .635X.880X.305

$3.99

$

In Stock, Qty 9

0

20

Gravely 05500111

BSHG, FLG .625 X .750 X .500 X .875

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

22

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YWZC
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

26

Gravely 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

28

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

29

Gravely 07000021

BOLT, SHLDR -.375 X .375 X .25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

30

Gravely 07061300

ZERK, FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

31

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

32

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 08300019

SPRG, EXTENSION

$5.99

$

In Stock, Qty 18

0

35

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0
