926058 - Gravely 36" Power Brush, Subaru (SN: 000101 - 054999) Wheels And Axles Parts Diagram

36" Power Brush, Subaru

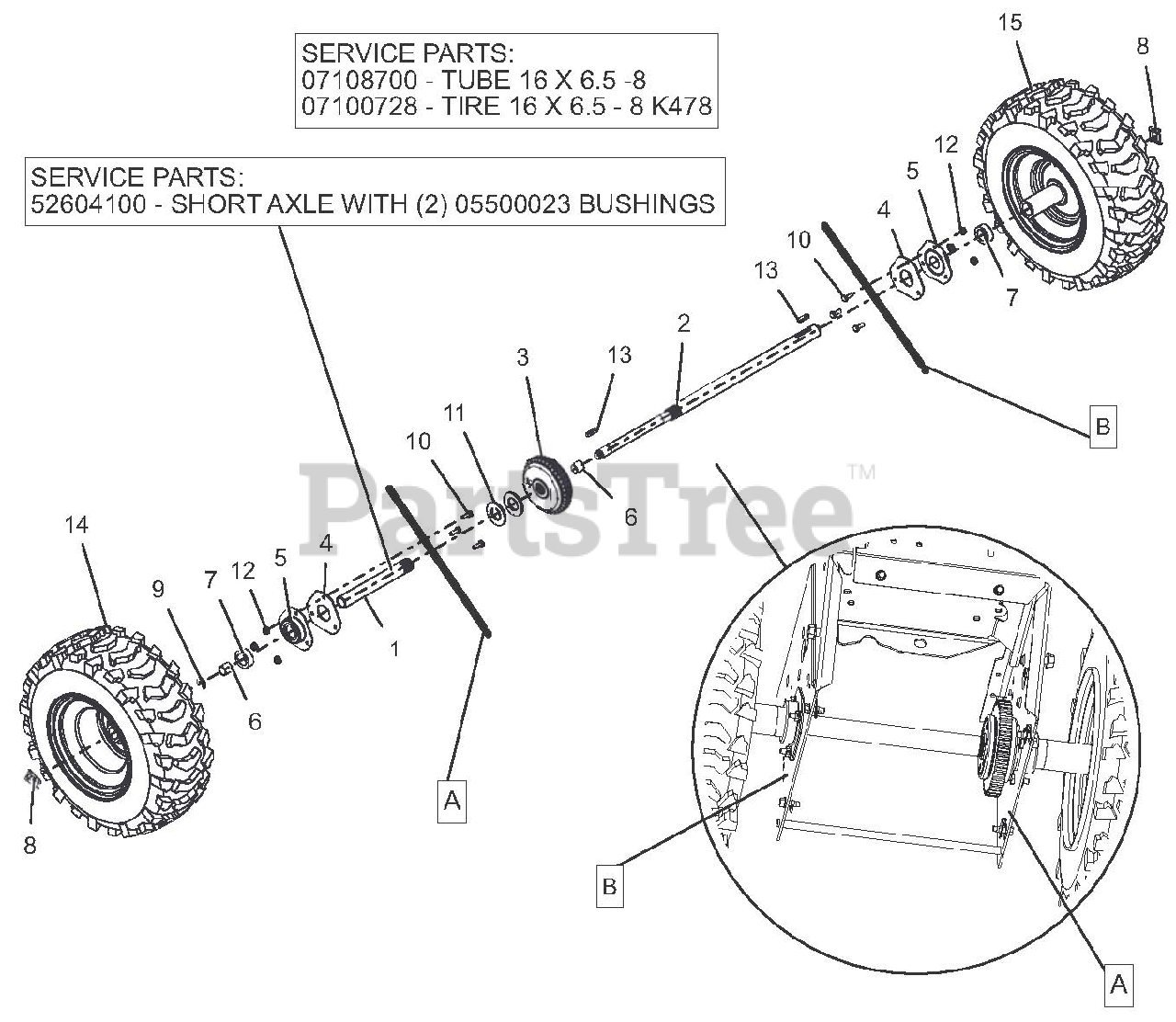

Wheels And Axles Parts Diagram

  • Title

1

Gravely 00660800

AXLE, SHORT - PRO AUTO DIFF
(Superseded to 52604100)

$52.99

$

In Stock, Qty 9

0

1

Gravely 52604100

SHORT AXLE

Note: SERVICE PART

$52.99

$

In Stock, Qty 9

0

1

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 19

0

2

Gravely 00660900

AXLE, LONG - PRO AUTO DIFF

$96.99

$

In Stock, only 1 left!

0

3

Gravely 04584100

DIFFERENTIAL, AUTOMATIC

$136.99

$

In Stock, only 1 left!

0

4

Gravely 04796351

PLATE, BEARING SPACER (BLACK)

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 05400723

BRG, FLANGE 1.003/1.000 3 BOLT

$43.99

$

In Stock, only 2 left!

0

6

Gravely 05500023

BSHG, SLV .706 X .764 X .75 BRZ

$3.99

$

In Stock, Qty 19

0

7

Gravely 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 12

0

8

Gravely 05700001

CLIP, SNAP - .625

$2.49

$

In Stock, only 3 left!

0

9

Gravely 05708300

RING, RETAINING-E .625X.042

$0.99

$

In Stock, only 4 left!

0

10

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

11

Gravely 06443000

WSHR-FL-STL1.062X2.00X.134YWZC
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

13

Gravely 06600002

KEY, RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

$148.99

$

Usually ships in 4-12 days

0

15

Gravely 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

$148.99

$

In Stock, only 2 left!

0

16

Gravely 07108700

TUBE 16 X 6.5-8

Note: SERIVE PART

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 07100728

TIRE 16 X 6.5-8 K478

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0
