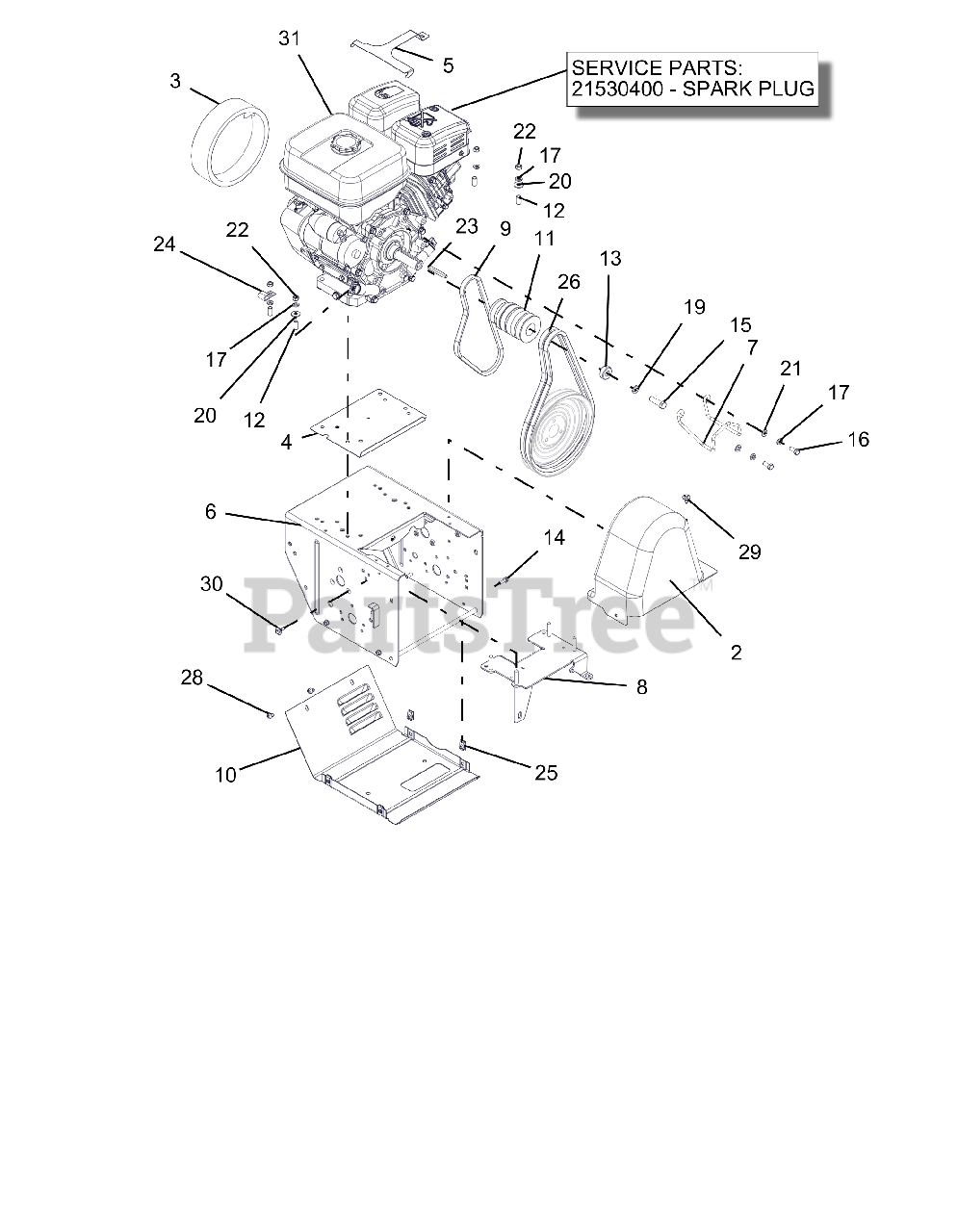

926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Engine And Frame Parts Diagram

36" Power Brush, Subaru, Hydro

Engine And Frame Parts Diagram

  • Title

2

Gravely 03965700

COVER, BELT - TALL PRO

$159.99

$

Usually ships in 4-12 days

0

3

Gravely 03972500

COVER, FOAM - SUBARU RECOIL

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 03980051

BAFFLE, WATER - PRO SERIES

$46.99

$

Usually ships in 4-12 days

0

5

Gravely 03981151

GUARD, SNOW- SUBARU

$63.99

$

Usually ships in 4-12 days

0

6

Gravely 04426153

FRAME, MAIN - PRO HYDRO

$

$

Not available

7

Gravely 04509700

FINGER, BELT - HYDRO TRACK
(Superseded to 05273300)

$26.99

$

In Stock, only 2 left!

0

8

Gravely 04451300

BRKT, HYDRO TRANS, LG

$31.99

$

Usually ships in 4-12 days

0

9

Gravely 07200631

V-BELT, 4L-WRAPPED

$30.99

$

In Stock, only 3 left!

0

10

Gravely 04516653

COVER, BOTTOM - VENTILATED

$

$

Not available

11

Gravely 04659700

SHEAVE, COMBO HYDRO WHEEL 4L

$

$

Not available

12

Gravely 05500937

BSHG-SLV .325X.400X.795

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05500938

BSHG, -- SPACER .47X1.25X.5

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 05900019

BLT-HEX .25-20X.75 HWH YWZC GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

15

Gravely 05900039

BLT-HEX .44-20X1.50 GR8 YWZC
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

16

Gravely 05947300

BLT-HEX .31-24X.75 GR5 YWZC
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

17

Gravely 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

19

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

20

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

23

Gravely 06610300

KEY, .25X.25X2.25

$3.49

$

In Stock, Qty 10

0

24

Gravely 06909400

CLAMP, J

$3.99

$

In Stock, only 2 left!

0

25

Gravely 07009000

NUT, RTNR .25-20 X .56

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07200601

V-BELT, HA-RAW EDGE

Note: (SET)

$59.99

$

In Stock, only 3 left!

0

28

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07400104

SCR, TAP .25-20X.50 LGHWH TR
(Superseded to 07400138)

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 07400108

SCR, TAP .25-20 X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

31

Gravely 08200546

ENGINE, SUBARU EX30 AS 12V

$

$

Not available

31

Gravely 21530400

SPARK PLUG

$

$

Not available
