926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Idler Arm Parts Diagram

36" Power Brush, Subaru, Hydro

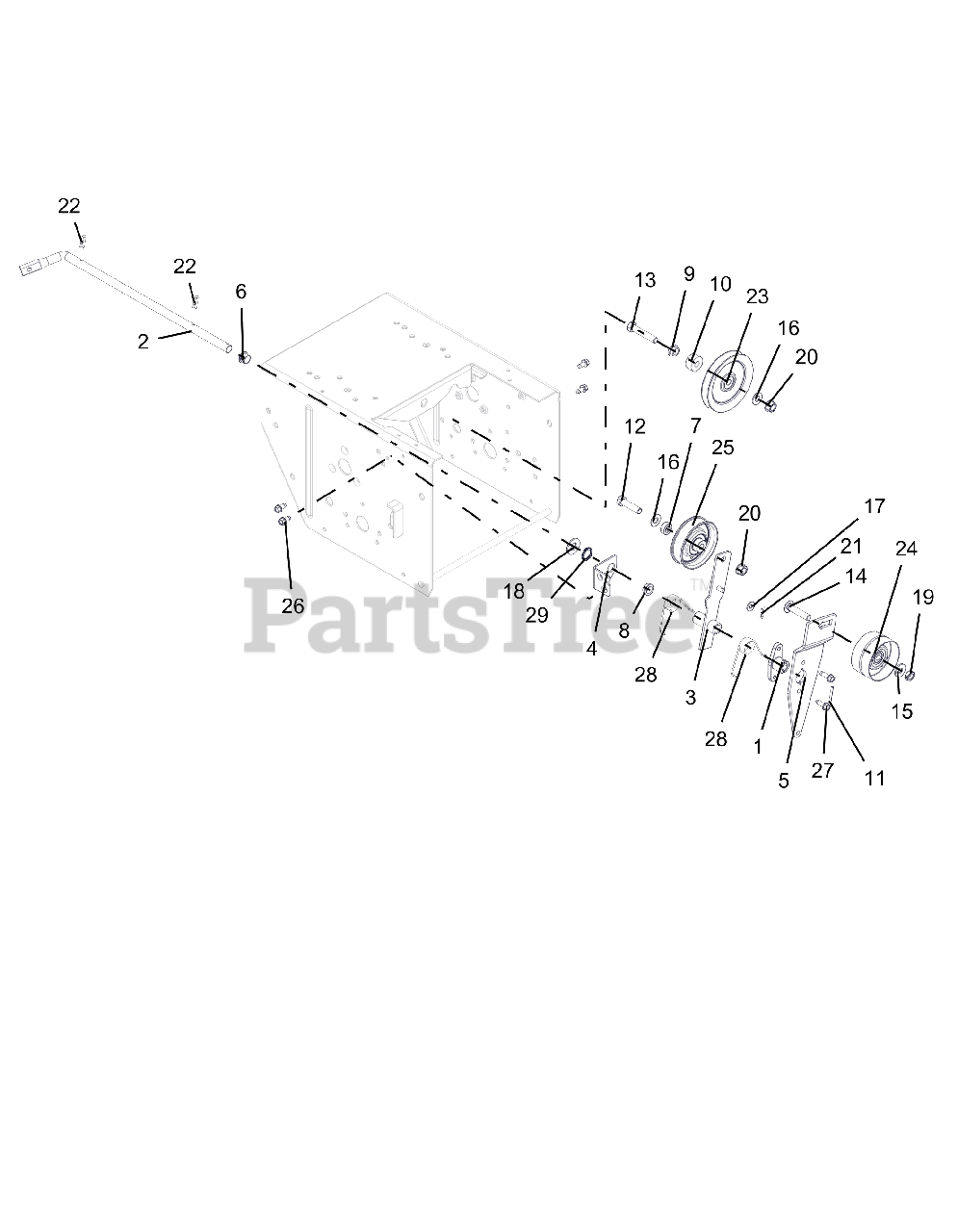

Idler Arm Parts Diagram

  • Title

1

Gravely 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, only 1 left!

0

2

Gravely 00384351

ARM, ATTACHMENT-BLACK
(Superseded to 00384300)

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 04424151

ARM, TRACTION CLUTCH

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 04511651

BRKT, SUPPORT
(Superseded to 04511600)

$3.49

$

In Stock, only 1 left!

0

5

Gravely 04712751

ARM, IDLER ATTACHMENT

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

7

Gravely 05501115

BSHG, FLG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05501119

BSHG, FLANGE .500 x .625 x .270 x .750

$3.99

$

In Stock, Qty 12

0

9

Gravely 05501122

BSHG, FLANGE .391x.56x.313x.75

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 05501123

BSHG, POCKET .391X.570X1.0X.450

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 05800900

PIN, ROLL .125 X 1.00

$0.99

$

In Stock, Qty 18

0

12

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 10

0

14

Gravely 06200111

BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

18

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

22

Gravely 06944800

CLIP, SPRING

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 07300528

SHEAVE, IDLER -V .38 x 4.00

$39.99

$

In Stock, only 3 left!

0

24

Gravely 07333500

IDLER, FLAT -2.75 OD X .375 ID

$22.99

$

In Stock, only 1 left!

0

25

Gravely 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, Qty 6

0

26

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07400111

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

28

Gravely 08300015

SPRG, TORSION

$2.49

$

In Stock, Qty 8

0

29

Gravely 08300534

WAVE, SPRING .600x.875x.25FH

$3.99

$

In Stock, Qty 8

0
