926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Reduction Drive Parts Diagram

36" Power Brush, Subaru, Hydro

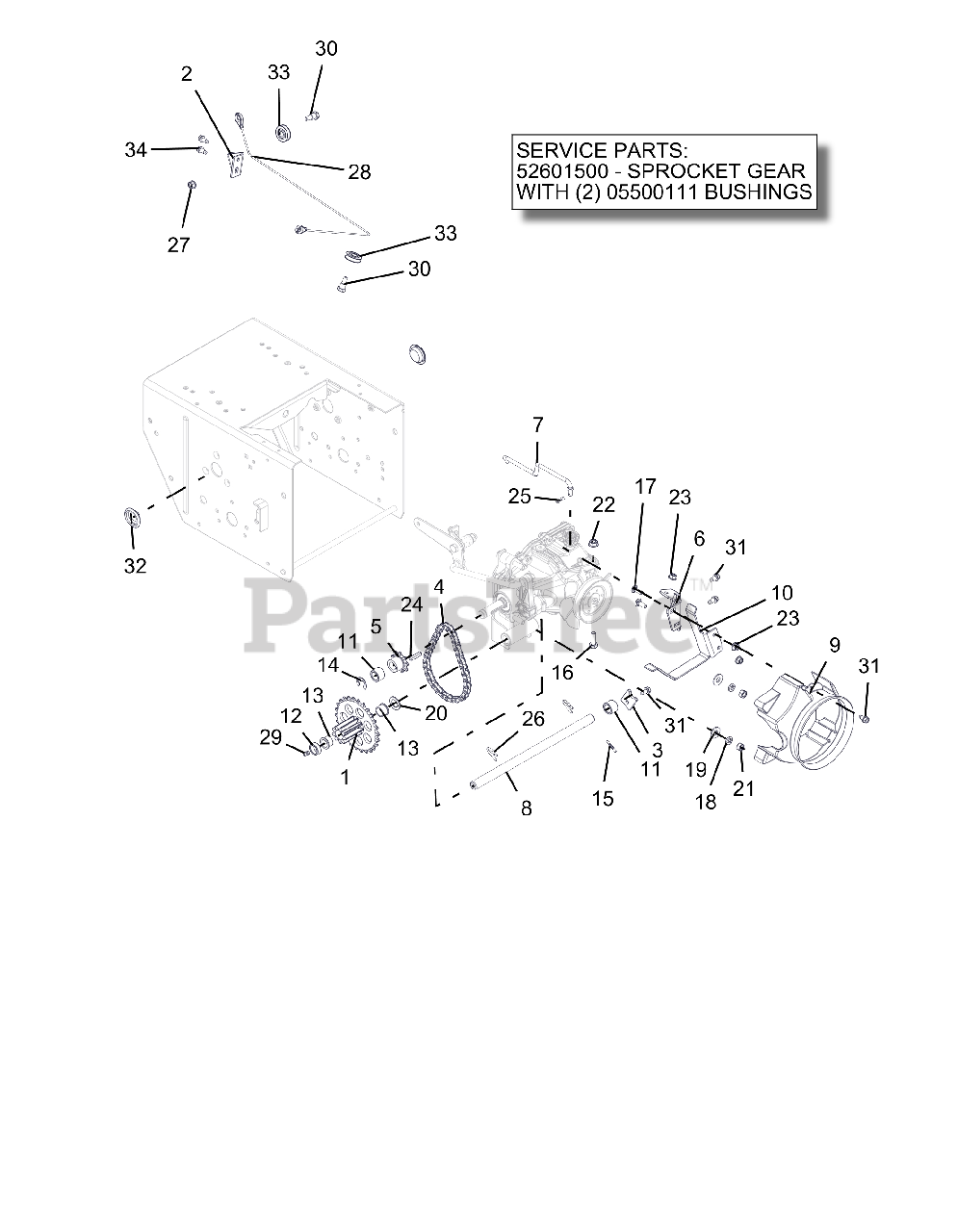

Reduction Drive Parts Diagram

  • Title

1

Gravely 00190600

PINION, SPROCKET

$

$

Not available

2

Gravely 00373051

BRKT, CABLE PULLEY

$20.99

$

Usually ships in 4-12 days

0

3

Gravely 00503500

TAB, ANTI - ROTATION

$4.99

$

In Stock, only 2 left!

0

4

Gravely 02466200

CHAIN, ROLLER - #41 w/32 PITCHES

$5.99

$

In Stock, Qty 15

0

5

Gravely 04375800

SPROCKET, PINION 9T, W/KEY
(Superseded to 09478200)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 04434351

BRKT, CLUTCH CABLE

$19.99

$

Usually ships in 4-12 days

0

7

Gravely 04437067

ROD, HYDRO DUMP
(Superseded to 09165100)

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 04511800

SHAFT, PINION

$42.99

$

In Stock, only 1 left!

0

9

Gravely 04513900

SHROUD, HYDROGEAR RT-310

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 04519951

FINGER, BELT - FLAT

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 05500029

SPCR, .635 X .880 X .611

$2.49

$

In Stock, Qty 9

0

12

Gravely 05500035

BSHG, SLV , .635X.880X.305

$3.99

$

In Stock, Qty 9

0

13

Gravely 05500111

BSHG, FLG .625 X .750 X .500 X .875

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05708300

RING, RETAINING-E .625X.042

$0.99

$

In Stock, only 4 left!

0

15

Gravely 05800205

PIN-GRV .125X1.00 TP E

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

17

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

20

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YWZC
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

22

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

24

Gravely 06601300

KEY-SQ .188X.188X1.00

$1.49

$

In Stock, Qty 5

0

25

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

26

Gravely 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

28

Gravely 06900527

CABLE, TRACTION , HYDRO PRO

$20.99

$

In Stock, only 1 left!

0

29

Gravely 07061300

ZERK, FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

30

Gravely 07000021

BOLT, SHLDR -.375 X .375 X .25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

31

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 07500231

PLUG, HOLE - 1.125"

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

34

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 52601500

SPROCKET GEAR

Note: SERVICE PART

$45.99

$

Usually ships in 4-12 days

0

35

Gravely 05500111

BUSHING

Note: SERVICE PART

$1.49

$

In Stock, Qty 20+

0
