926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Transmission Parts Diagram

36" Power Brush, Subaru, Hydro

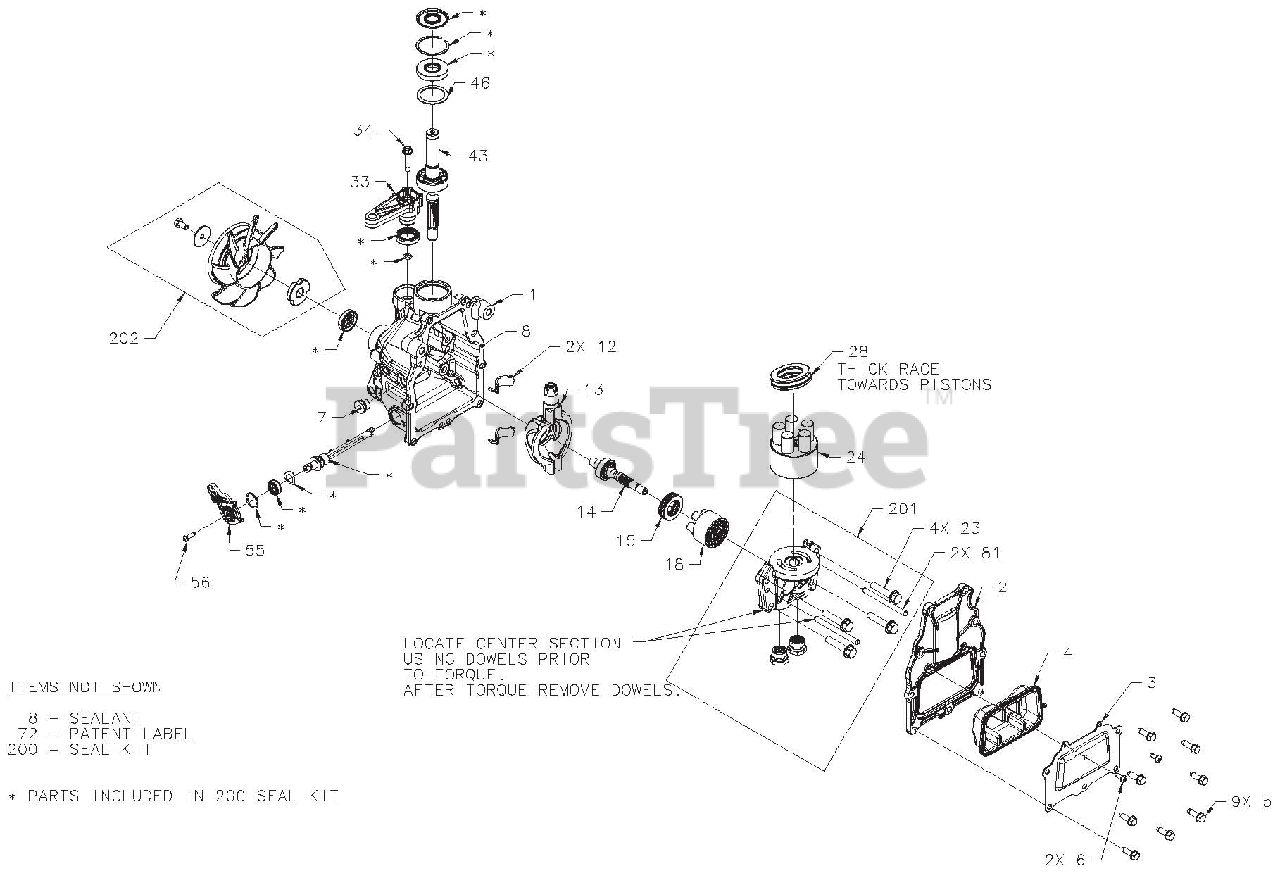

Transmission Parts Diagram

  • Title

1

Gravely 27104800

Housing Main, Shot

Note: Hydro-Gear P/N 54217

$146.99

$

Usually ships in 4-12 days

0

2

Gravely 27104900

Cover

Note: Hydro-Gear P/N 53934

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 27105000

Plate, Expansion

Note: Hydro-Gear P/N 53943

$10.99

$

Usually ships in 4-12 days

0

4

Gravely 27105100

Bladder

Note: Hydro-Gear P/N 53940

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 21543759

Screw, Hex Flange 1/4-20 x .75

Note: Hydro-Gear P/N 50752

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 21543751

Bolt, Self Tapping 10-32 x .5

Note: Hydro-Gear P/N 50653

$

$

Not available

7

Gravely 08613700

Plug, 9/16-18 Straight Thread Socket Head

Note: Hydro-Gear P/N 9005110-5600

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 21543771

Tube, Sealant

Note: Hydro-Gear P/N 50928

$116.99

$

In Stock, only 1 left!

0

12

Gravely 27105200

Bearing, Cradle

Note: Hydro-Gear P/N 54229

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 27105300

Swash Plate

Note: Hydro-Gear P/N 53912

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 27105400

Kit, Input Shaft

Note: Hydro-Gear P/N 72334

$52.99

$

Usually ships in 4-12 days

0

15

Gravely 27105500

Bearing, 21 x 35 x 10

Note: Hydro-Gear P/N 53894

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 27105600

Kit, 3cc Block

Note: Hydro-Gear P/N 72335

$50.94

$

Usually ships in 4-12 days

0

23

Gravely 27105700

Screw, HFHCS 5/16-18 x 1.5

Note: Hydro-Gear P/N 53256

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 21543889

Kit, 10cc Block

Note: Hydro-Gear P/N 70331

$101.99

$

Usually ships in 4-12 days

0

28

Gravely 08609100

Bearing, Thrust 30 x 52 x 13

Note: Hydro-Gear P/N 50551

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 27105800

Arm, Control

Note: Hydro-Gear P/N 54190

$41.99

$

Usually ships in 4-12 days

0

34

Gravely 27105900

Screw, Hex Washer 1/4-20 x 1.125

Note: Hydro-Gear P/N 53246

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 27106000

Kit, Motor Shaft

Note: Hydro-Gear P/N 72336

$94.99

$

Usually ships in 4-12 days

0

46

Gravely 21543773

Washer, Flat 1.23 x 1.57 x .04

Note: Hydro-Gear P/N 50951

$5.99

$

Usually ships in 4-12 days

0

55

Gravely 27106100

Arm, Bypass

Note: Hydro-Gear P/N 54090

$4.49

$

Usually ships in 4-12 days

0

56

Gravely 27106200

Screw, M4 x 16, Wuplast

Note: Hydro-Gear P/N 54051

$3.99

$

Usually ships in 4-12 days

0

62

Gravely 27106300

Hub, Pulley Dia 1.41

Note: Hydro-Gear P/N 53949

$1.99

$

Usually ships in 4-12 days

0

72

Gravely N/A

Label, Patent

Note: Hydro-Gear P/N 54187

$

$

Currently unavailable

81

Gravely 27106400

Pin, Straight Headless

Note: Hydro-Gear P/N 9004820-2536

$6.99

$

Usually ships in 4-12 days

0

200

Gravely 27106500

Kit, Seal

Note: Hydro-Gear P/N 72337

$77.99

$

Usually ships in 4-12 days

0

201

Gravely 27106600

Kit, Center Section

Note: Hydro-Gear P/N 72338

$110.99

$

Usually ships in 4-12 days

0

202

Gravely 52611600

Kit, Fan/Pulley

Note: Hydro-Gear P/N 72339

$38.99

$

Usually ships in 4-12 days

0
