926062 - Ariens 36" Power Brush, Subaru (SN: 002000 & Above) Engine And Frame Parts Diagram

36" Power Brush, Subaru

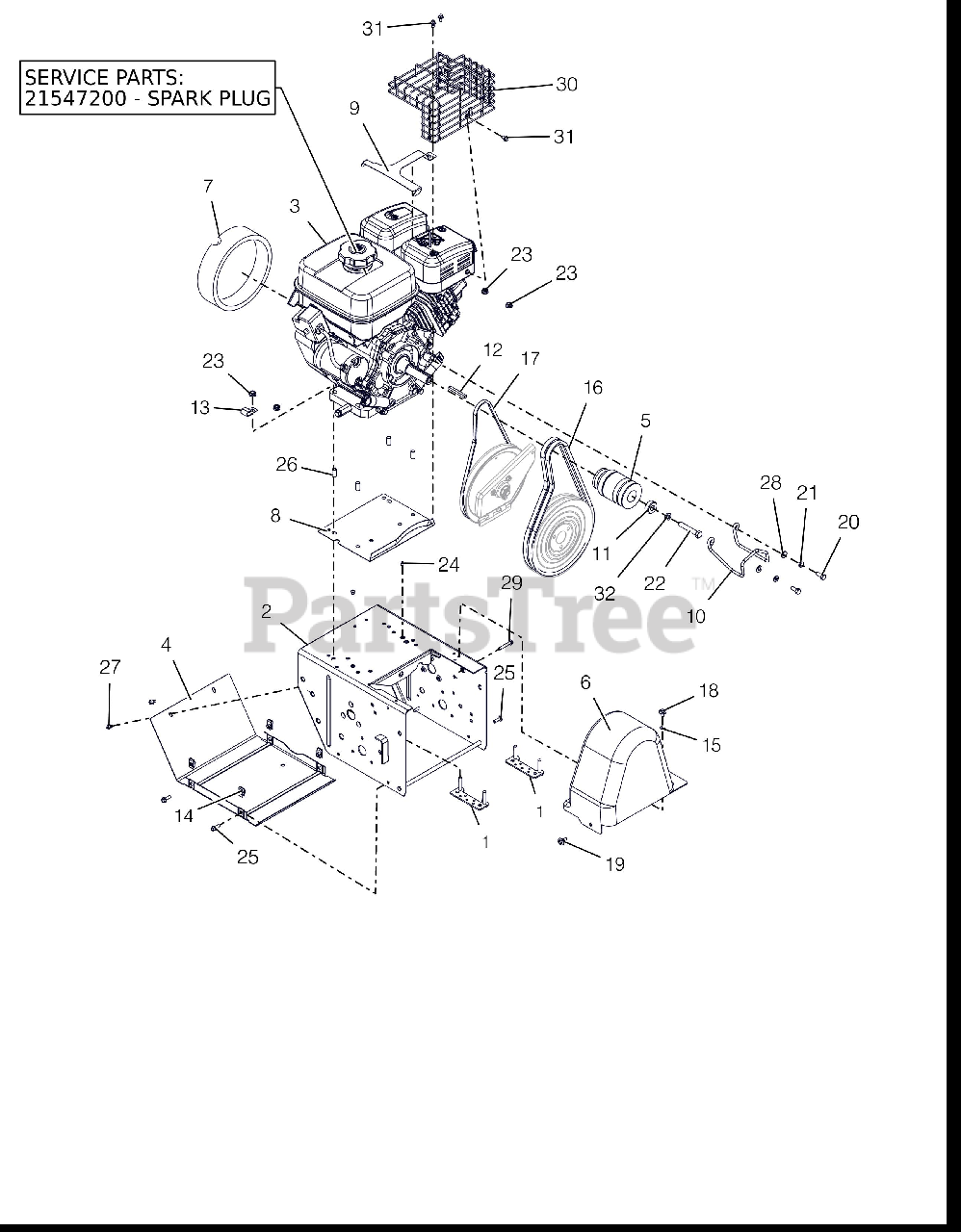

Engine And Frame Parts Diagram

  • Title

1

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$17.99

$

Usually ships in 4-12 days

0

2

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$198.99

$

Usually ships in 4-12 days

0

3

Ariens 08200519

ENGINE,SUBARU EX27 AS 120V

$

$

Not available

3

Ariens 21547200

PLUG, SPARK SUBARU

Note: SERVICE PART

$3.99

$

In Stock, Qty 13

0

4

Ariens 00375159

COVER, BOTTOM

$84.99

$

Usually ships in 4-12 days

0

5

Ariens 03846500

SHEAVE, SUBARU EX27

$171.99

$

Usually ships in 4-12 days

0

6

Ariens 03965700

COVER, BELT-TALL PRO

$159.99

$

Usually ships in 4-12 days

0

7

Ariens 03972500

FOAM COVER, RECOIL-SUBARU

$36.99

$

Usually ships in 4-12 days

0

8

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 03981151

GUARD, SNOW-SUBARU

$63.99

$

Usually ships in 4-12 days

0

10

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$26.99

$

In Stock, only 2 left!

0

11

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 06610300

KEY .25X.25X2.25

$3.49

$

In Stock, Qty 10

0

13

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 6

0

16

Ariens 07200601

V-BELT, HA-RAW EDGE (SET)

$59.99

$

In Stock, only 3 left!

0

17

Ariens 07231000

V-BELT, 3L-RAW EDGE

$28.99

$

In Stock, only 2 left!

0

18

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

20

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

22

Ariens 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

23

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

25

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

26

Ariens 05500937

BSHG-SLV .325X.400X.795

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$2.49

$

Usually ships in 4-12 days

0

30

Ariens 04332500

MUFFLER GUARD, SUB EX270JO930

$104.99

$

Usually ships in 4-12 days

0

31

Ariens 07001736

BLT-SERHFWH M6X1.0X12 8.8 CZ

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0
