926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 000999) Electrical Parts Diagram

36" Power Brush, Subaru, Hydro

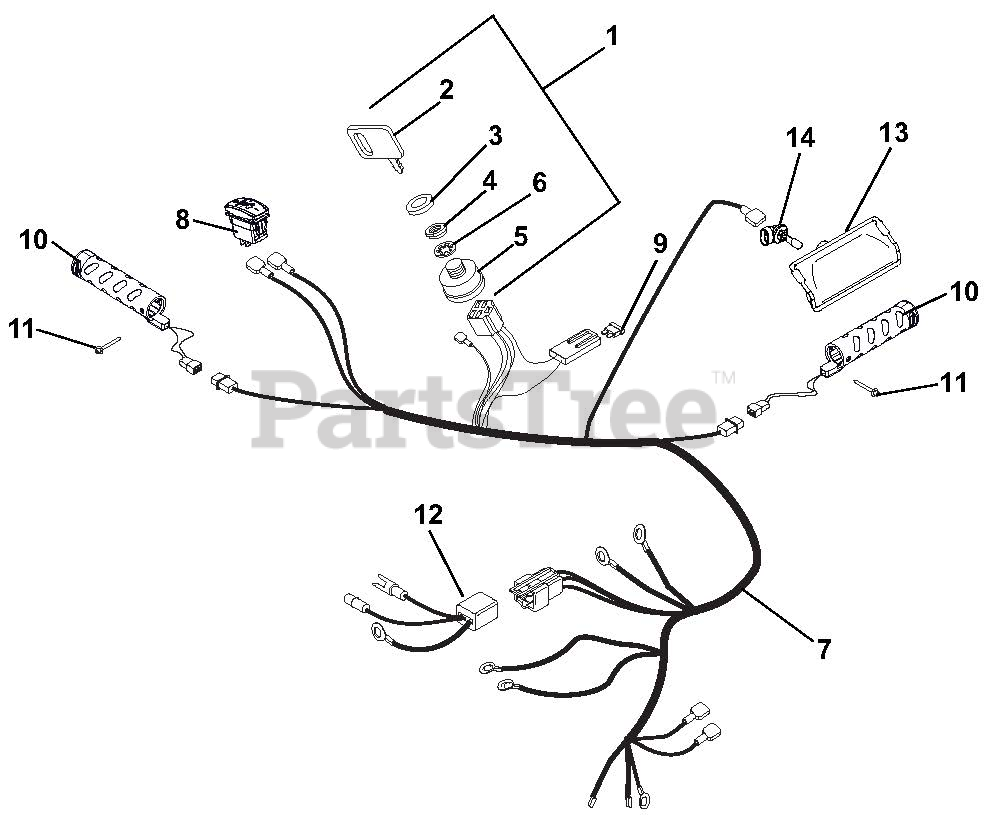

Electrical Parts Diagram

  • Title

1

Gravely 52709300

SWITCH ASSEMBLY

Note: (Includes Items 2 - 6)

$58.99

$

In Stock, only 2 left!

0

2

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

3

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 18

0

4

Gravely 06517300

NUT-PANEL .625-32 GRECO

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$58.99

$

In Stock, only 2 left!

0

6

Gravely 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 04715800

HARNESS,BRUSH-LT,HW,12V

$111.99

$

Usually ships in 4-12 days

0

8

Gravely 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$21.99

$

In Stock, only 2 left!

0

9

Gravely 00524700

FUSE, 15 AMP.

$

$

Not available

10

Gravely 07500337

GRIP,HEATED HANDLE-GRAY
(Superseded to 07500514)

Note: (Recommend Loctite E90-FL Epoxy for Installation)

$49.99

$

In Stock, only 1 left!

0

11

Gravely 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 03972400

HARNESS ADAPTER, SUBARU

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 04812400

HEADLIGHT ASY, HOLO 15W 2 SHOT

Note: (Includes item 17)

$46.99

$

Usually ships in 4-12 days

0

14

Gravely 04676800

BULB, LIGHT-HALOGEN 15 WATT

Note: (Included with item 16)

$13.99

$

Usually ships in 4-12 days

0
