926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 000999) Engine And Frame Parts Diagram

36" Power Brush, Subaru, Hydro

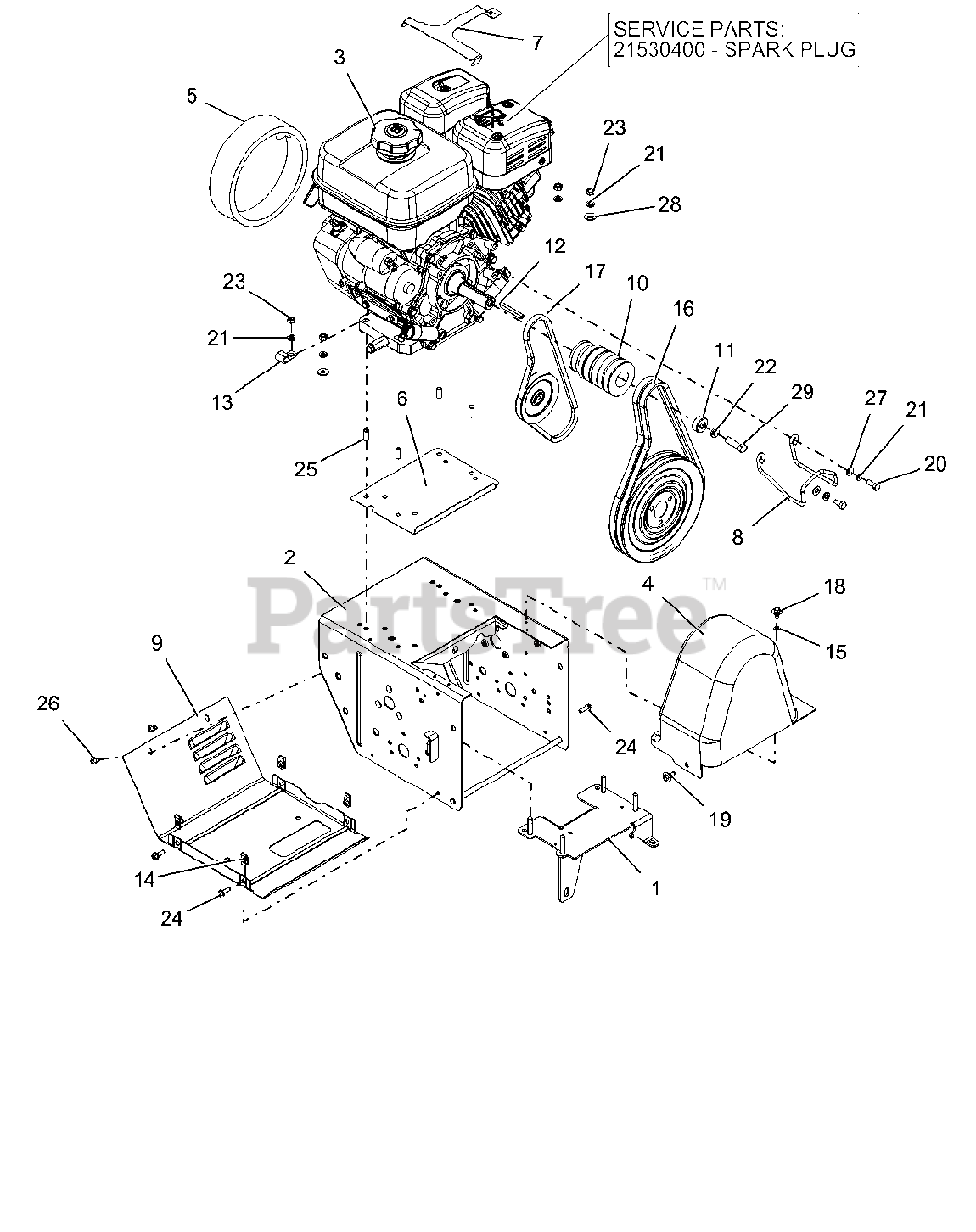

Engine And Frame Parts Diagram

  • Title

1

Gravely 04451300

BRKT, HYDRO TRANS LG

$31.99

$

Usually ships in 4-12 days

0

2

Gravely 04964153

FRAME, MAIN - PRO SNOW

$187.99

$

Usually ships in 4-12 days

0

3

Gravely 21530400

PLUG, SPARK - TEC. SNO-THRO

Note: SERVICE PART

$

$

Not available

3

Gravely 08200546

ENGINE,SUBARU EX30 AS 12V

$

$

Not available

4

Gravely 03965700

COVER, BELT-TALL PRO

$159.99

$

Usually ships in 4-12 days

0

5

Gravely 03972500

FOAM COVER, RECOIL-SUBARU

$36.99

$

Usually ships in 4-12 days

0

6

Gravely 03980051

BAFFLE, WATER-PRO SERIES

$46.99

$

Usually ships in 4-12 days

0

7

Gravely 03981151

GUARD, SNOW-SUBARU

$63.99

$

Usually ships in 4-12 days

0

8

Gravely 04509700

FINGER, BELT
(Superseded to 05273300)

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 04516653

COVER, BOTTOM - VENTILATED

$

$

Not available

10

Gravely 04659700

SHEAVE, COMBO HYDRO BRUSH

$

$

Not available

11

Gravely 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 06610300

KEY .25X.25X2.25

$3.49

$

In Stock, Qty 10

0

13

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

14

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 6

0

16

Gravely 07200601

V-BELT, HA-RAW EDGE (SET)

$59.99

$

In Stock, only 3 left!

0

17

Gravely 07200631

V-BELT, 4L-WRAPPED

$30.99

$

In Stock, only 3 left!

0

18

Gravely 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

In Stock, only 2 left!

0

19

Gravely 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

20

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 3 left!

0

21

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

22

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 6

0

23

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

24

Gravely 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 19

0

25

Gravely 05500937

BSHG-SLV .325X.400X.795

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0
