926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 002000 & Above) Brush Head Parts Diagram

36" Power Brush, Subaru, Hydro

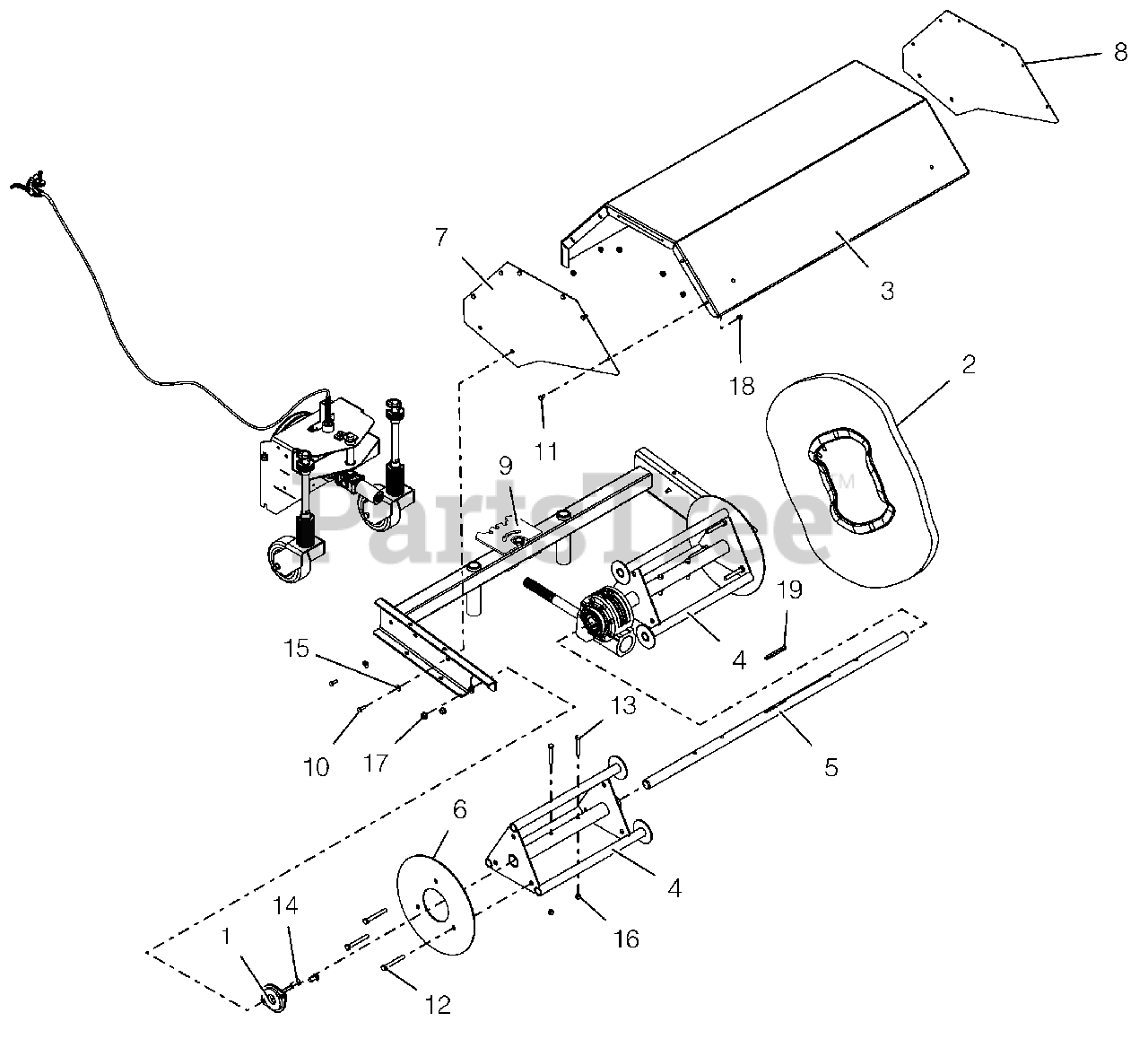

Brush Head Parts Diagram

  • Title

1

Gravely 03733900

BEARING,2 BOLT FLANGE 1-1/8 ID

$76.99

$

Usually ships in 4-12 days

0

2

Gravely 72602600

KIT, BRISTLE - SET OF 18

$407.99

$

In Stock, only 1 left!

0

3

Gravely 52614200

COVER,TOP-36" BRUSH W/DECALS

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 52612900

PB36 DRIVE CORE SERVICE KIT

$382.99

$

Usually ships in 4-12 days

0

5

Gravely 04594500

CENTER, SHAFT

$133.99

$

Usually ships in 4-12 days

0

6

Gravely 04594651

PLATE, END RETAINER

$32.99

$

Usually ships in 4-12 days

0

7

Gravely 04682053

WLDT, SIDE COVER - RH

$

$

Not available

8

Gravely 04682153

WLDT, SIDE COVER - LH

$

$

Not available

9

Gravely 04844951

FRAME, POWER BROOM 36"

$290.99

$

Usually ships in 4-12 days

0

10

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

12

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 15

0

13

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

15

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0
