926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 002000 & Above) Dash Parts Diagram

36" Power Brush, Subaru, Hydro

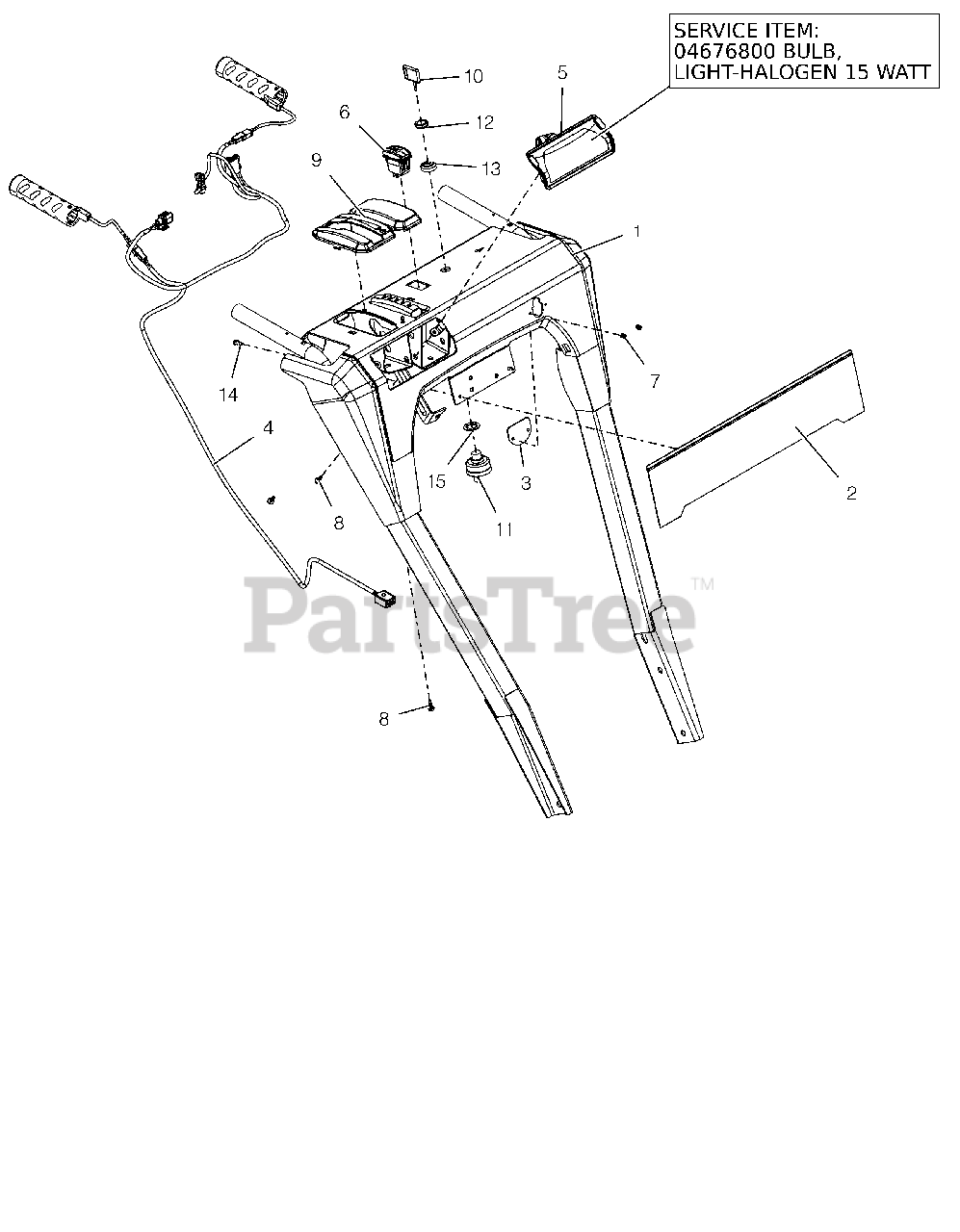

Dash Parts Diagram

  • Title

1

Gravely 52615000

PANEL, DASH - W/CTR DECAL(12V)

$166.99

$

Usually ships in 4-12 days

0

2

Gravely 04964251

WLDMT, BRAND PLATE

$100.99

$

Usually ships in 4-12 days

0

3

Gravely 04792351

COVER, DASH BRKT, BRUSH

$

$

Not available

4

Gravely 04974000

HARNESS,ELEC - HANDLEBAR 12V

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 04812400

HEADLIGHT ASY, HOLO 15W 2 SHOT

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 04676800

BULB, LIGHT-HALOGEN 15 WATT

Note: SERVICE PART

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06800038

RVT-POP #43 .125X.313 STL ZINC

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 04824700

BEZEL, SHIFT - HYDRO BRUSH

$18.99

$

Usually ships in 4-12 days

0

10

Gravely 02460700

KEY -W/CAP

$11.99

$

In Stock, Qty 16

0

11

Gravely 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$60.99

$

In Stock, only 2 left!

0

12

Gravely 06517300

NUT-PANEL .625-32 GRECO

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 07517700

CAP - IGNITION SWITCH

$4.99

$

In Stock, Qty 10

0

14

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$5.99

$

Usually ships in 4-12 days

0
