926067 (ST 28 DLET) - Ariens Hydro Pro 28" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Track Axles Parts Diagram

Hydro Pro 28" Track Snow Blower, Briggs & Stratton

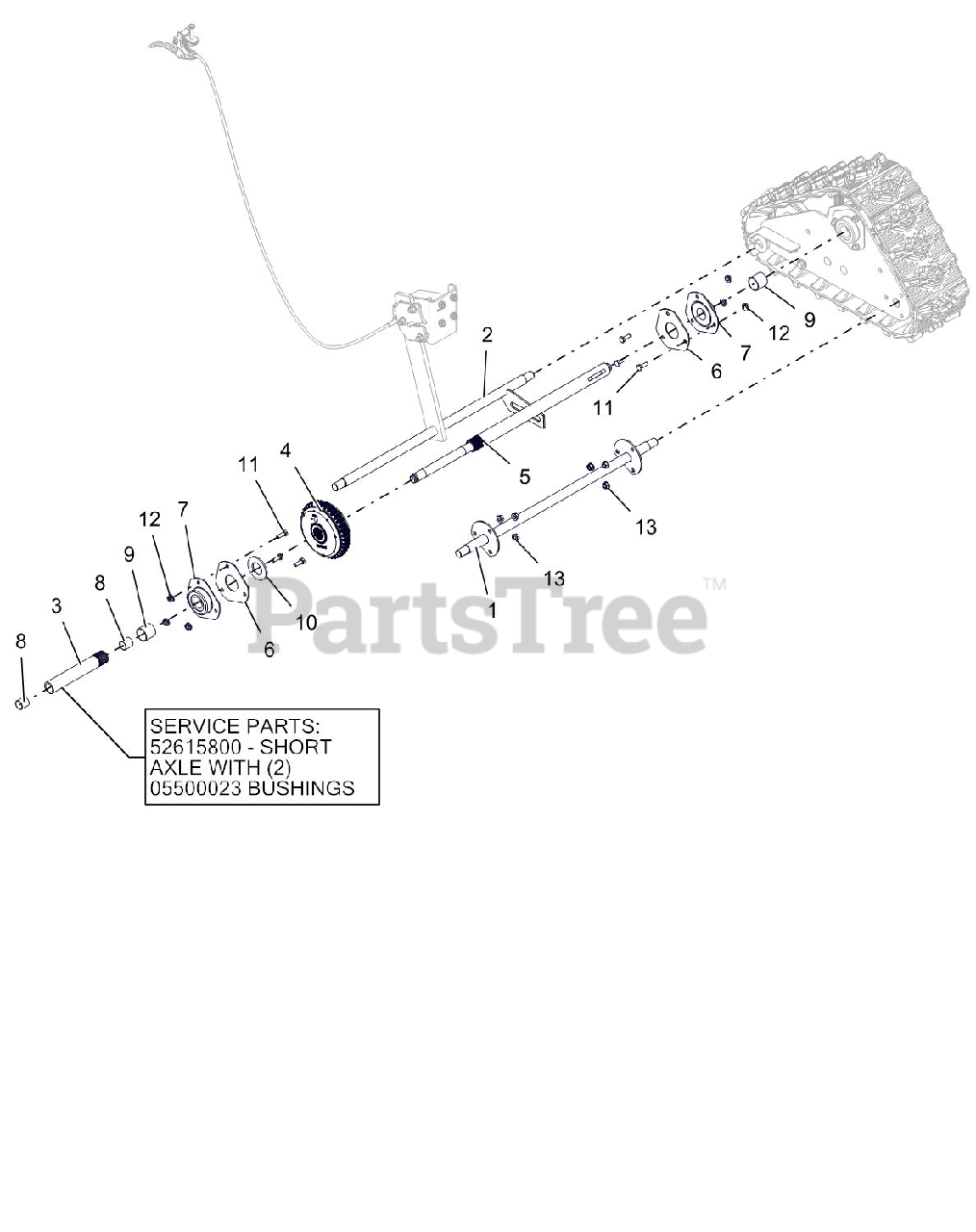

Track Axles Parts Diagram

  • Title

1

Ariens 03376000

AXLE, FRONT - PRO

$118.99

$

Usually ships in 4-12 days

0

2

Ariens 03376100

AXLE, REAR - PRO TRACK

$72.99

$

Usually ships in 4-12 days

0

3

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

3

Ariens 03996200

AXLE, SHORT-TRACK DIFFERENTIAL

$

$

Not available

3

Ariens 52615800

AXLE, SHORT-W/BUSHINGS

Note: SERVICE PART

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

5

Ariens 03996100

AXLE, LONG-TRACK DIFFERENTIAL

$104.99

$

Usually ships in 4-12 days

0

6

Ariens 04796351

PLATE, BEARING SPACER

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 7

0

8

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

10

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0
