926069 (ST 32 DLET) - Ariens Hydro Pro 32" Track Snow Blower, Briggs & Stratton (SN: 000101 - 001499) Brake and Idlers Parts Diagram

Hydro Pro 32" Track Snow Blower, Briggs & Stratton

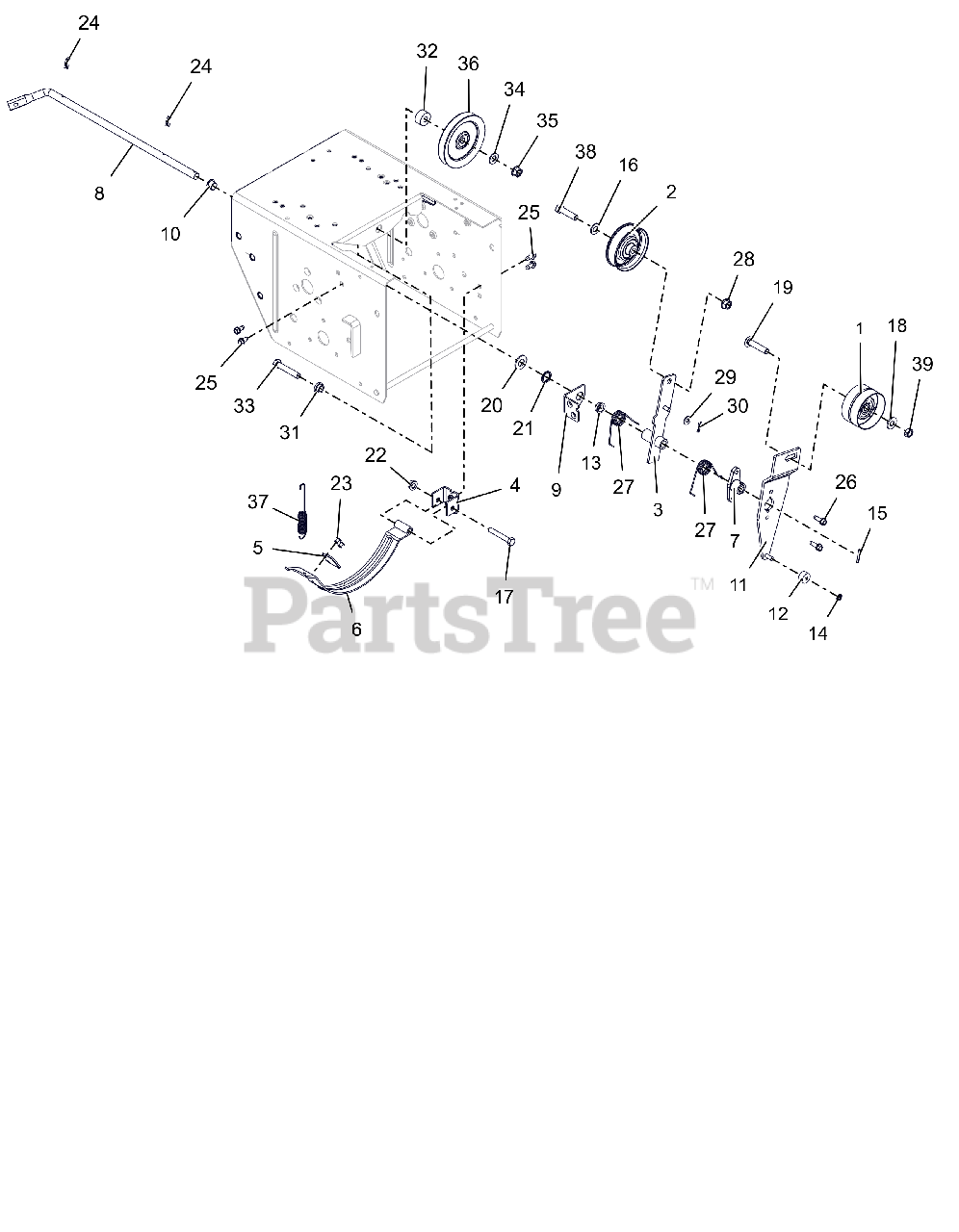

Brake and Idlers Parts Diagram

  • Title

1

Ariens 07333500

IDLER, FLAT-2.75 OD X .375 ID

$25.99

$

In Stock, only 2 left!

0

2

Ariens 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$23.99

$

In Stock, only 2 left!

0

3

Ariens 04424151

ARM, TRACTION CLUTCH

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, only 2 left!

0

6

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

In Stock, only 2 left!

0

7

Ariens 00384200

HUB, BRAKE ARM

$6.49

$

In Stock, only 2 left!

0

8

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, only 2 left!

0

9

Ariens 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.99

$

In Stock, Qty 15

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

11

Ariens 02954400

ARM, IDLER-ATTACHMENT

$79.99

$

Usually ships in 4-12 days

0

12

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, only 2 left!

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 5

0

15

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

16

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

18

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, Qty 8

0

20

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

21

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 10

0

22

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

24

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

25

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

27

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 5

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

30

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

31

Ariens 05501122

BSHG, FLANGE .391X.56X.313X.75

$7.49

$

Usually ships in 4-12 days

0

32

Ariens 05501123

BSHG,POCKET .391X.570X1.0X.450

$12.99

$

Usually ships in 4-12 days

0

33

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

34

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$40.99

$

In Stock, only 2 left!

0

37

Ariens 08300017

SG-TENS .056X.60X4.40

$6.49

$

In Stock, Qty 13

0

38

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

39

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
