926070 (ST 36 DLE) - Ariens Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI (SN: 020000 & Above) Housing - 36" Parts Diagram

Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI

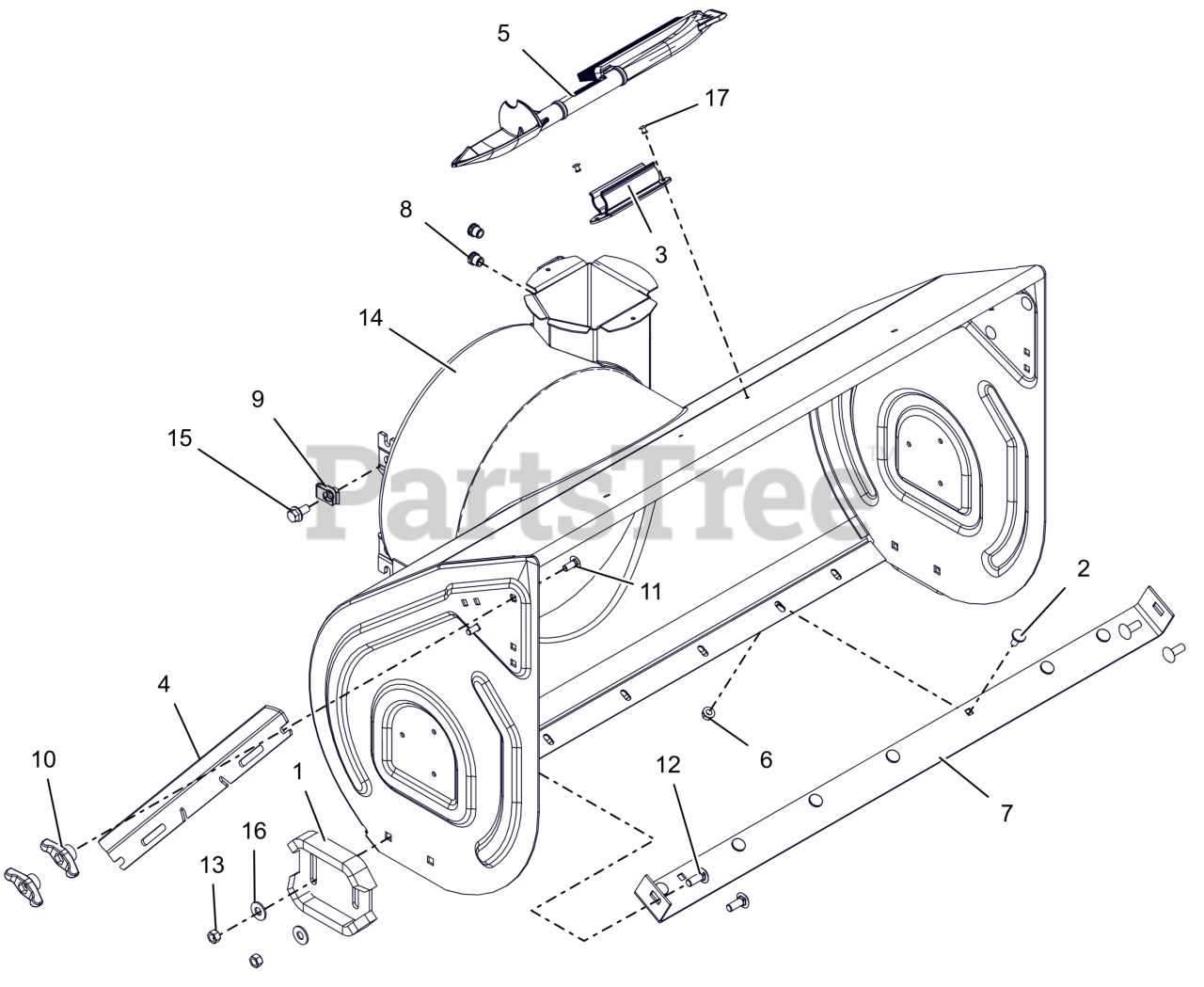

Housing - 36" Parts Diagram

  • Title

1

Ariens 04148959

RUNNER, SKID SHOE

$64.99

$

In Stock, Qty 12

0

2

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$2.49

$

In Stock, Qty 20+

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$13.99

$

In Stock, Qty 5

0

4

Ariens 00262159

CUTTER, DRIFT

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$37.99

$

In Stock, only 2 left!

0

6

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 04181659

BLADE, SCRAPER-36"

$56.99

$

In Stock, only 2 left!

0

8

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$3.49

$

In Stock, only 2 left!

0

9

Ariens 07053300

NUT-RTNR .375-16X.37

$4.99

$

In Stock, only 2 left!

0

10

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$4.99

$

In Stock, Qty 20+

0

11

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

12

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.99

$

In Stock, Qty 20+

0

14

Ariens 52608200

BLOWER HOUSING W/DECAL 36"
(Superseded to 52617500)

$735.99

$

Usually ships in 4-12 days

0

15

Ariens 07001824

BLT

$3.49

$

In Stock, Qty 20+

0

16

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06800140

RVT, POP .1875 ZCC

$2.49

$

In Stock, Qty 20+

0
