926072 (ST 36 DLE) - Ariens Hydro Pro 36" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Housing - 36" Parts Diagram

Hydro Pro 36" Snow Blower, Briggs & Stratton

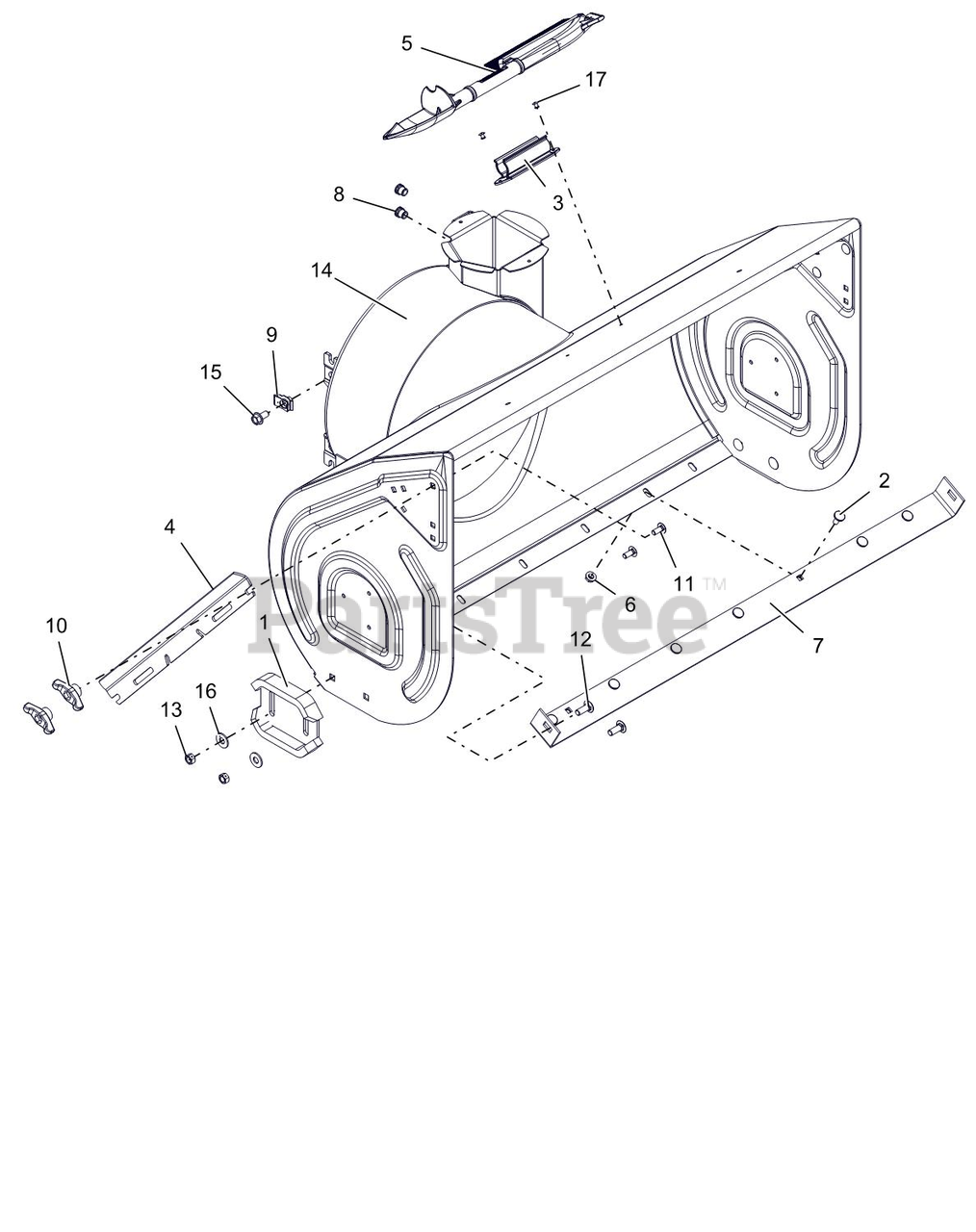

Housing - 36" Parts Diagram

  • Title

1

Ariens 04148959

RUNNER, SKID SHOE

$60.99

$

In Stock, Qty 16

0

2

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

4

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$35.99

$

In Stock, only 2 left!

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 04181659

BLADE, SCRAPER-36"

$52.99

$

In Stock, only 4 left!

0

8

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

10

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

11

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 52608200

BLOWER HOUSING W/DECAL 36"
(Superseded to 52617500)

$672.99

$

Usually ships in 4-12 days

0

15

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

16

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0
