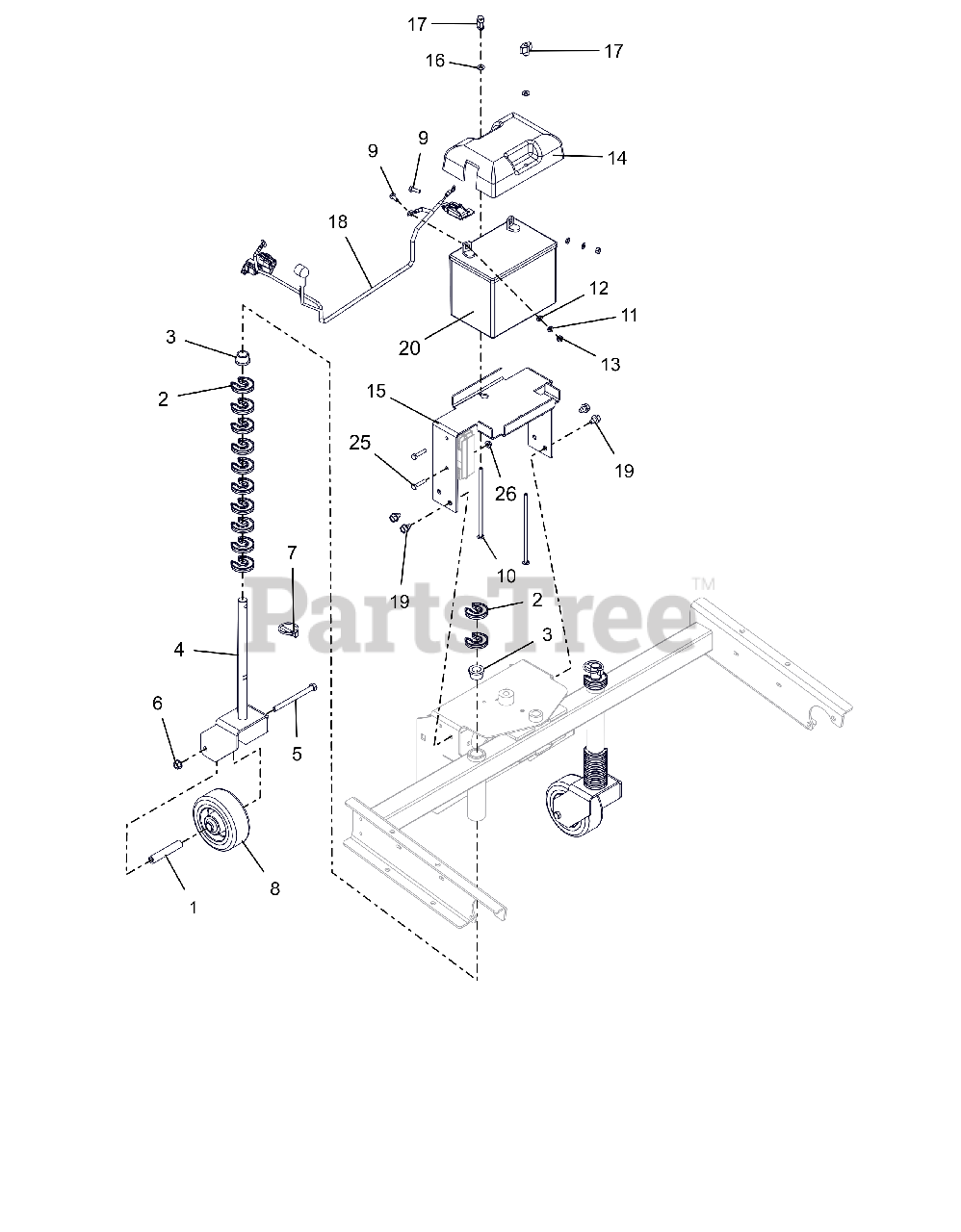

926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Brush Wheels and Battery Parts Diagram

Hydro 36" Power Brush, Kohler

Brush Wheels and Battery Parts Diagram

  • Title

1

Ariens 00188000

SPACER, CASTER WHEEL

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 03265100

CLIP-HOC FIXED

$3.99

$

In Stock, Qty 20+

0

3

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 5

0

4

Ariens 04848751

FORK, CASTER

$72.99

$

Usually ships in 4-12 days

0

5

Ariens 05901938

BLT, HEX 0.375-16X4.5 GR5 ZCC

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700004

PIN, 1/4X1-9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 20+

0

8

Ariens 07101101

WHEEL, CASTER - 5"OD

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200229

BLT,RHSN .25-20X7.00 G2 ZCC

$5.49

$

In Stock, Qty 12

0

11

Ariens 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06401120

WSHR,FLT .265X.500X.087 ZCC

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, Qty 8

0

15

Ariens 04655651

TRAY, BATTERY - POWER BRUSH

$65.99

$

Usually ships in 4-12 days

0

16

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05161100

HARNESS, ELECTRIC 12V BRUSH

$98.99

$

Usually ships in 4-12 days

0

19

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

20

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

25

Ariens 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$2.49

$

In Stock, only 4 left!

0

26

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 20+

0
