926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Engine and Frame Parts Diagram

Hydro 36" Power Brush, Kohler

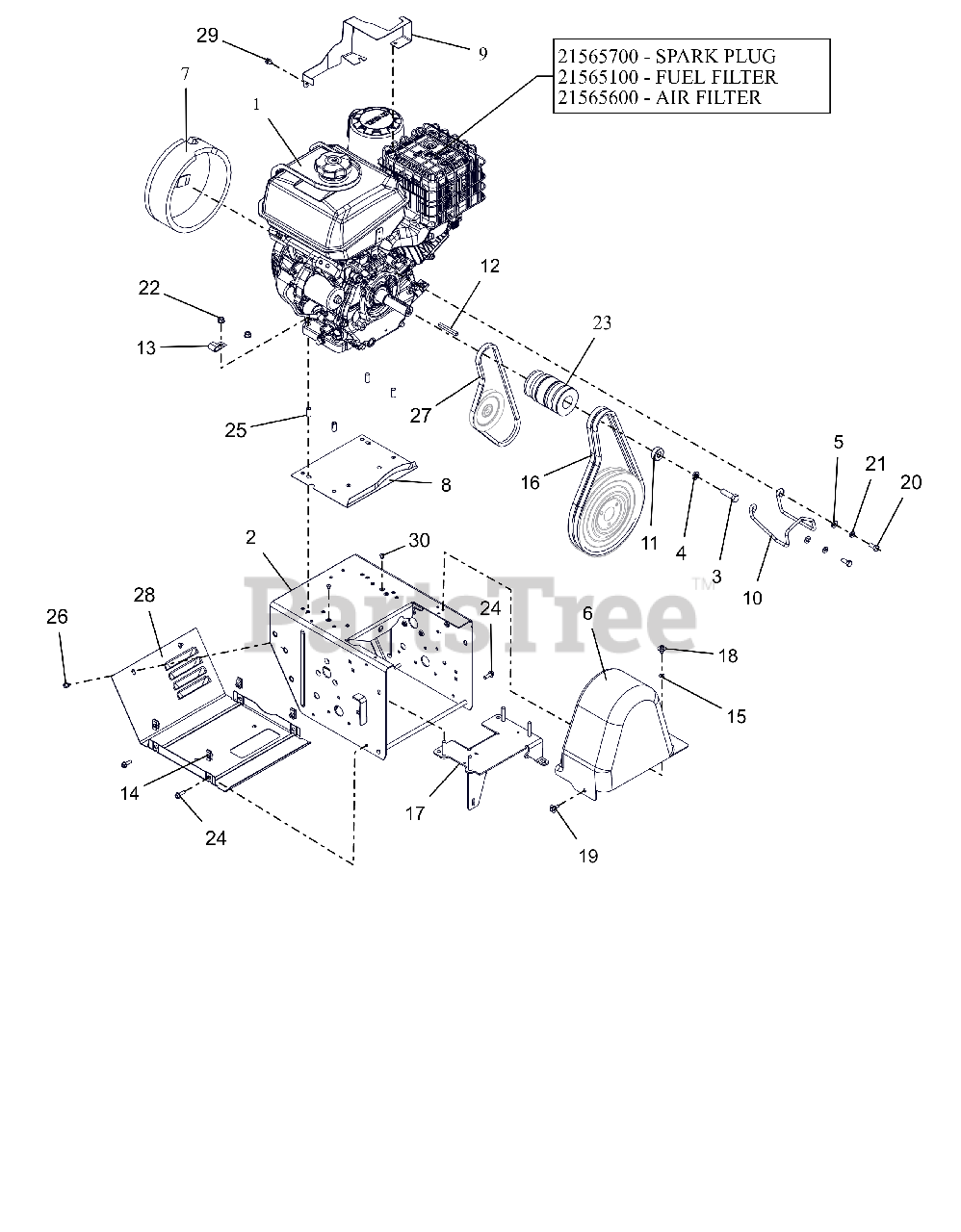

Engine and Frame Parts Diagram

  • Title

1

Ariens 08201315

ENGINE, KOHLER - CH395 12V

$

$

Currently unavailable

1

Ariens 21565700

PLUG,SPARK - KOHLER CH395/440

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

1

Ariens 21565100

FILTER, FUEL (IN TANK)

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0

1

Ariens 21565600

FILTER,AIR - KOHLER CH395/440

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$198.99

$

Usually ships in 4-12 days

0

3

Ariens 05902004

BLT, HEX .44-20X1.50 G5ZCCEP80

$6.49

$

Usually ships in 4-12 days

0

4

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03965700

COVER, BELT-TALL PRO

$159.99

$

Usually ships in 4-12 days

0

7

Ariens 05173700

COVER, RECOIL - KOHLER CH395

$46.99

$

Usually ships in 4-12 days

0

8

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 05173851

BRKT, ENGINE - KOHLER CH395

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$26.99

$

In Stock, only 2 left!

0

11

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 06610300

KEY .25X.25X2.25

$3.49

$

In Stock, Qty 8

0

13

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 14

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 6

0

16

Ariens 07200601

V-BELT, HA-RAW EDGE (SET)

$59.99

$

In Stock, only 3 left!

0

17

Ariens 04451300

BRKT, HYDRO TRANS LG

$31.99

$

Usually ships in 4-12 days

0

18

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.99

$

In Stock, only 2 left!

0

19

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

20

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.99

$

In Stock, Qty 5

0

21

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 5

0

22

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05171900

SHEAVE, COMBO HYDRO WHEEL

$70.99

$

Usually ships in 4-12 days

0

24

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 5

0

25

Ariens 05500937

BSHG-SLV .325X.400X.795

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07200631

V-BELT, 4L-WRAPPED

$30.99

$

In Stock, only 3 left!

0

28

Ariens 04516659

COVER, BOTTOM - VENTILATED

$44.99

$

Usually ships in 4-12 days

0

29

Ariens 05901915

BLT, HEX M6-1.0X10 G10.9 ZCC

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0
