926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Reduction Drive Parts Diagram

Hydro 36" Power Brush, Kohler

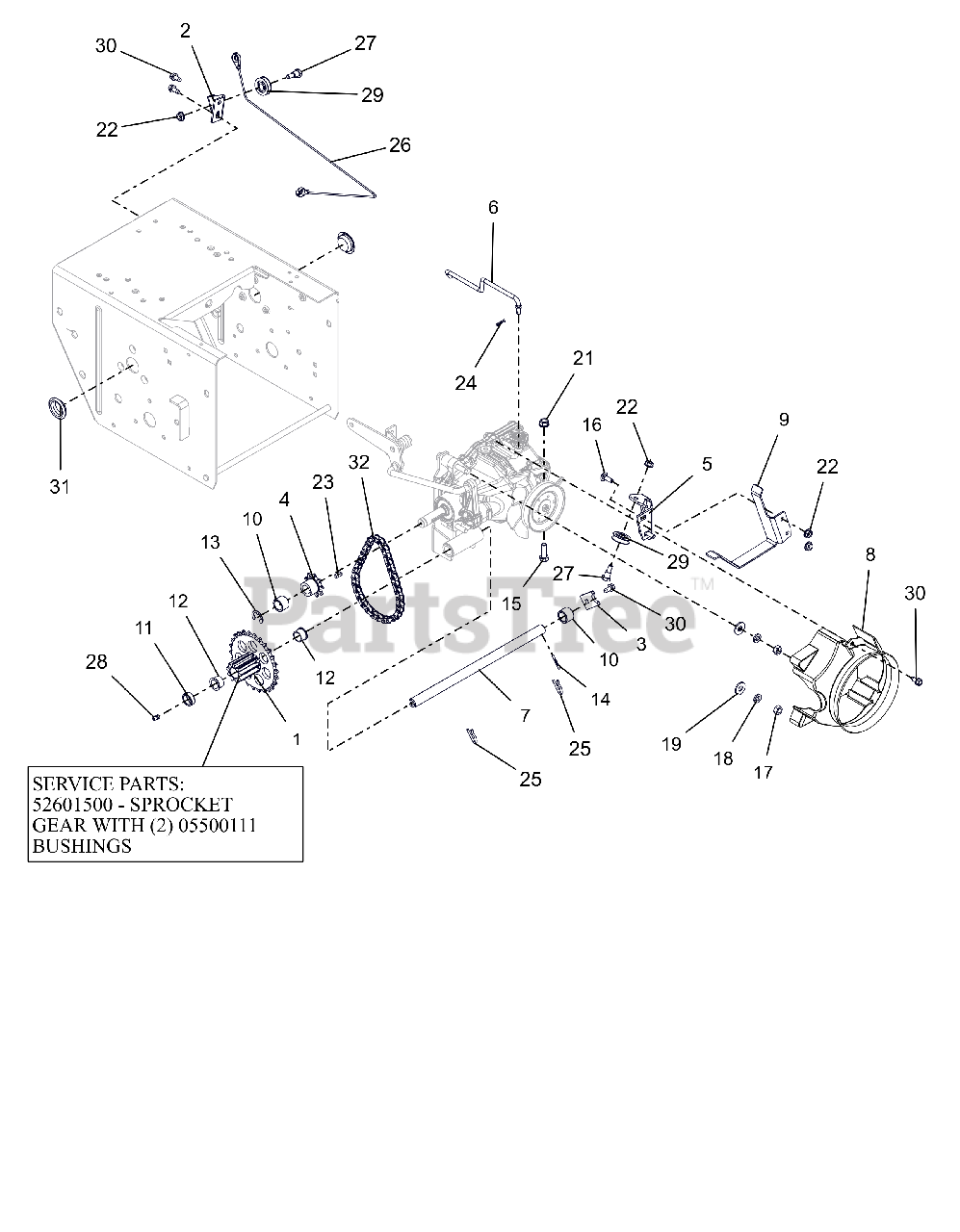

Reduction Drive Parts Diagram

  • Title

1

Ariens 00190600

PINION & SPROCKET

$

$

Not available

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$46.99

$

In Stock, only 2 left!

0

2

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

3

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

4

Ariens 04375800

SPROCKET, PINION 9T W/KEY
(Superseded to 09478200)

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 04434351

BRACKET, CLUTCH CABLE

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 04437067

ROD, HYDRO BYPASS
(Superseded to 09165100)

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 04511800

SHAFT, PINION - HARDENED

$43.99

$

In Stock, only 2 left!

0

8

Ariens 04513900

SHROUD, HYDROGEAR RT-310

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 04519951

FINGER, BELT - FLAT

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

11

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

12

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

13

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 6

0

14

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

16

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 7

0

17

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.49

$

In Stock, Qty 9

0

18

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, only 3 left!

0

19

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

21

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 11

0

23

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

24

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 5

0

25

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

26

Ariens 06900527

CABLE, TRACTION, HYDRO PRO

$22.99

$

In Stock, only 2 left!

0

27

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

28

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

29

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

30

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

31

Ariens 07500231

PLUG, HOLE - 1.125"

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 2 left!

0
