926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Transmission Mount Parts Diagram

Hydro 36" Power Brush, Kohler

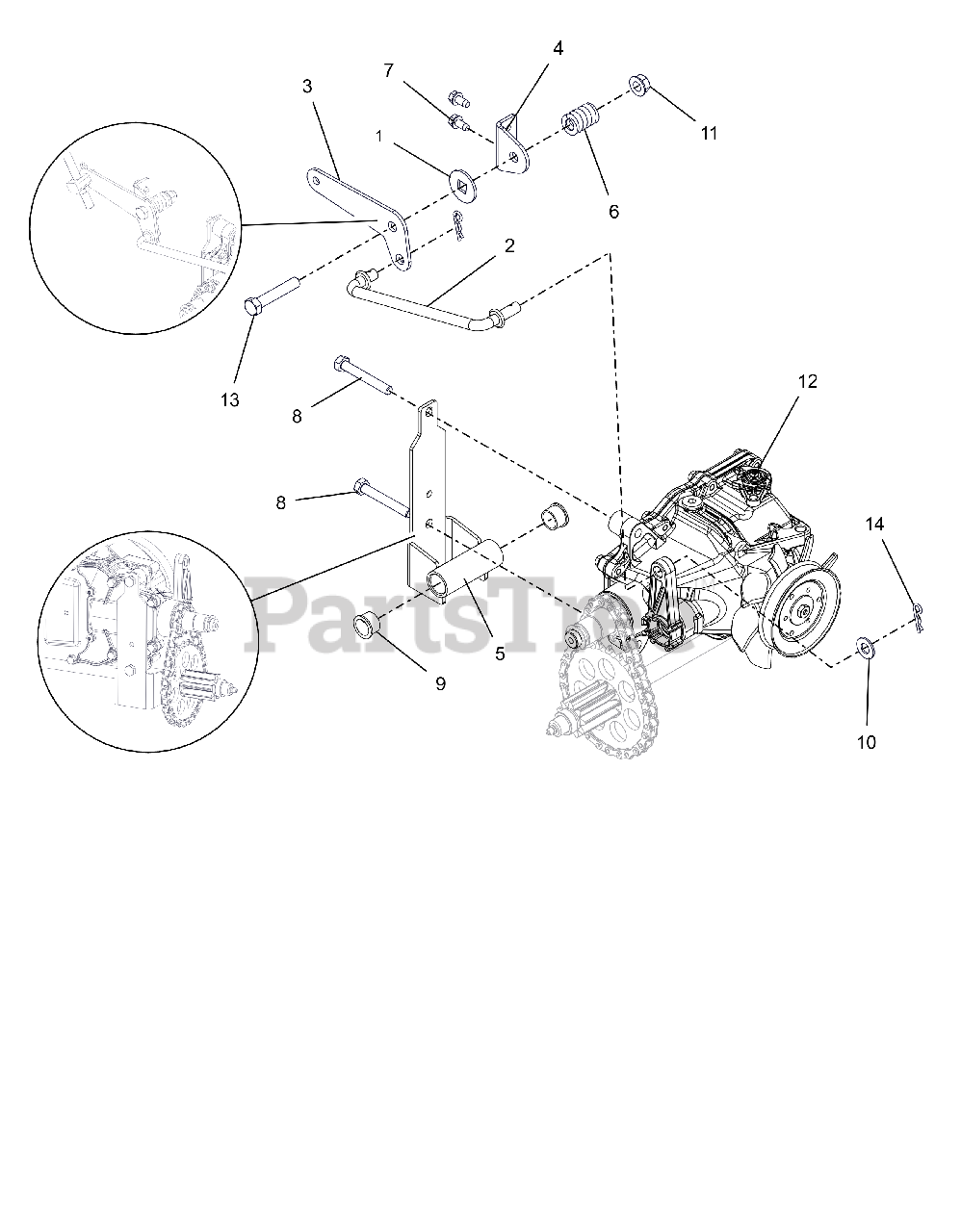

Transmission Mount Parts Diagram

  • Title

1

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

2

Ariens 04376500

ROD, HYDRO TRANS SHIFT

$9.49

$

Usually ships in 4-12 days

0

3

Ariens 04376651

PIVOT, HYDRO TRANS SHIFT

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 04376751

BRACKET, HYDRO SHIFT PIVOT

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 04662900

TRANS MOUNT, TENSIONING, WHEEL

$42.99

$

Usually ships in 4-12 days

0

6

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

9

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 19

0

12

Ariens 04438900

TRANSMISSION, HYDROSTATIC

$814.99

$

Usually ships in 4-12 days

0

13

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 10

0

14

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 17

0
