926079 (PRO 32) - Ariens Hydro Pro 32" Track Snow Blower, Ariens AX 420cc (SN: 005000 - 019999) Housing - 32" Parts Diagram

Hydro Pro 32" Track Snow Blower, Ariens AX 420cc

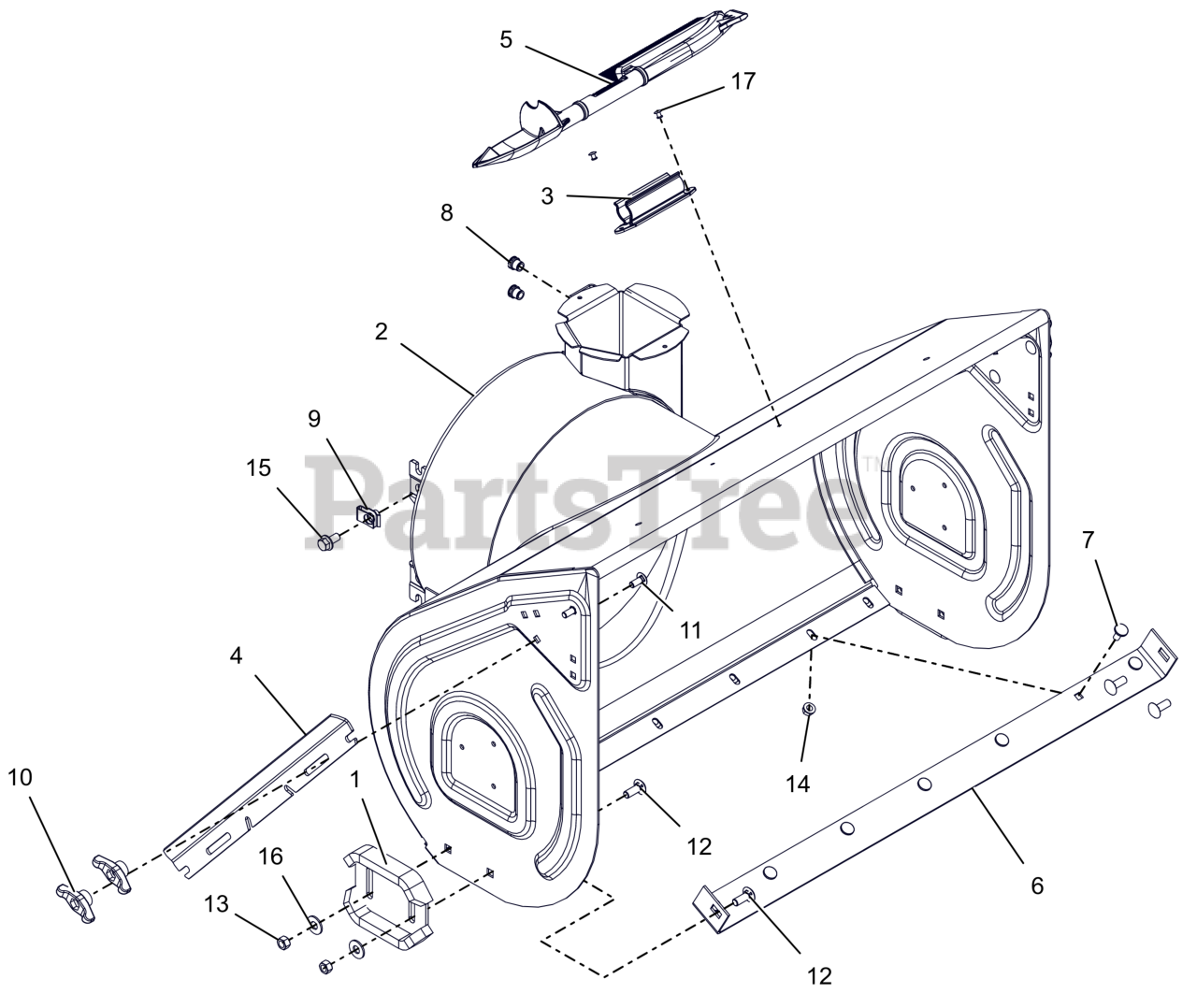

Housing - 32" Parts Diagram

  • Title

1

Ariens 04148959

RUNNER, SKID SHOE

$60.99

$

In Stock, Qty 16

0

2

Ariens 52608000

BLOWER HOUSING W/DECAL 32"
(Superseded to 52616700)

$415.99

$

Usually ships in 4-12 days

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

4

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$35.99

$

In Stock, only 2 left!

0

6

Ariens 04182059

BLADE, SCRAPER-32"

$55.99

$

In Stock, only 3 left!

0

7

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

10

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

11

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07001824

BLT

$1.99

$

In Stock, only 3 left!

0

16

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0
