926082 (PRO 32) - Ariens Professional 32" Snow Blower, Ariens AX 420cc (SN: 000101 & Above) Auger and Impeller - 32" Parts Diagram

Professional 32" Snow Blower, Ariens AX 420cc

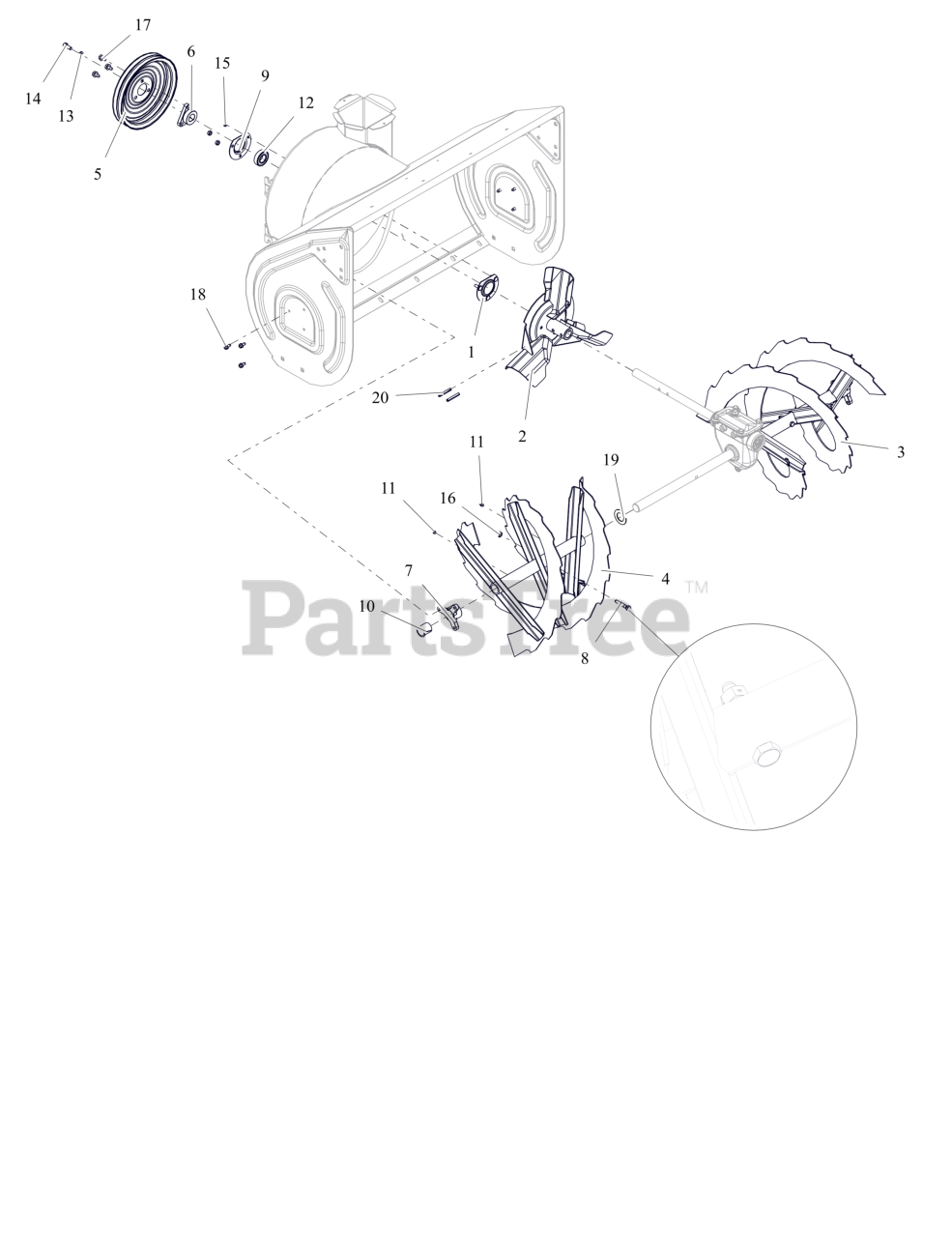

Auger and Impeller - 32" Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 4 left!

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$104.99

$

In Stock, Qty 10

0

3

Ariens 52606600

RAKE, LH-32"(1 ID X 15.75 OD)

$170.99

$

Usually ships in 4-12 days

0

4

Ariens 52606700

RAKE, RH-32"(1 ID X 15.75 OD)

$193.99

$

Usually ships in 4-12 days

0

5

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$40.99

$

In Stock, only 2 left!

0

6

Ariens 00268703

PULLEY HUB, D-BORE .87 PRO

$9.99

$

In Stock, only 3 left!

0

7

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 8

0

8

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

$3.49

$

In Stock, Qty 6

0

9

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 7

0

10

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 20+

0

11

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

12

Ariens 05400713

BRG-BALL .876X1.75X.50 RSTFP

$41.99

$

In Stock, Qty 7

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 5

0

14

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

15

Ariens 06500812

NUT,LK-CTR .25-20 GA ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06401219

WSHR- FLT 1.010X1.755X.062 ZCC

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0
