926082 (PRO 32) - Ariens Professional 32" Snow Blower, Ariens AX 420cc (SN: 000101 & Above) Friction Drive Parts Diagram

Professional 32" Snow Blower, Ariens AX 420cc

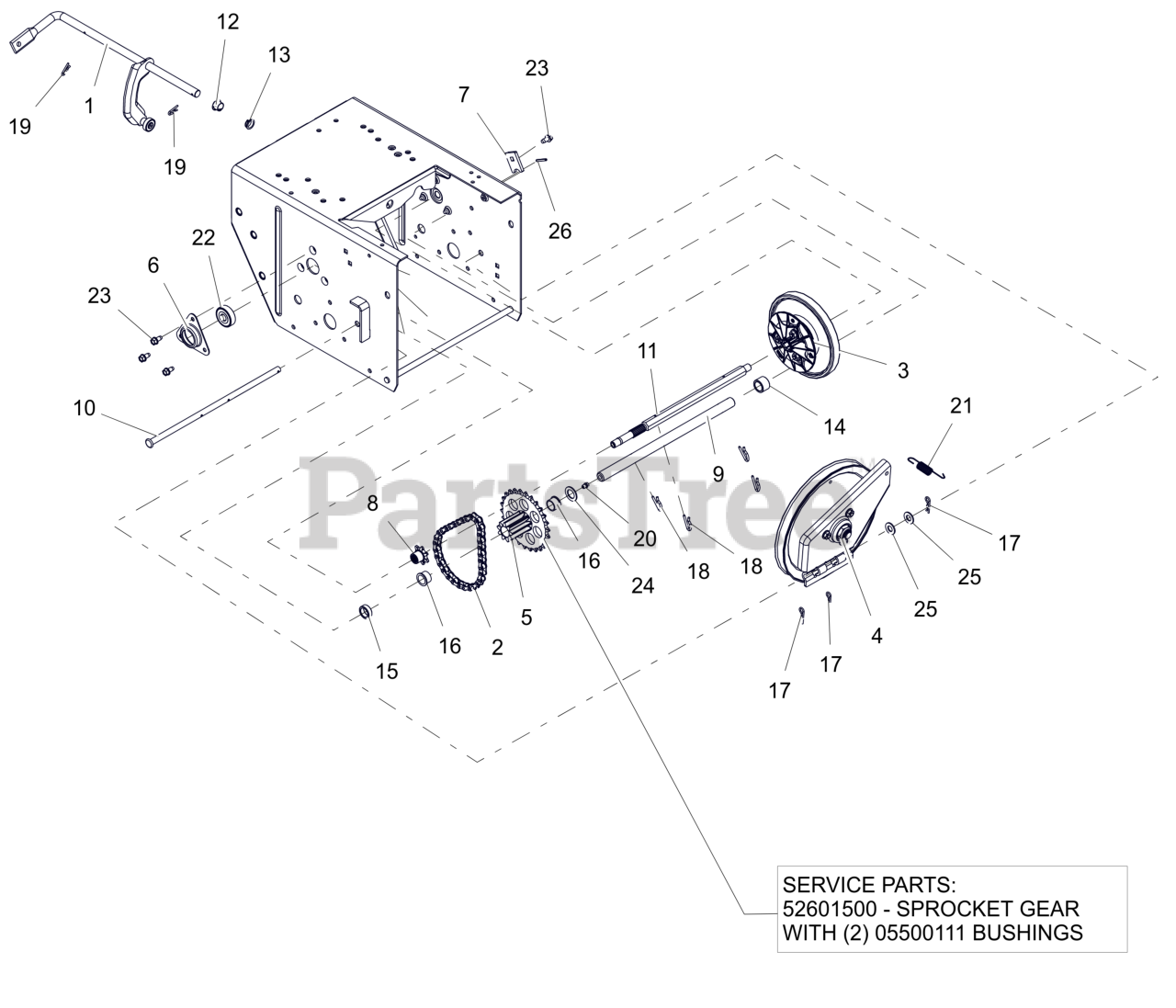

Friction Drive Parts Diagram

  • Title

1

Ariens 04872600

ARM, SHIFT-PRO (ASSEMBLY)

$43.99

$

Usually ships in 4-12 days

0

2

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 1 left!

0

3

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$36.99

$

In Stock, only 3 left!

0

4

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$131.99

$

In Stock, only 2 left!

0

5

Ariens 00190600

PINION & SPROCKET

$

$

Not available

6

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

7

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

8

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 04511800

SHAFT, PINION - HARDENED

$43.99

$

In Stock, only 2 left!

0

10

Ariens 09429400

PIN, PIVOT

$8.49

$

Usually ships in 4-12 days

0

11

Ariens 04991400

SHAFT, HEX - HEAT TREATED
(Superseded to 05199800)

$22.99

$

In Stock, only 1 left!

0

12

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

13

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

14

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

15

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

16

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

19

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

20

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

21

Ariens 08300019

SG-TENS .048X.50X2.8

$6.49

$

In Stock, only 2 left!

0

22

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

23

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 12

0

25

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0
