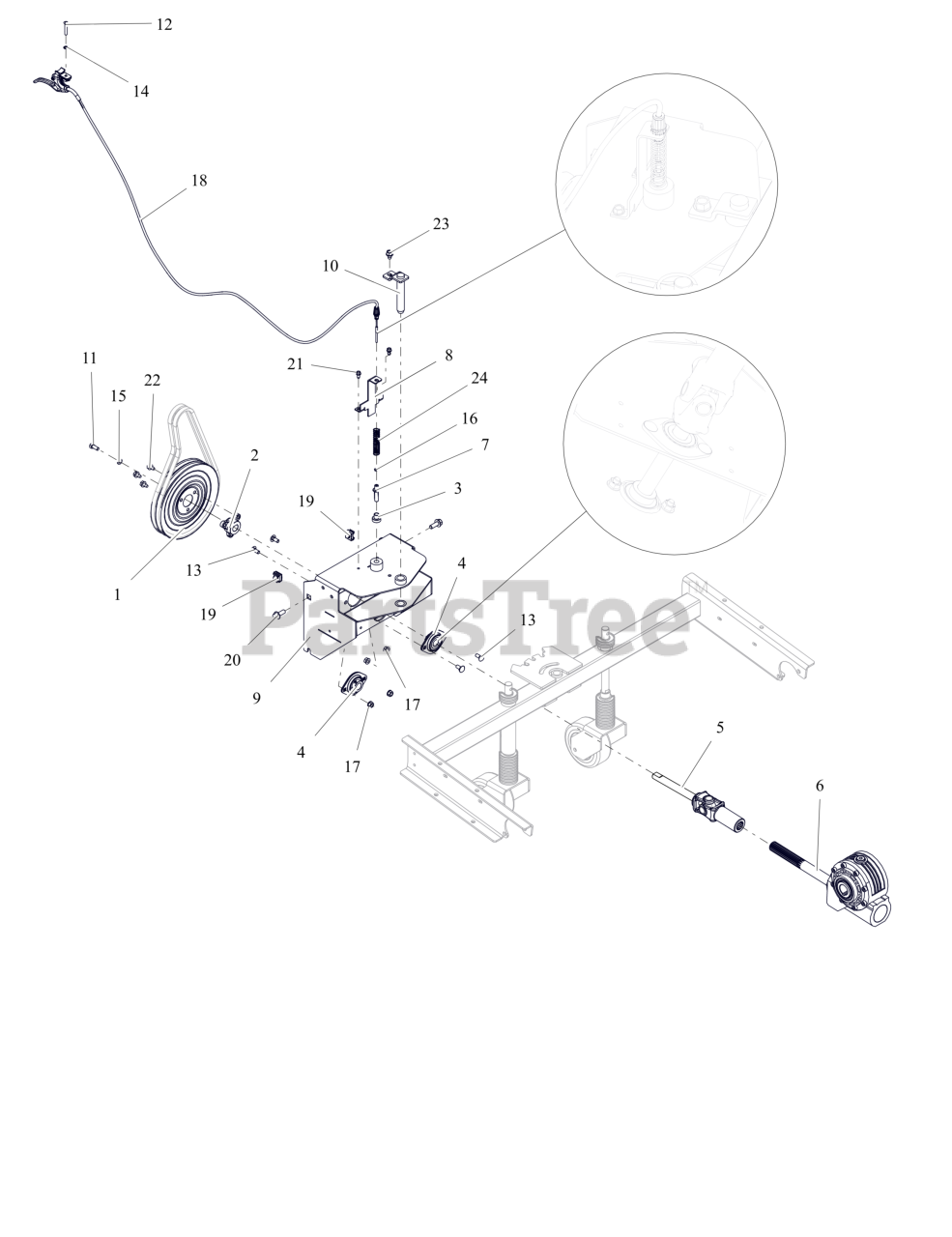

926087 - Ariens 36" Power Brush, Kohler (SN: 000101 & Above) Brush Drive Parts Diagram

36" Power Brush, Kohler

Brush Drive Parts Diagram

  • Title

1

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$40.99

$

In Stock, only 2 left!

0

2

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

3

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$10.99

$

In Stock, only 2 left!

0

4

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 04541900

DRIVELINE, SERIES 07 (U-JOINT)

$155.99

$

Usually ships in 4-12 days

0

6

Ariens 04542000

GEARBOX, WORM - 8.25:1

$490.99

$

Usually ships in 4-12 days

0

7

Ariens 04636300

PIN, ADJUSTABLE ANGLE BRUSH

$17.99

$

In Stock, only 2 left!

0

8

Ariens 04651851

BRKT, PIN HOLDER

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 05003851

ADAPTER, BRUSH

$197.99

$

Usually ships in 4-12 days

0

10

Ariens 04845100

WLDMT, BRUSH PIN

$44.99

$

Usually ships in 4-12 days

0

11

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.99

$

In Stock, only 1 left!

0

12

Ariens 06100236

SCR,OVAL .25-20X1.50 ZCC

$3.99

$

In Stock, only 1 left!

0

13

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

14

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 5

0

16

Ariens 06501001

NUT, HEX #10-24 ZCC

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06900523

CABLE, REMOTE BRUSH LOCK

$75.99

$

In Stock, only 2 left!

0

19

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 7

0

20

Ariens 07001823

BLT, SERHFWH .38-16X1.00 ZCC

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

23

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 19

0

24

Ariens 08300601

SPRING, COMPRESSION

$9.99

$

Usually ships in 4-12 days

0
