926087 - Ariens 36" Power Brush, Kohler (SN: 000101 & Above) Brush Head Parts Diagram

36" Power Brush, Kohler

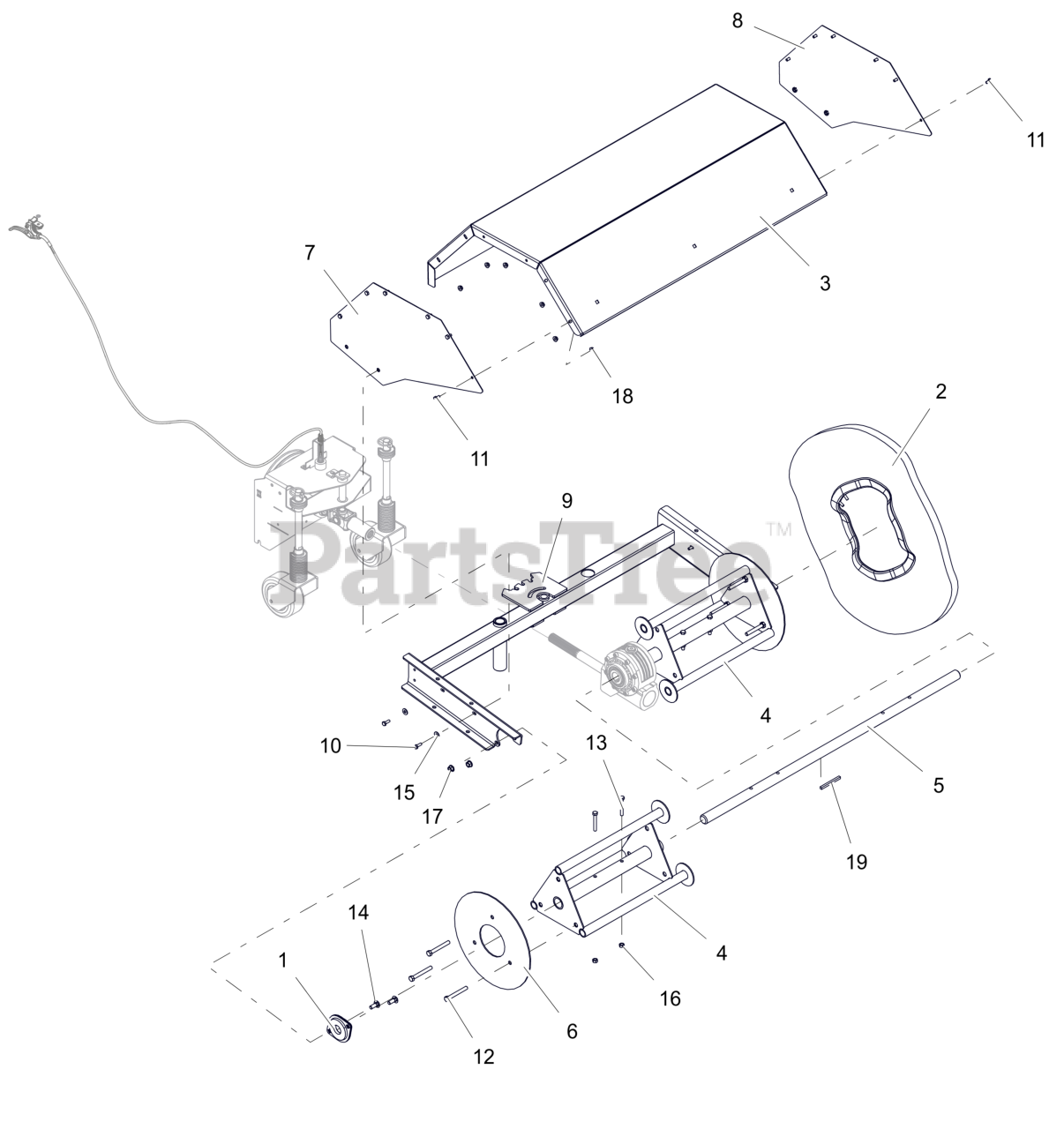

Brush Head Parts Diagram

  • Title

1

Ariens 03733900

BEARING,2 BOLT FLANGE 1-1/8 ID

$76.99

$

Usually ships in 4-12 days

0

2

Ariens 72602600

KIT, BRISTLE - SET OF 18

$407.99

$

In Stock, only 1 left!

0

3

Ariens 52617300

COVER, TOP - 36 PB W/DECAL

$263.99

$

Usually ships in 4-12 days

0

4

Ariens 52612900

PB36 DRIVE CORE SERVICE KIT

$382.99

$

Usually ships in 4-12 days

0

5

Ariens 04594500

CENTER, SHAFT

$133.99

$

Usually ships in 4-12 days

0

6

Ariens 04594651

PLATE, END RETAINER

$32.99

$

Usually ships in 4-12 days

0

7

Ariens 04682059

WLDT, SIDE COVER - RH

$58.99

$

Usually ships in 4-12 days

0

8

Ariens 04682159

WLDT, SIDE COVER - LH

$59.99

$

Usually ships in 4-12 days

0

9

Ariens 04844951

FRAME, POWER BROOM 36"

$290.99

$

Usually ships in 4-12 days

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

11

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

12

Ariens 05901815

BLT, HEX .38-16X3.00F G5 ZCC

$3.49

$

In Stock, Qty 16

0

13

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 8

0

19

Ariens 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0
