926104 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 035000 & Above) Electrical Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

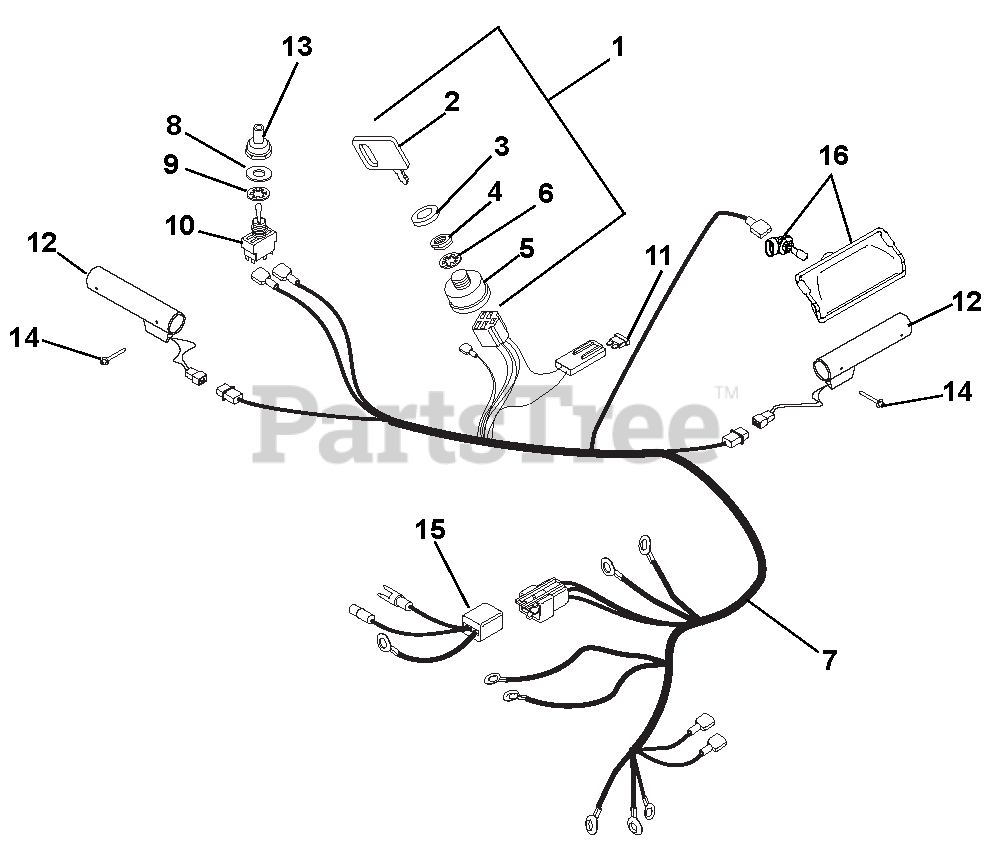

Electrical Parts Diagram

  • Title

1

Ariens 52709300

SWITCH ASSEMBLY

Note: (Includes Items 2 - 6) (926104, 105)

$56.99

$

In Stock, only 4 left!

0

2

Ariens 02460700

KEY -W/CAP

Note: (926104, 105)

$7.99

$

In Stock, Qty 20+

0

3

Ariens 07517700

CAP - IGNITION SWITCH

Note: (926104, 105)

$3.99

$

In Stock, Qty 9

0

4

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (926104, 105)

$5.99

$

In Stock, only 1 left!

0

5

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (926104, 105)

$56.99

$

In Stock, only 4 left!

0

6

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: (926104, 105)

$3.99

$

In Stock, only 1 left!

0

7

Ariens 04329600

HARNESS, LIGHT & WARMER

Note: (926038, 039, 040, 042)

$45.99

$

Usually ships in 4-12 days

0

Ariens 04329700

HARNESS, 12V

Note: (926104, 105)

$75.99

$

Usually ships in 4-12 days

0

8

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

9

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 4 left!

0

10

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 00524700

FUSE, 15 AMP.

Note: (926104, 105)

$

$

Not available

12

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Loctite E90-FL Epoxy for Installation)

$46.99

$

In Stock, only 1 left!

0

13

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$45.99

$

Usually ships in 4-12 days

0

14

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 00388300

HARNESS ADAPTER, BRIGGS 12V

Note: Harness Adapter (926104, 105)

$28.99

$

Usually ships in 4-12 days

0

16

Ariens 04307600

HEADLIGHT ASSY, HALOGEN 20W
(Superseded to 04812300)

$42.99

$

In Stock, Qty 5

0
