926302 (ST 1332 LE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 002501 - 003500) Wheels And Axles Parts Diagram

32" Snow Blower, 13hp Tecumseh

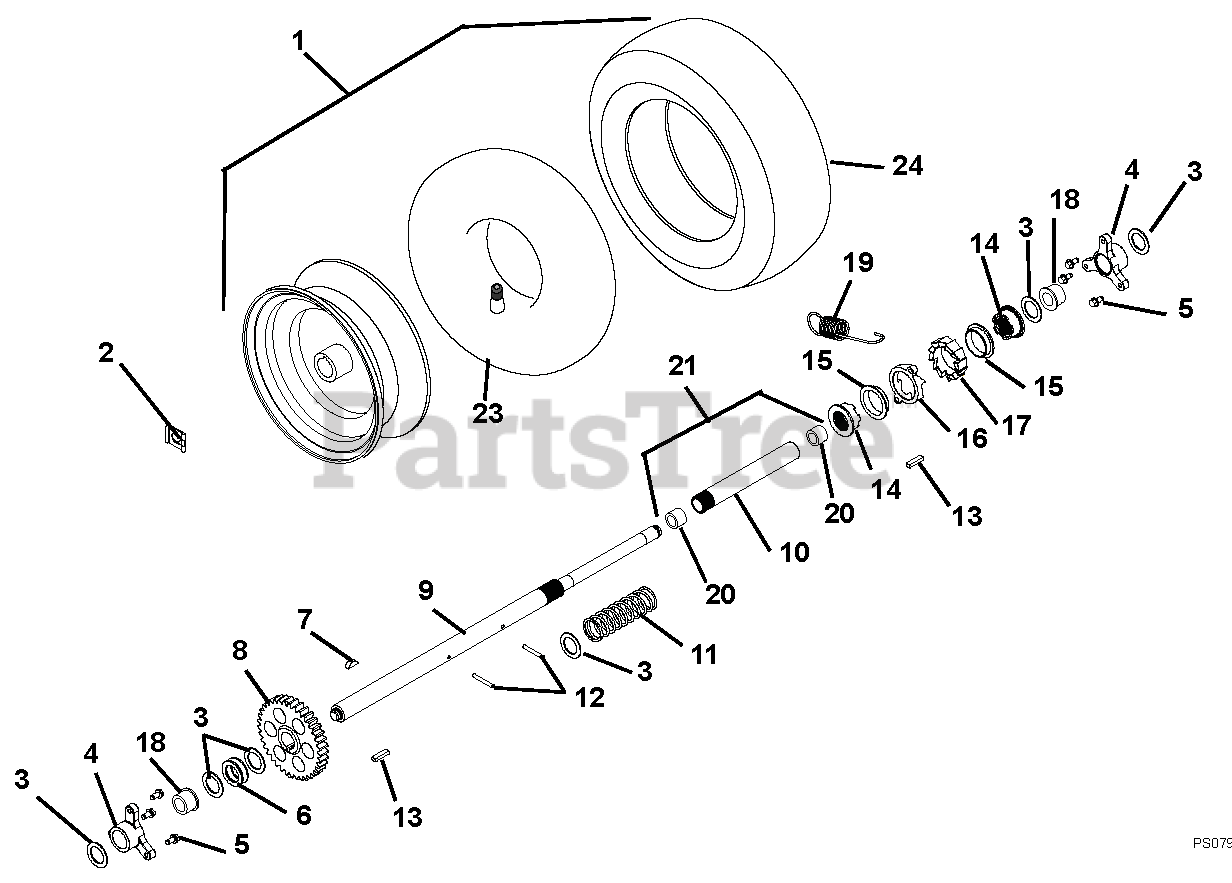

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 22-23)

$151.99

$

Usually ships in 4-12 days

0

1

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 22-23)

$151.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 8

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 17

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 10

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 17

0

6

Ariens 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, only 3 left!

0

7

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 15

0

8

Ariens 00371000

GEAR, SPUR

$54.99

$

In Stock, only 2 left!

0

9

Ariens 00376000

AXLE, DIFFERENTIAL-LONG

$373.99

$

In Stock, only 4 left!

0

10

Ariens 00375900

AXLE, DIFFERENTIAL-SHORT
(Superseded to 52601700)

$112.99

$

In Stock, Qty 5

0

11

Ariens 00427700

SPRING, COMPRESSION

$3.99

$

In Stock, only 4 left!

0

12

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

14

Ariens 00386900

CLUTCH, DOG - SLIDING

$21.99

$

In Stock, only 2 left!

0

15

Ariens 00391100

BUSHING, FLANGE

$2.49

$

In Stock, Qty 8

0

16

Ariens 00387100

GEAR, CLUTCH

$29.99

$

In Stock, only 2 left!

0

17

Ariens 00387000

GEAR, RATCHET

$22.99

$

In Stock, only 2 left!

0

18

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 15

0

19

Ariens 08300023

SG-TENS .06X.62X2.94

$9.99

$

In Stock, only 1 left!

0

20

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, only 4 left!

0

21

Ariens 05201700

DECAL,FOOT

Note: (Includes 10 and 20)

$

$

Not available

22

Ariens 07108700

TUBE

Note: (312, 313, 500, 501, 502)

$23.99

$

Usually ships in 4-12 days

0

23

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: (312, 313, 500, 501, 502)

$86.99

$

Usually ships in 4-12 days

0
