926309 - Ariens 36" Power Brush, Subaru (SN: 035000 - 039999) Brush Drive Unit Parts Diagram

36" Power Brush, Subaru

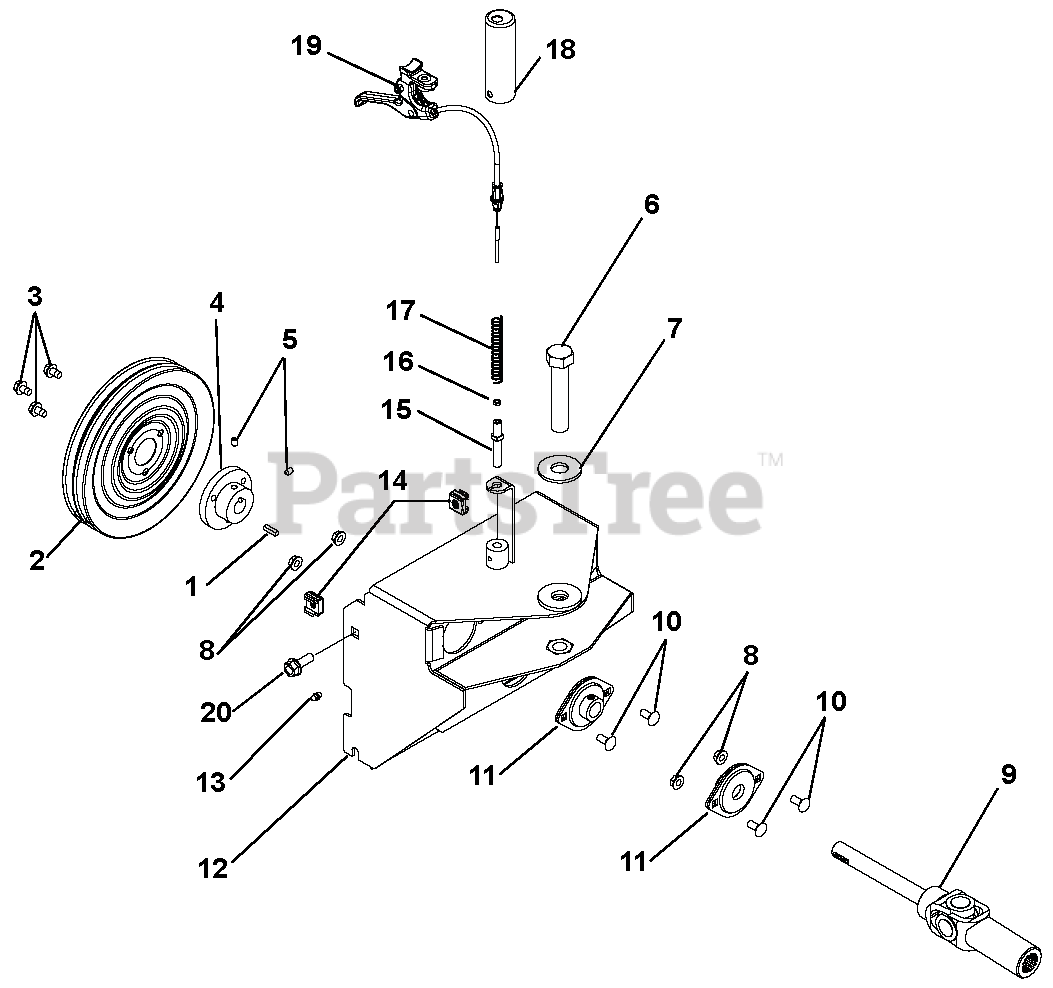

Brush Drive Unit Parts Diagram

  • Title

1

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

2

Ariens 00268700

PULLEY, SPIN FORM DUAL GROOVE
(Superseded to 00268751)

$40.99

$

In Stock, only 2 left!

0

3

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 04195300

HUB, PULLEY

$171.99

$

Usually ships in 4-12 days

0

5

Ariens 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.99

$

In Stock, only 2 left!

0

6

Ariens 21602700

HHCS .75-16 UNF X 3.75

$

$

Not available

7

Ariens 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, only 2 left!

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 21602200

DRIVELINE, SERIES 07
(Superseded to 52614300)

$283.99

$

Usually ships in 4-12 days

0

10

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 21602100

BEARING, 3/4" FLANGETTE
(Superseded to 03685300)

$50.99

$

In Stock, only 2 left!

0

12

Ariens 21602400

MTG FRAME, MCD ARIENS

$

$

Not available

13

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

14

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 5

0

15

Ariens 21602600

PIN, SWING MCD-TRIGGER RELEASE
(Superseded to 04770000)

$57.99

$

Usually ships in 4-12 days

0

16

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

17

Ariens 21602500

SPRING, COMPRESSION .51"X3.5"

$10.99

$

In Stock, only 1 left!

0

18

Ariens 21602300

CAP, VINYL MODIFIED

$22.99

$

Usually ships in 4-12 days

0

19

Ariens 21602800

CABLE, CONTROL SWING-MCD
(Superseded to 06900523)

$75.99

$

In Stock, only 1 left!

0

20

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0
