926311 (ST 11528 DLE) - Ariens 28" Snow Blower, 11.5hp Tecumseh (SN: 000501 & Above) Auger And Chute Parts Diagram

28" Snow Blower, 11.5hp Tecumseh

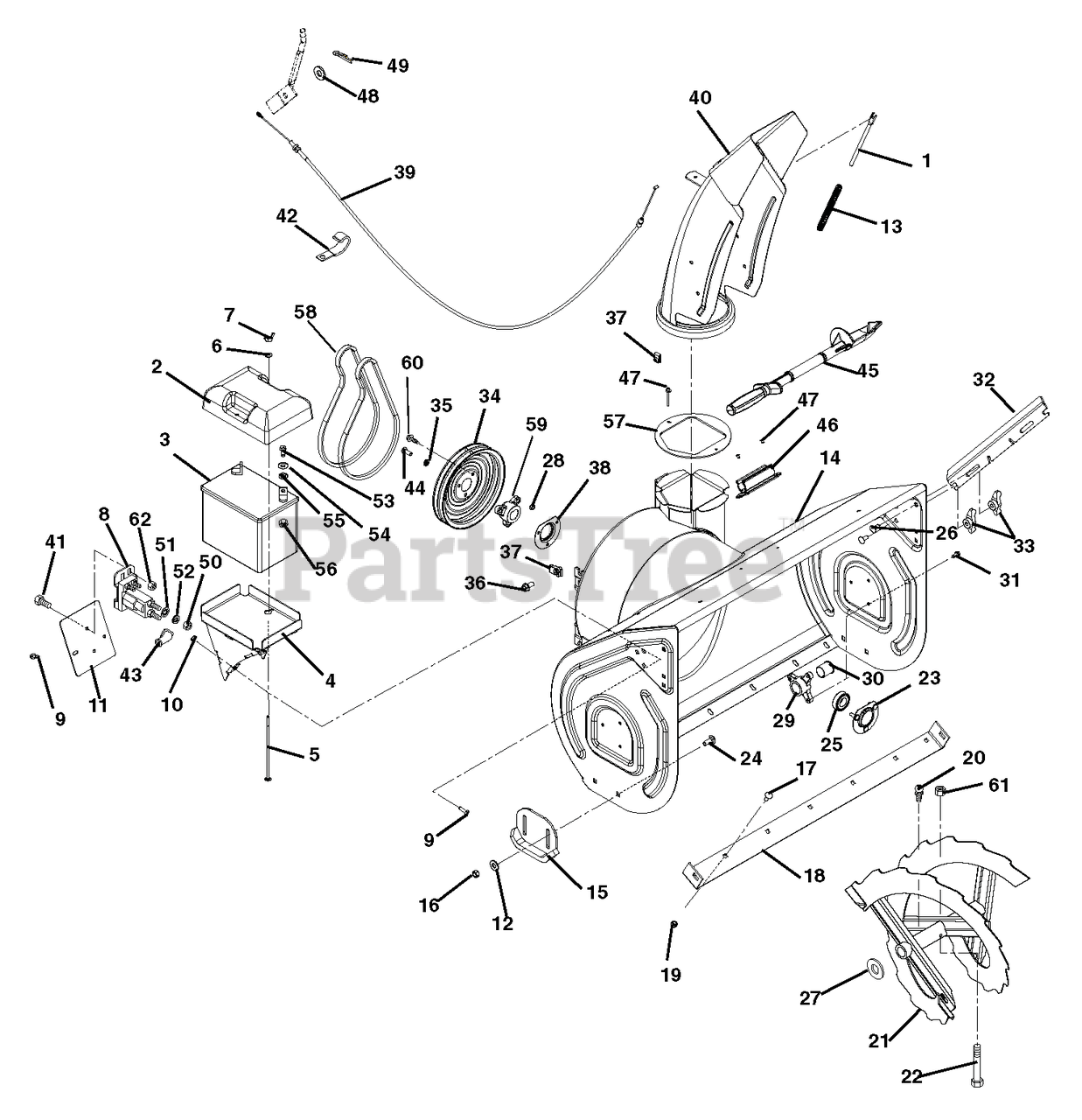

Auger And Chute Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

$15.99

$

In Stock, only 3 left!

0

2

Ariens 04912900

COVER, BATTERY

Note: (926026, 312, 313, 316, 500, 501)

$11.99

$

In Stock, only 2 left!

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L (026, 312, 313, 316, 500, 501)

Note: (926026, 312, 313, 316, 500, 501)

$

$

Not available

4

Ariens 52422200

TRAY, BATTERY-W/CLIPS

Note: (Includes Item 10) (926026, 312, 313, 316, 500, 501)

$125.99

$

Usually ships in 4-12 days

0

5

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (926026, 312, 313, 316, 500, 501)

$5.49

$

In Stock, only 2 left!

0

6

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (926026, 312, 313, 316, 500, 501)

$0.99

$

In Stock, only 3 left!

0

7

Ariens 07500104

KNOB, WING - .25-20 UNC

Note: (926026, 312, 313, 316, 500, 501)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (926026, 312, 313, 316, 500, 501)

$63.99

$

In Stock, Qty 20+

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

Note: (926026, 312, 313, 316, 500, 501)

$1.99

$

In Stock, Qty 15

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

Note: (926026, 312, 313, 316, 500, 501)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 02484459

COVER, SOLENOID

Note: (926026, 312, 313, 316, 500, 501)

$16.99

$

In Stock, only 1 left!

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.99

$

In Stock, only 1 left!

0

14

Ariens 52604300

HOUSING, BLOWER-26" W/DECAL
(Superseded to 52607800)

Note: (926017, 024, 310, 314)

$339.99

$

Usually ships in 4-12 days

0

14

Ariens 52604400

HOUSING, BLOWER-28" W/DECAL
(Superseded to 52616600)

Note: (926016, 025, 036, 311, 315)

$415.99

$

Usually ships in 4-12 days

0

14

Ariens 52604800

HOUSING, BLOWER-32" W/DECAL
(Superseded to 52616700)

Note: (926027, 302)

$415.99

$

Usually ships in 4-12 days

0

14

Ariens 52604500

HOUSING, BLOWER-32"B W/DECAL
(Superseded to 52617600)

Note: (926026, 312, 316, 500)

$484.99

$

Usually ships in 4-12 days

0

14

Ariens 52604600

HOUSING, BLOWER-36"B W/DECAL
(Superseded to 52608300)

Note: (926313, 501)

$

$

Not available

15

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

Usually ships in 4-12 days

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (926016, 017, 024, 025, 036, 310, 311, 314, 315)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (926026, 027, 302, 312, 313, 316, 500, 501)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (926017, 024, 310, 314)

$35.99

$

In Stock, Qty 7

0

18

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (926016, 025, 036, 311, 315)

$42.99

$

In Stock, only 2 left!

0

18

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

Note: (926026, 027, 302, 312, 316, 500)

$55.99

$

In Stock, only 3 left!

0

18

Ariens 00268859

BLADE, SCRAPER-36"
(Superseded to 04181659)

Note: (926313, 501)

$52.99

$

In Stock, only 4 left!

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926016, 017, 024, 025, 036, 310, 311, 314, 315)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926026, 027, 302, 312, 313, 316, 500, 501)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

21

Ariens 52606200

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926017, 024, 310, 314)

$175.99

$

Usually ships in 4-12 days

0

21

Ariens 52606300

RAKE, RH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926017, 024, 310, 314)

$180.99

$

Usually ships in 4-12 days

0

21

Ariens 52606400

RAKE, LH-28"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926016, 025, 036, 311, 315)

$180.99

$

In Stock, only 1 left!

0

21

Ariens 52606500

RAKE, RH-28"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926016, 025, 036, 311, 315)

$180.99

$

Usually ships in 4-12 days

0

21

Ariens 52606600

RAKE, LH-32"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926026, 027, 302, 312, 316, 500)

$170.99

$

Usually ships in 4-12 days

0

21

Ariens 52606700

RAKE, RH-32"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926026, 027, 302, 312, 316, 500)

$193.99

$

Usually ships in 4-12 days

0

21

Ariens 52606800

RAKE, LH-36" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926313, 501)

$213.99

$

Usually ships in 4-12 days

0

21

Ariens 52606900

RAKE, RH-36"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926313, 501)

$193.99

$

Usually ships in 4-12 days

0

22

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 61)

$3.49

$

In Stock, Qty 6

0

23

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 3 left!

0

24

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

Usually ships in 4-12 days

0

25

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

26

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

27

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

28

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 8

0

30

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$7.49

$

In Stock, Qty 20+

0

31

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

33

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

34

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$40.99

$

In Stock, only 2 left!

0

35

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

36

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

37

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

38

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

39

Ariens 06900018

CABLE, DEFLECTOR
(Superseded to 06900406)

$50.99

$

In Stock, only 2 left!

0

40

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

$162.99

$

Usually ships in 4-12 days

0

41

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (926026,312,313,316, 500, 501)

$0.99

$

In Stock, only 3 left!

0

42

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

43

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (926026,312,313,316, 500, 501)

$3.99

$

In Stock, Qty 9

0

44

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

45

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

46

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

47

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

48

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

49

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

50

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

Note: (926026,312,313,316, 500, 501)

$1.49

$

In Stock, Qty 10

0

51

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (926026,312,313,316, 500, 501)

$0.99

$

In Stock, only 1 left!

0

52

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (926026,312,313,316, 500, 501)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (926026,312,313,316, 500, 501)

$1.49

$

In Stock, Qty 12

0

54

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

Note: (926026,312,313,316, 500, 501)

$1.49

$

Usually ships in 4-12 days

0

55

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (926026,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 11

0

56

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (926026,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 8

0

57

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

58

Ariens 07200430

V-BELT, HA-RAW EDGE (SET)

Note: (926017, 016, 024, 025, 310, 311, 314, 315, 036)

$59.99

$

In Stock, Qty 9

0

58

Ariens 07200429

V-BELT, HA-RAW EDGE (SET)

Note: (926026, 027, 302, 312, 313, 316, 500, 501)

$63.99

$

In Stock, only 4 left!

0

59

Ariens 00268701

PULLEY HUB, BOLT-ON D-BORE .87
(Superseded to 00268703)

$9.99

$

In Stock, only 3 left!

0

60

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

61

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

62

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (926026, 312, 313, 316, 500, 501)

$0.99

$

In Stock, Qty 20+

0
