926314 (ST 9526 DLET) - Ariens 26" Snow Blower, 9.5hp Tecumseh (SN: 000101 - 000500) Electrical Parts Diagram

26" Snow Blower, 9.5hp Tecumseh

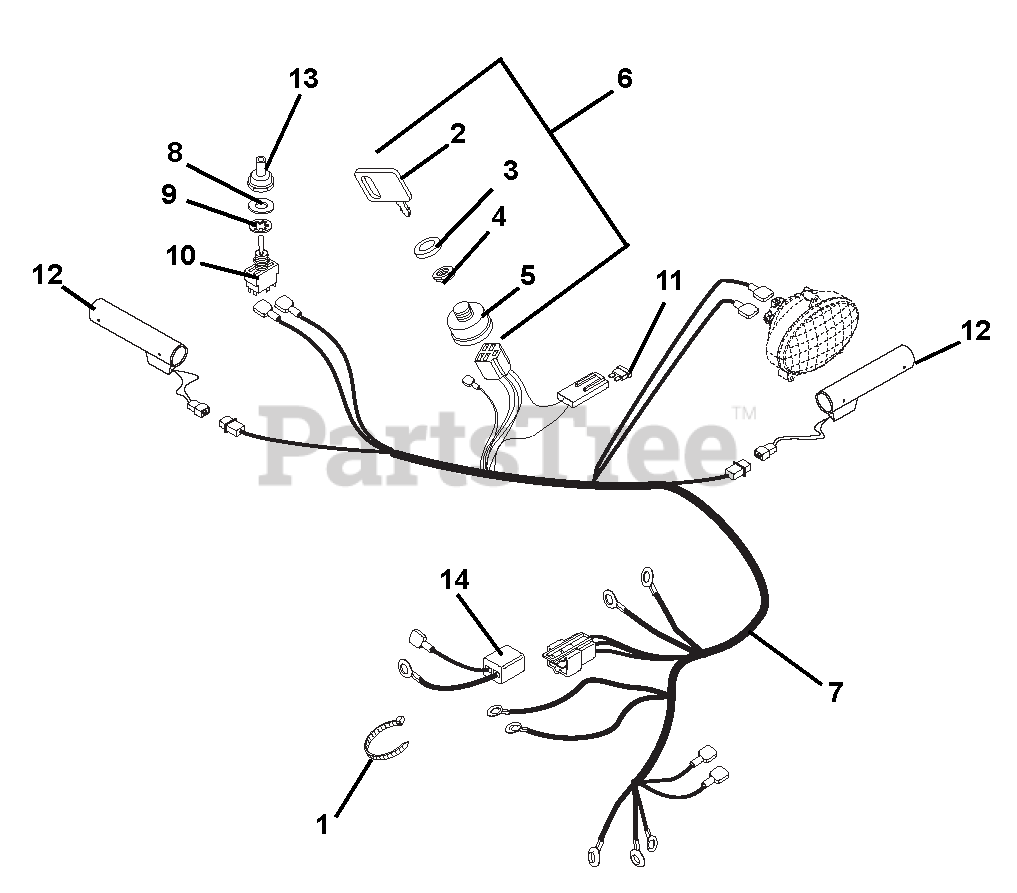

Electrical Parts Diagram

  • Title

1

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

2

Ariens 02460700

KEY -W/CAP

Note: (926023, 312, 313, 316, 500, 501)

$10.99

$

In Stock, Qty 20+

0

3

Ariens 07517700

CAP - IGNITION SWITCH

Note: (926023, 312, 313, 316, 500, 501)

$3.99

$

In Stock, Qty 19

0

4

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (926023, 312, 313, 316, 500, 501)

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (926023, 312, 313, 316, 500, 501)

$58.99

$

In Stock, only 2 left!

0

6

Ariens 52709300

SWITCH ASSEMBLY

Note: (Includes Items 2 thru 5) (926023, 312, 313, 316, 500, 501)

$58.99

$

In Stock, only 2 left!

0

7

Ariens 00432300

HARNESS, WIRE-LIGHT HANDWARMER
(Superseded to 00432301)

Note: (926016, 017, 021, 022, 302, 310, 311, 312, 314, 315, 502)

$74.99

$

Usually ships in 4-12 days

0

7

Ariens 00432400

HARNESS, WIRE-LT, HW, 12V
(Superseded to 00432401)

Note: (926023, 312, 313, 316, 500, 501)

$120.99

$

Usually ships in 4-12 days

0

8

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

9

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 2 left!

0

10

Ariens 02485700

SWITCH, ON/OFF

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

12

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$49.99

$

In Stock, only 1 left!

0

13

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$65.99

$

Usually ships in 4-12 days

0

14

Ariens 00483200

HARNESS ADAPTER, BRIGGS 9A DC

Note: (926021, 022)

$

$

Not available

14

Ariens 00388300

HARNESS ADAPTER, BRIGGS 12V

Note: (926023)

$32.99

$

Usually ships in 4-12 days

0
