926314 (ST 9526 DLET) - Ariens 26" Snow Blower, 9.5hp Tecumseh (SN: 000501 & Above) Track And Axles Parts Diagram

26" Snow Blower, 9.5hp Tecumseh

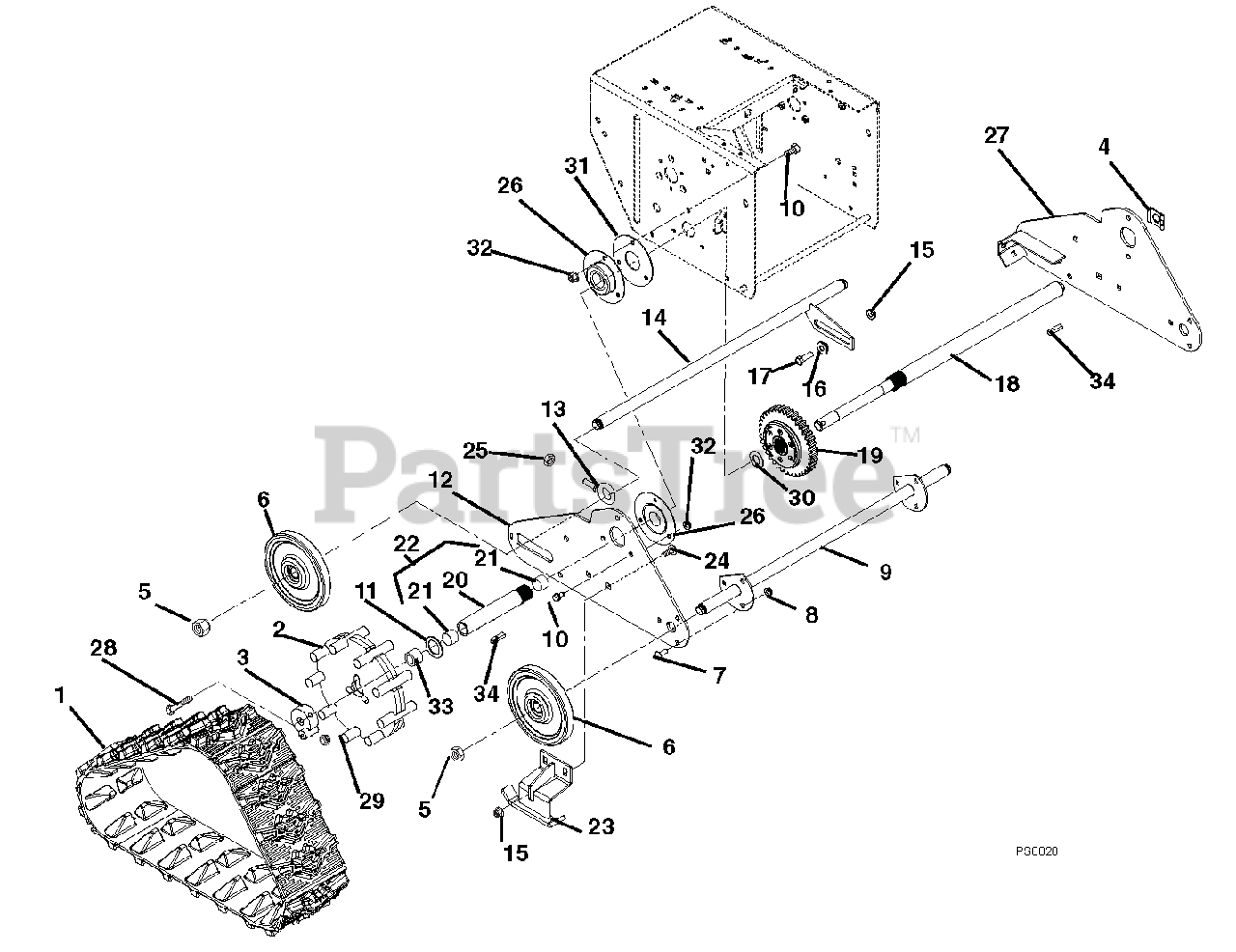

Track And Axles Parts Diagram

  • Title

1

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

2

Ariens 00670351

WHEEL, DRIVE-TRACK

$221.99

$

Usually ships in 4-12 days

0

3

Ariens 52605000

HUB, LOCKOUT-ASSEMBLY

$116.99

$

Usually ships in 4-12 days

0

4

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

5

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

6

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

9

Ariens 03376000

AXLE, FRONT - PRO

$118.99

$

Usually ships in 4-12 days

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

12

Ariens 00669851

SIDE PLATE, RH-TRACK

$85.99

$

Usually ships in 4-12 days

0

13

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

14

Ariens 03376100

AXLE, REAR - PRO TRACK

$72.99

$

Usually ships in 4-12 days

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

17

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

18

Ariens 00661400

AXLE, LONG-TRACK DIFFERENTIAL

$114.99

$

Usually ships in 4-12 days

0

19

Ariens 52604000

DIFFERENTIAL, AXLE LOCK

$235.99

$

Usually ships in 4-12 days

0

20

Ariens 00661300

AXLE, SHORT-TRACK DIFFERENTIAL

$

$

Not available

21

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

22

Ariens 52604200

AXLE, SHORT-TRACK W/BUSHINGS

Note: (includes 20 and 21)

$71.99

$

Usually ships in 4-12 days

0

23

Ariens 00660751

RUNNER, GUIDE-TRACK

$23.99

$

Usually ships in 4-12 days

0

24

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$44.99

$

In Stock, Qty 7

0

27

Ariens 00669951

SIDE PLATE, LH-TRACK

$70.99

$

Usually ships in 4-12 days

0

28

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$6.49

$

Usually ships in 4-12 days

0

31

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$14.99

$

Usually ships in 4-12 days

0

32

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

33

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

34

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0
