926316 (ST 1332 DLET) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 - 000500) Track And Axles Parts Diagram

32" Snow Blower, 13hp Tecumseh

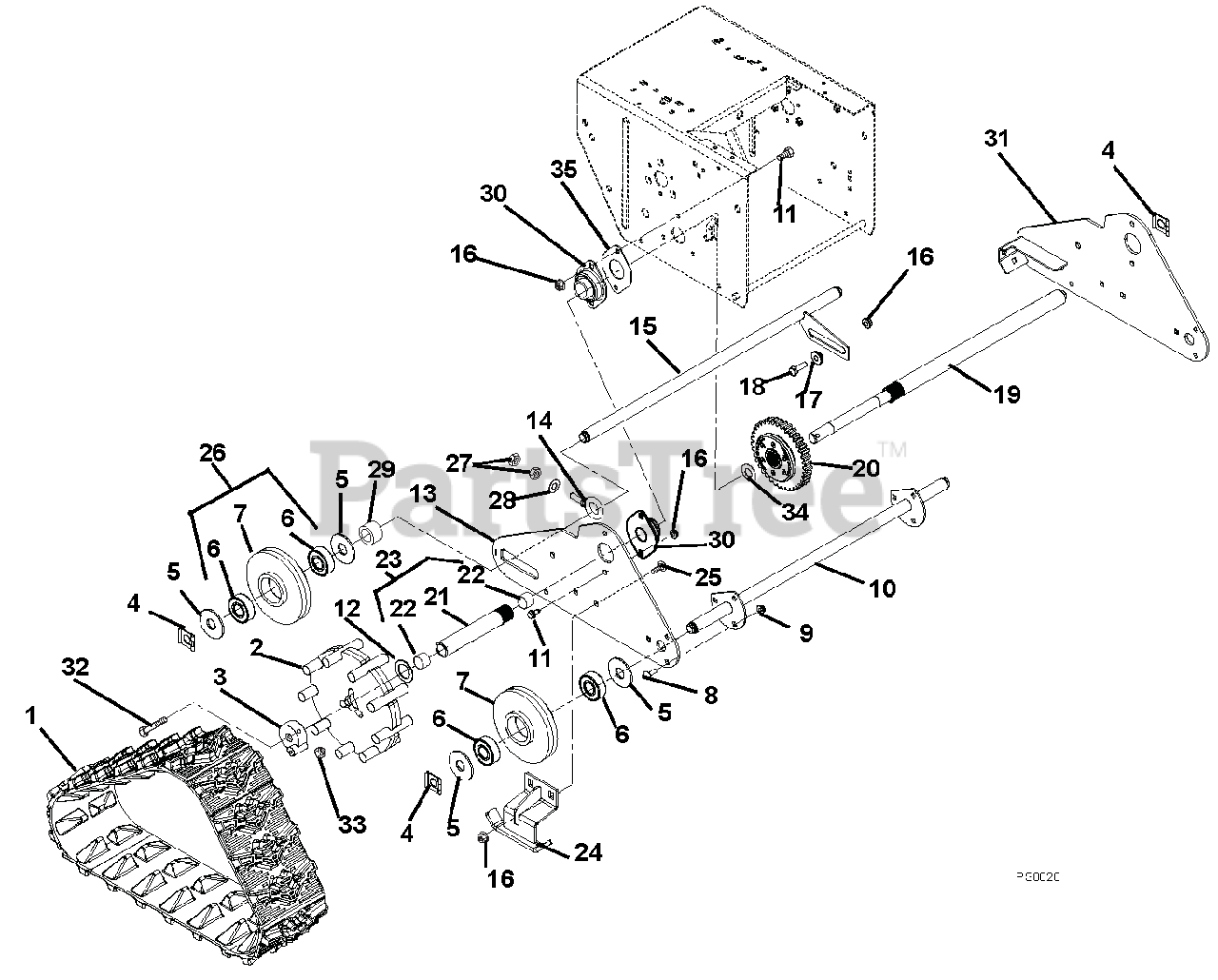

Track And Axles Parts Diagram

  • Title

1

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

2

Ariens 00670351

WHEEL, DRIVE-TRACK

$221.99

$

Usually ships in 4-12 days

0

3

Ariens 52605000

HUB, LOCKOUT-ASSEMBLY

$116.99

$

Usually ships in 4-12 days

0

4

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

5

Ariens 06444800

WSHR-FL-STL .755X2.000X.125 YZ

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

7

Ariens 00670451

WHEEL, BOGIE-TRACK

$

$

Not available

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

10

Ariens 00670100

AXLE, FRONT

$

$

Not available

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

13

Ariens 00669851

SIDE PLATE, RH-TRACK

$85.99

$

Usually ships in 4-12 days

0

14

Ariens 07500021

BOLT, EYE

$

$

Not available

15

Ariens 00670200

AXLE, BACK

$

$

Not available

16

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

18

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

19

Ariens 00661400

AXLE, LONG-TRACK DIFFERENTIAL

$114.99

$

Usually ships in 4-12 days

0

20

Ariens 52604000

DIFFERENTIAL, AXLE LOCK

$235.99

$

Usually ships in 4-12 days

0

21

Ariens 00661300

AXLE, SHORT-TRACK DIFFERENTIAL

$

$

Not available

22

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

23

Ariens 52604200

AXLE, SHORT-TRACK W/BUSHINGS

Note: (includes 21 and 22)

$71.99

$

Usually ships in 4-12 days

0

24

Ariens 00660751

RUNNER, GUIDE-TRACK

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

26

Ariens 52604700

WHEEL, BOGGIE-W/BEARINGS

Note: (includes 6 and 7)

$

$

Not available

27

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

28

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 05400232

BEARING, FLANGE-1.004/1.000"ID

$64.99

$

Usually ships in 4-12 days

0

31

Ariens 00669951

SIDE PLATE, LH-TRACK

$70.99

$

Usually ships in 4-12 days

0

32

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$6.49

$

Usually ships in 4-12 days

0
