926318 (PRO 26) - Ariens Professional 26" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Gear Case Cast Iron Parts Diagram

Professional 26" Track Snow Blower, Briggs & Stratton

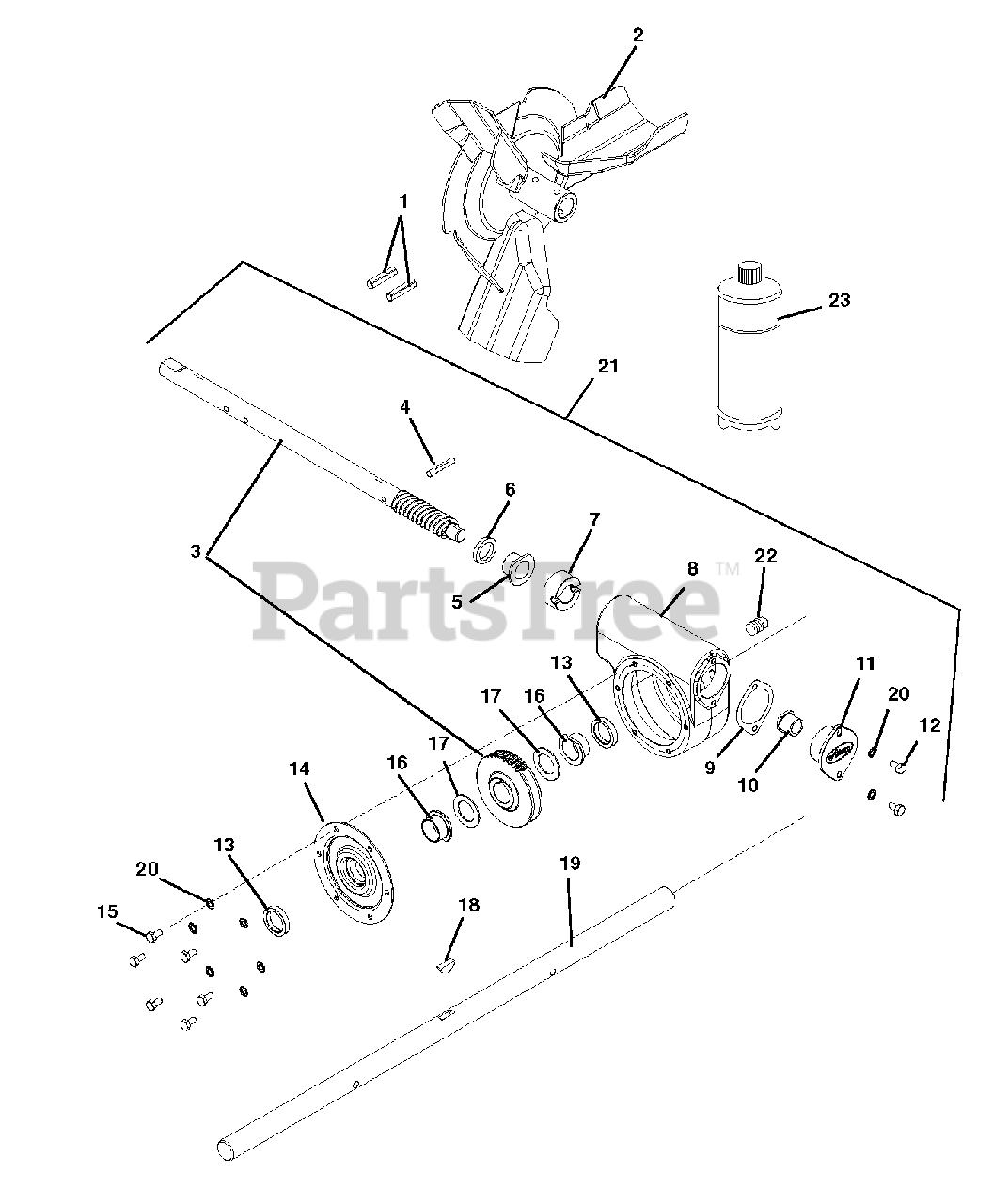

Gear Case Cast Iron Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$1.49

$

In Stock, Qty 20+

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$113.99

$

In Stock, only 2 left!

0

3

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$180.99

$

In Stock, only 2 left!

0

4

Ariens 05806800

PIN-GRV .250X1.50 TP E

$5.49

$

In Stock, only 4 left!

0

5

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$11.99

$

In Stock, only 2 left!

0

6

Ariens 05600438

SEAL-OIL .875X1.25X.188
(Superseded to 05600002)

$9.99

$

In Stock, only 4 left!

0

7

Ariens 00255100

THRUST COLLAR, .875" ID

$13.99

$

In Stock, only 2 left!

0

8

Ariens 00388200

GEARCASE, CAST IRON-MACHINED

$

$

Not available

9

Ariens 00425200

GASKET, FRONT - CAST IRON

$5.49

$

In Stock, only 2 left!

0

10

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$11.99

$

In Stock, only 2 left!

0

11

Ariens 00388400

COVER, FRONT-CI GEARCASE

$39.99

$

Usually ships in 4-12 days

0

12

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05600436

SEAL-OIL 1.000X1.375X.25
(Superseded to 05618800)

$13.99

$

In Stock, Qty 20+

0

14

Ariens 03298500

COVER, CI GEARCASE W/GASKET

$55.99

$

Usually ships in 4-12 days

0

15

Ariens 05947600

BLT-HEX .25-20X.38 YWZC GR5

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$10.99

$

In Stock, only 2 left!

0

17

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06608800

KEY-WDRF .25X.875 HRD #A

$4.99

$

In Stock, Qty 11

0

19

Ariens 03392300

SHAFT, RAKE-26"

Note: (037, 041, 317, 318)

$129.99

$

Usually ships in 4-12 days

0

19

Ariens 03392400

SHAFT, RAKE-28"

Note: (038, 042)

$121.99

$

Usually ships in 4-12 days

0

19

Ariens 03392500

SHAFT, RAKE-32"

Note: (039, 043, 506, 508)

$118.99

$

Usually ships in 4-12 days

0

19

Ariens 03392600

SHAFT, RAKE-36"

Note: (040, 507)

$111.99

$

Usually ships in 4-12 days

0

20

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$1.49

$

In Stock, only 3 left!

0

21

Ariens 52607000

GEAR CASE, 26" CAST IRON

Note: (includes items 3 - 20, 22) (037, 041, 317, 318)

$

$

Not available

21

Ariens 52607100

GEAR CASE, 28" CAST IRON

Note: (includes items 3 - 20, 22) (038, 042)

$

$

Not available

21

Ariens 52607200

GEAR CASE, 32" CAST IRON

Note: (includes items 3 - 20, 22) (039, 043, 506, 508)

$

$

Not available

21

Ariens 52607300

GEAR CASE, 36" CAST IRON

Note: (includes items 3 - 20, 22) (040, 507)

$

$

Not available

22

Ariens 00150900

PIPE PLUG, 1/4 NPT

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (GEARCASE CAPACITY = 8 OZ.)

$29.99

$

In Stock, Qty 20+

0
