926319 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Speed Selector And Frame Parts Diagram

Professional 28" Snow Blower, Briggs & Stratton

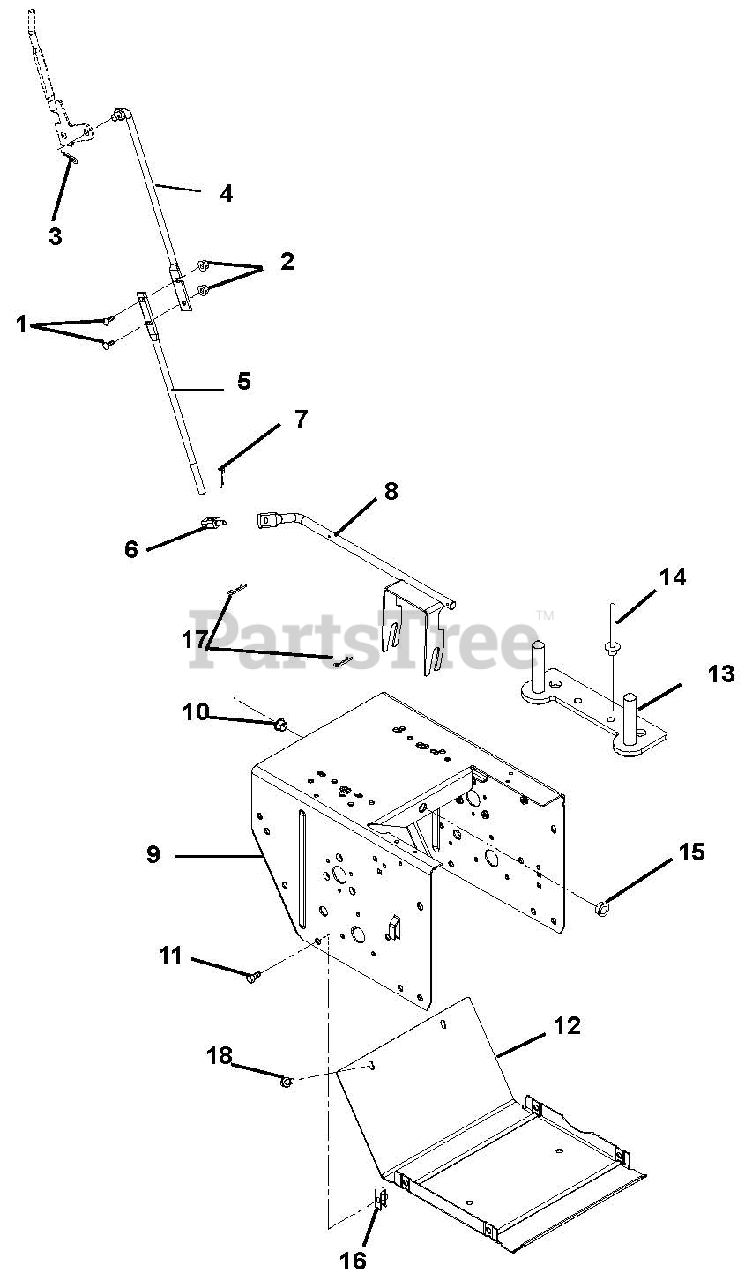

Speed Selector And Frame Parts Diagram

  • Title

1

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

3

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

4

Ariens 03917067

ROD, SHIFT-UPPER
(Superseded to 03917000)

$

$

Not available

5

Ariens 03917167

ROD, SHIFT-LOWER
(Superseded to 03917100)

$26.99

$

Usually ships in 4-12 days

0

6

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

7

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Ariens 00371300

ARM, SHIFT-WELDMENT

$61.99

$

Usually ships in 4-12 days

0

9

Ariens 00370459

FRAME, MAIN

$394.99

$

Usually ships in 4-12 days

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

11

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 19

0

12

Ariens 00375159

COVER, BOTTOM

$84.99

$

Usually ships in 4-12 days

0

13

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

15

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

16

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
