926321 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 100000 & Above) Discharge Chute Controls Parts Diagram

Professional 28" Snow Blower, Briggs & Stratton

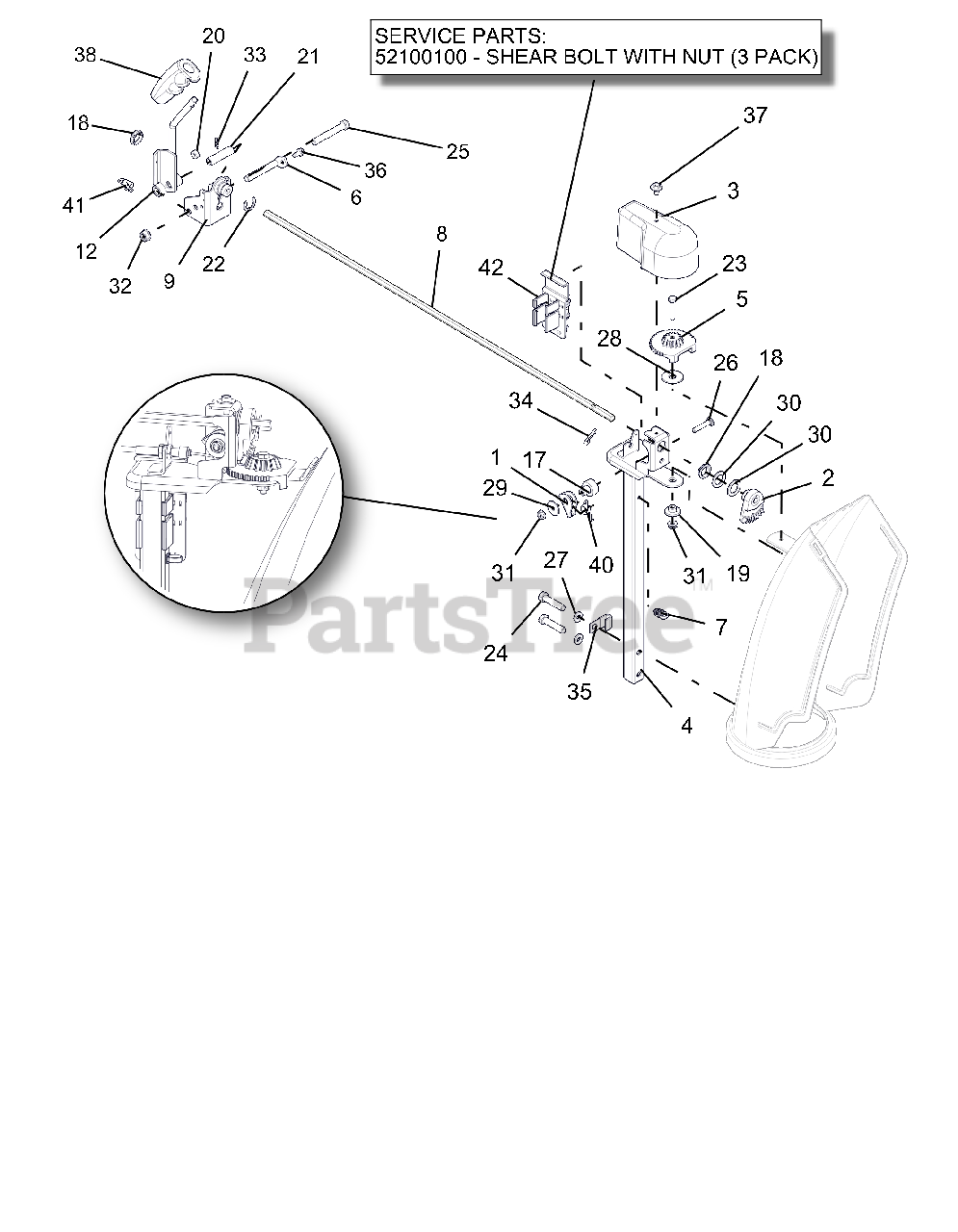

Discharge Chute Controls Parts Diagram

  • Title

1

Ariens 00180900

ARM, LOCKING
(Superseded to 05081900)

$4.99

$

In Stock, Qty 20+

0

2

Ariens 00184300

GEAR, CHUTE-ACTUATION

$22.99

$

In Stock, Qty 12

0

3

Ariens 00261700

COVER, CHUTE GEAR

$9.99

$

In Stock, Qty 5

0

4

Ariens 03897451

PEDESTAL, CHUTE - QUICK STICK

$41.99

$

Usually ships in 4-12 days

0

5

Ariens 03898700

GEAR, CHUTE
(Superseded to 09478600)

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

7

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

8

Ariens 04507700

ROD, HEX - CHUTE ROTATION

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 04755000

WELDMENT-CONTROL BRACKET-CHUTE

$46.99

$

Usually ships in 4-12 days

0

12

Ariens 04755100

WELDMENT, CONTROL LEVER

$110.99

$

Usually ships in 4-12 days

0

17

Ariens 05500024

BUSHING, LOCK ARM

$3.99

$

In Stock, Qty 9

0

18

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 18

0

20

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 13

0

21

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

In Stock, only 1 left!

0

22

Ariens 05700218

E-RING .750X.050

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 7

0

24

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 1 left!

0

25

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, Qty 12

0

26

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 10

0

27

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 13

0

28

Ariens 06400904

WSHR-FLT-NYL .515X1.375X.093

$2.49

$

In Stock, Qty 20+

0

29

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 5

0

31

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

32

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

33

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

34

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 11

0

35

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

36

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, Qty 7

0

38

Ariens 07500205

CONTROL HANDLE, QUICK TURN

$9.99

$

In Stock, only 1 left!

0

39

Ariens 07600023

PIN-WELD .25X.625

$

$

Not available

40

Ariens 08300014

SG-TORS

$1.49

$

In Stock, only 3 left!

0

41

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, only 2 left!

0

42

Ariens 52104700

HOLDER W LARGE SHEAR BOLT /NUT

$21.99

$

Usually ships in 4-12 days

0

42

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (3 PACK)

$2.99

$

In Stock, Qty 20+

0
