926324 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 095000 & Above) handlebars, cables and controls Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

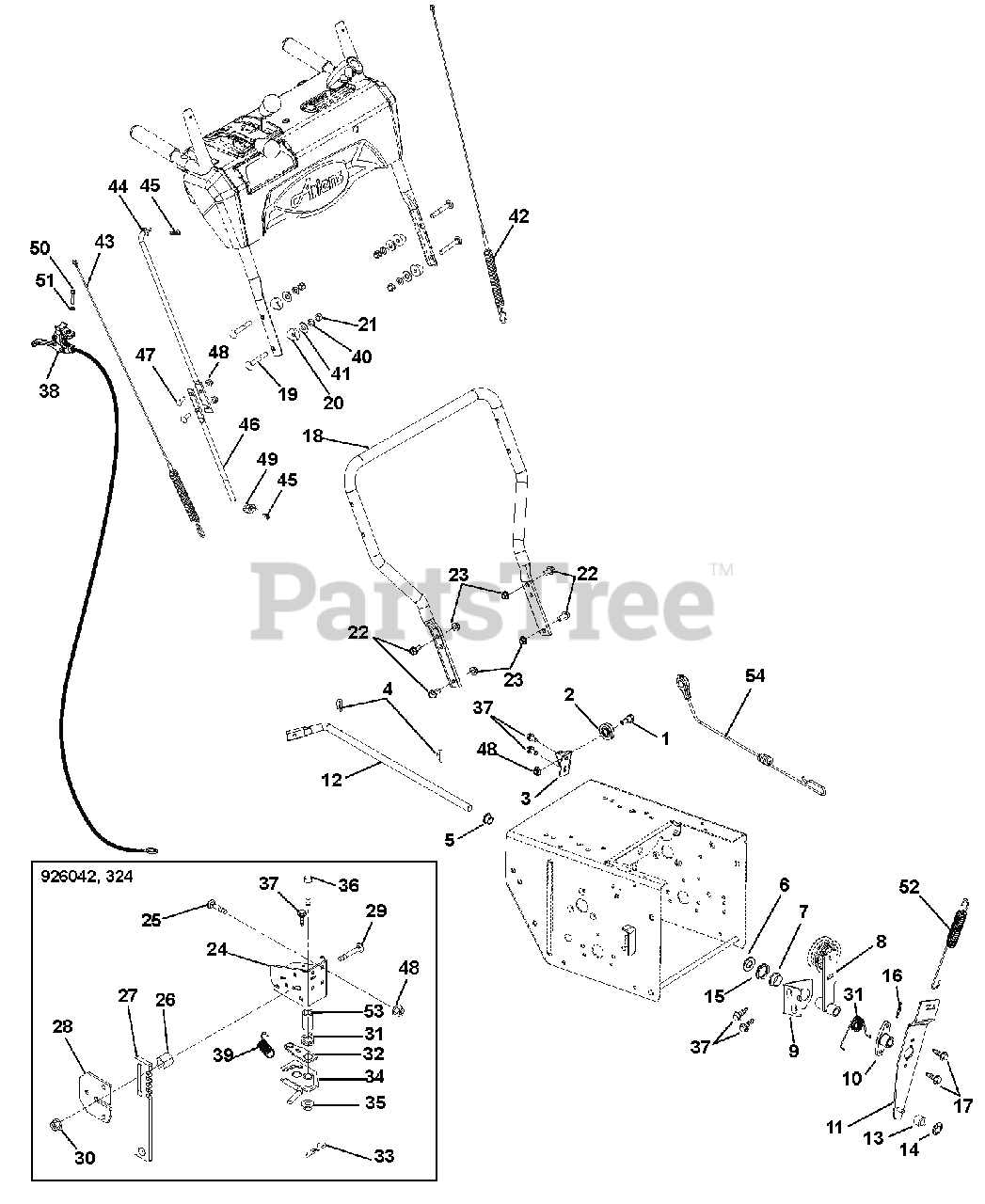

handlebars, cables and controls Parts Diagram

  • Title

1

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

2

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

3

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

4

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

5

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

6

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

7

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, only 2 left!

0

8

Ariens 00371651

ARM, IDLER-TRACTION
(Superseded to 00371600)

$11.99

$

In Stock, only 2 left!

0

9

Ariens 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.99

$

In Stock, Qty 15

0

10

Ariens 00384200

HUB, BRAKE ARM

$6.49

$

In Stock, only 2 left!

0

11

Ariens 02954400

ARM, IDLER-ATTACHMENT

$79.99

$

Usually ships in 4-12 days

0

12

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, only 2 left!

0

13

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 5

0

15

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 10

0

16

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

17

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

18

Ariens 00373251

HANDLEBAR, LOWER

$102.99

$

Usually ships in 4-12 days

0

19

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, only 2 left!

0

20

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 5

0

21

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

23

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00373751

BRACKET, HEIGHT ADJUSTER-PRO

Note: (926042, 324)

$40.99

$

Usually ships in 4-12 days

0

25

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (926042, 324)

$1.49

$

Usually ships in 4-12 days

0

26

Ariens 01103100

SPACER .50 X .32 X .42

Note: (926042, 324)

$3.99

$

In Stock, only 4 left!

0

27

Ariens 00383851

STOP, HEIGHT ADJUSTER-PRO

Note: (926042, 324)

$32.99

$

Usually ships in 4-12 days

0

28

Ariens 03294151

PLATE, HEIGHT ADJUSTER

Note: (926042, 324)

$10.99

$

Usually ships in 4-12 days

0

29

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

Note: (926042, 324)

$1.99

$

In Stock, only 3 left!

0

30

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926042, 324)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 08300015

SG-TORS .067X.88

Note: (926042, 324)

$2.49

$

In Stock, Qty 5

0

Ariens 08300015

SG-TORS .067X.88

Note: (926038, 039, 040, 513, 321, 516)

$2.49

$

In Stock, Qty 5

0

32

Ariens 03376200

ARM, OVERTRAVEL

Note: (926042, 324)

$11.99

$

Usually ships in 4-12 days

0

33

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (926042, 324)

$0.99

$

In Stock, Qty 5

0

34

Ariens 03294000

LOCK, HEIGHT ADJUSTER

Note: (926042, 324)

$11.99

$

Usually ships in 4-12 days

0

35

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

Note: (926042, 324)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (926042, 324)

$1.99

$

In Stock, only 3 left!

0

37

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (926038, 039, 040, 513, 321, 516)

$0.99

$

In Stock, Qty 20+

0

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (926042, 324)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06900510

CABLE, TRACK REMOTE

Note: (926042, 324)

$65.99

$

In Stock, only 2 left!

0

39

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

Note: (926042, 324)

$2.49

$

In Stock, Qty 16

0

40

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

41

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 06900502

CABLE, UPPER TRACTION

$35.99

$

In Stock, only 3 left!

0

43

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$31.99

$

In Stock, only 2 left!

0

44

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

45

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 04343867

ROD, SHIFT - LOWER

$35.99

$

Usually ships in 4-12 days

0

47

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

48

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

Note: (926038, 039, 040, 513, 321, 516)

$0.99

$

In Stock, Qty 9

0

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

Note: (926042, 324)

$0.99

$

In Stock, Qty 9

0

49

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

50

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

Note: (926042, 324)

$3.99

$

In Stock, only 1 left!

0

51

Ariens 06305200

WSHR-LK-INT .250 TH TYA

Note: (926042, 324)

$3.49

$

Usually ships in 4-12 days

0

52

Ariens 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, only 1 left!

0

53

Ariens 05500106

BSHG-SLV .385X.500X1.045

Note: (926042, 324)

$1.99

$

In Stock, Qty 20+

0

54

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$18.99

$

In Stock, only 2 left!

0
