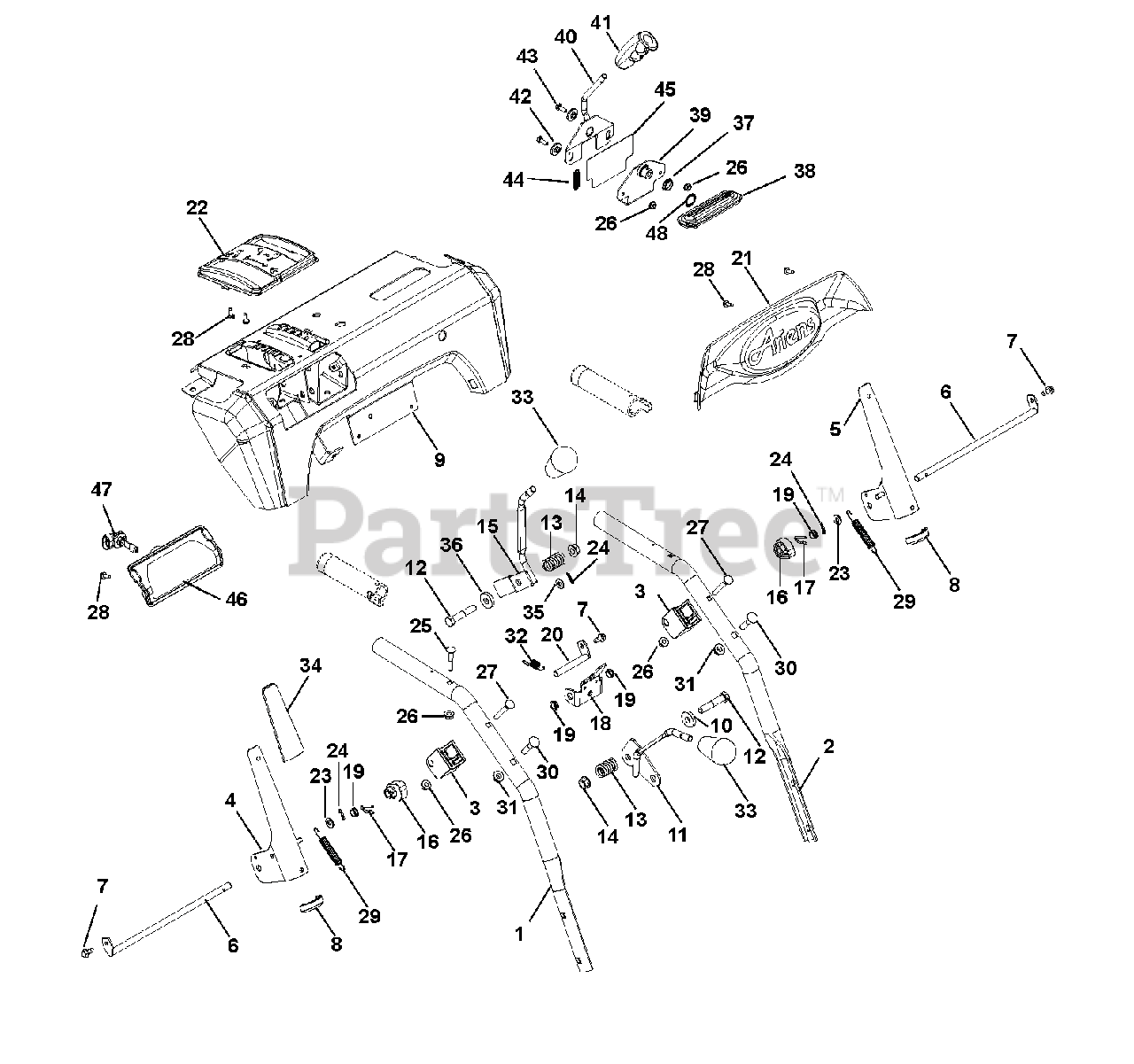

926324 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 095000 & Above) handlebars, lever controls, panel and dash Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

handlebars, lever controls, panel and dash Parts Diagram

  • Title

1

Ariens 52610200

HANDLEBAR, UPPER RH W/HW
(Superseded to 52614400)

Note: (Includes Item 12 and 14 on page 26)

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 52610300

HANDLEBAR, UPPER LH W/HW
(Superseded to 52614500)

Note: (Includes Item 12 and 14 on page 26)

$79.99

$

Usually ships in 4-12 days

0

3

Ariens 04310100

BLOCK, CLUTCH PADDLE
(Superseded to 05193600)

$6.49

$

Usually ships in 4-12 days

0

4

Ariens 04310551

LEVER, CLUTCH-RH

$23.99

$

In Stock, only 1 left!

0

5

Ariens 04310451

LEVER, CLUTCH-LH

$29.99

$

In Stock, only 1 left!

0

6

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.99

$

In Stock, only 2 left!

0

9

Ariens 52612400

CONTROL PANEL W/DECAL, 12V

Note: (926513, 516)

$

$

Not available

9

Ariens 52612500

CONTROL PANEL W/DECAL QT,AD,HW

Note: (926038, 039, 040, 321)

$131.99

$

Usually ships in 4-12 days

0

9

Ariens 52612600

CONTROL PANEL W/DECAL QT,HW,TK

Note: (926042, 324)

$152.99

$

Usually ships in 4-12 days

0

10

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 04320200

WELDMENT, CONTROL LEVER(SHIFT)

$27.99

$

Usually ships in 4-12 days

0

12

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 9

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 04320300

WELDMENT, CONTROL LEVER (DEFL)

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 04322100

CAM, INTERLOCK

$4.99

$

In Stock, Qty 12

0

17

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

18

Ariens 04320400

BRACKET, INTERLOCK ARM

$21.99

$

Usually ships in 4-12 days

0

19

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 18

0

20

Ariens 04320500

ROD, PIVOT - INTERLOCK

$20.99

$

In Stock, only 1 left!

0

21

Ariens 04304400

DASH BEZEL, ARIENS LOGO - PRO

$48.99

$

Usually ships in 4-12 days

0

22

Ariens 04323300

BEZEL, SHIFT

$22.99

$

Usually ships in 4-12 days

0

23

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

25

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (926042, 324)

$2.99

$

In Stock, only 2 left!

0

25

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (926038, 039, 040, 513, 321, 516)

$2.99

$

In Stock, only 2 left!

0

26

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

Note: (926042, 324)

$0.99

$

In Stock, Qty 9

0

26

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

Note: (926038, 039, 040, 513, 321, 516)

$0.99

$

In Stock, Qty 9

0

27

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0

30

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 13

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, Qty 10

0

33

Ariens 07500209

KNOB,SOFT TEARDROP,PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

34

Ariens 07500211

CLUTCH PADDLE SLEEVE - GRAY

$2.49

$

In Stock, only 2 left!

0

35

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

0

36

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

37

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 7

0

38

Ariens 04318600

GROMMET-BOOT, QUICKTURN

$16.99

$

Usually ships in 4-12 days

0

39

Ariens 00184800

MOUNT, CHUTE CONTROL

$59.99

$

Usually ships in 4-12 days

0

40

Ariens 04321800

LEVER, CHUTE CONTROL

$50.99

$

Usually ships in 4-12 days

0

41

Ariens 07500205

CONTROL HANDLE, QUICK TURN

$10.99

$

In Stock, only 1 left!

0

42

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

$3.99

$

In Stock, only 1 left!

0

43

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

44

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

$6.49

$

In Stock, Qty 8

0

45

Ariens 04532300

TAPE, DIE CUT - QUICK TURN

$

$

Not available

46

Ariens 04307600

HEADLIGHT ASSY, HALOGEN 20W
(Superseded to 04812300)

$46.99

$

In Stock, only 2 left!

0

47

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$17.99

$

In Stock, only 3 left!

0

48

Ariens 07000036

NUT, PUSH -.75" SHAFT

$2.49

$

Usually ships in 4-12 days

0
