926325 (PRO 28) - Ariens Hydro Professional 28" Track Snow Blower, Briggs & Stratton (SN: 096000 & Above) Controls Parts Diagram

Hydro Professional 28" Track Snow Blower, Briggs & Stratton

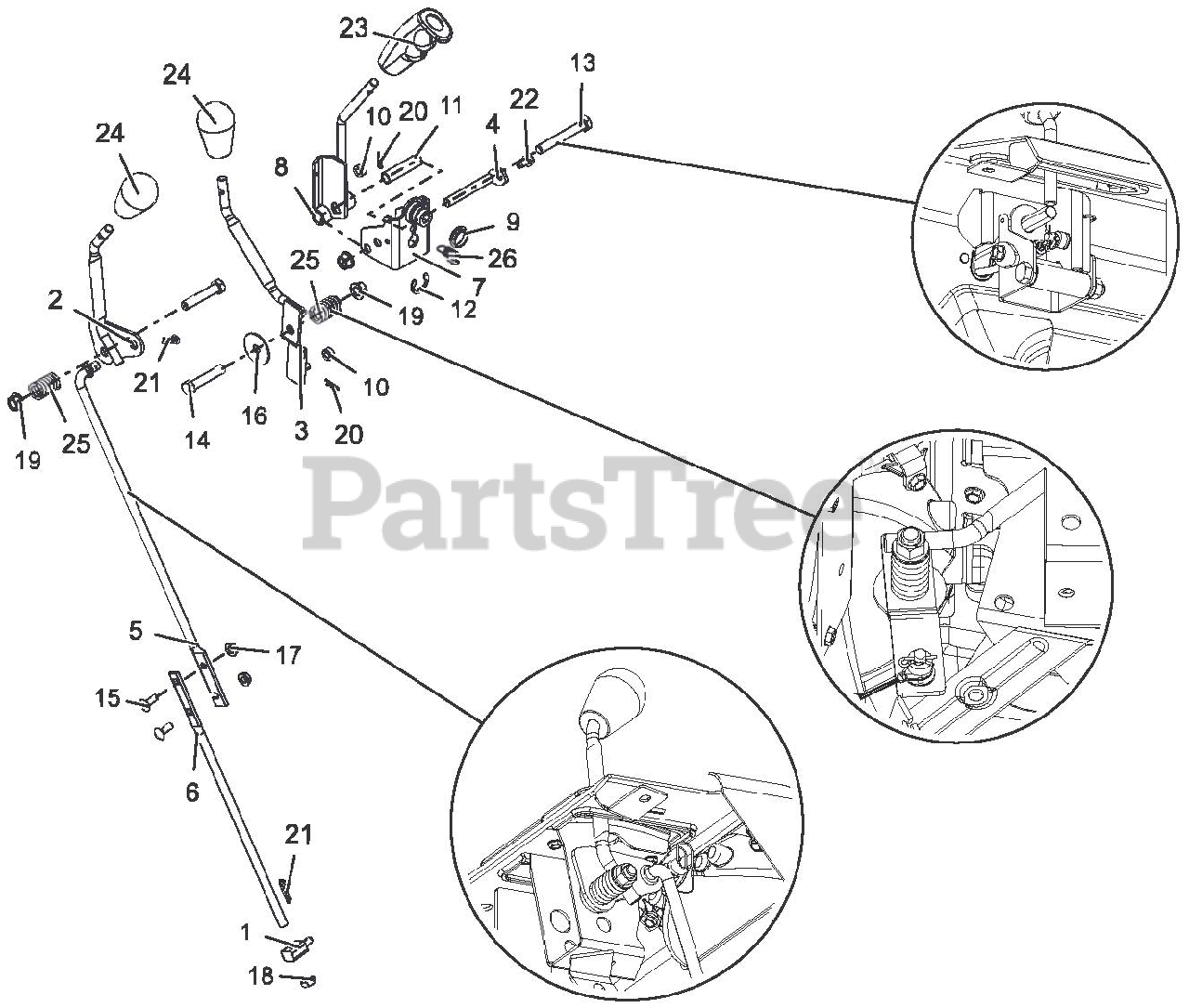

Controls Parts Diagram

  • Title

1

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

Note: TRUNN

$8.49

$

In Stock, Qty 7

0

2

Ariens 04320200

WELDMENT, CONTROL LEVER(SHIFT)

Note: SHIFT

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 04320300

WELDMENT, CONTROL LEVER (DEFL)

Note: DEFL

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 04320500

ROD, PIVOT - INTERLOCK

$20.99

$

In Stock, only 1 left!

0

5

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

6

Ariens 04378267

ROD. HYDRO SHIFT - LOWER

$90.99

$

Usually ships in 4-12 days

0

7

Ariens 04755000

WELDMENT-CONTROL BRACKET-CHUTE

$47.99

$

Usually ships in 4-12 days

0

8

Ariens 04755100

WELDMENT, CONTROL LEVER

$113.99

$

Usually ships in 4-12 days

0

9

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 7

0

10

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

0

11

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.99

$

In Stock, Qty 14

0

12

Ariens 05700218

E-RING .750X.050

$2.99

$

In Stock, Qty 20+

0

13

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

14

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

18

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

21

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07500205

CONTROL HANDLE, QUICK TURN

$10.99

$

In Stock, only 1 left!

0

24

Ariens 07500209

KNOB,SOFT TEARDROP,PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

25

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 8

0

26

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, Qty 10

0
