926325 (PRO 28) - Ariens Hydro Professional 28" Track Snow Blower, Briggs & Stratton (SN: 096000 & Above) Track Axles Parts Diagram

Hydro Professional 28" Track Snow Blower, Briggs & Stratton

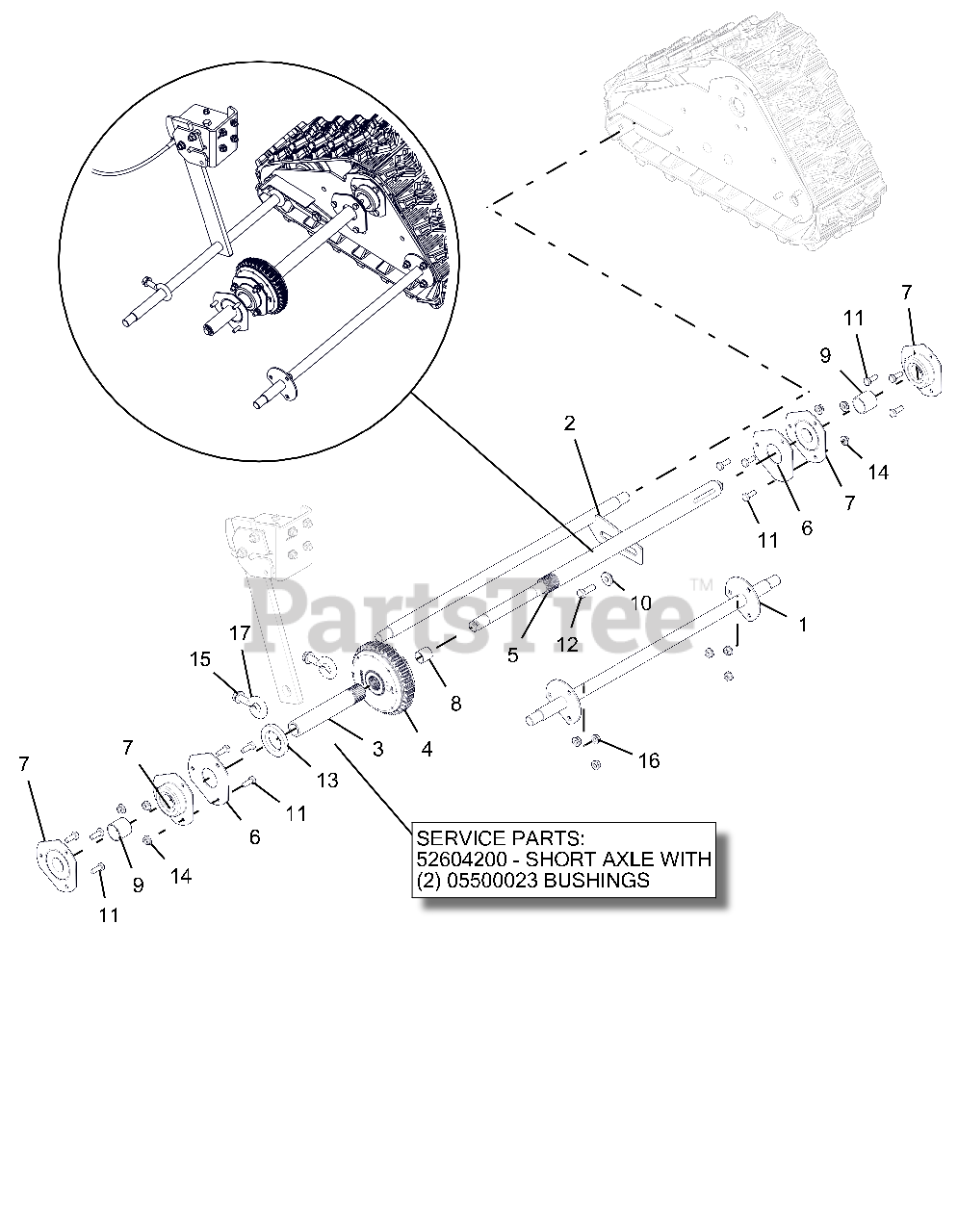

Track Axles Parts Diagram

  • Title

1

Ariens 03376000

AXLE, FRONT - PRO

$118.99

$

Usually ships in 4-12 days

0

2

Ariens 03376100

AXLE, REAR - PRO TRACK

$72.99

$

Usually ships in 4-12 days

0

3

Ariens 00661300

AXLE, SHORT-TRACK DIFFERENTIAL

$

$

Not available

3

Ariens 52604200

AXLE, SHORT-TRACK W/BUSHINGS

Note: SERVICE PART

$71.99

$

Usually ships in 4-12 days

0

3

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

4

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

5

Ariens 04593100

AXLE, LONG-PRO AUTO DIFF

$92.99

$

Usually ships in 4-12 days

0

6

Ariens 04796351

PLATE, BEARING SPACER

Note: (BLACK)

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 7

0

8

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

10

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

12

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

13

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$6.49

$

Usually ships in 4-12 days

0

14

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 8

0

15

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0
