926326 (PRO 28) - Ariens Hydro Professional 28" Snow Blower, Briggs & Stratton (SN: 096000 & Above) Transmission Parts Diagram

Hydro Professional 28" Snow Blower, Briggs & Stratton

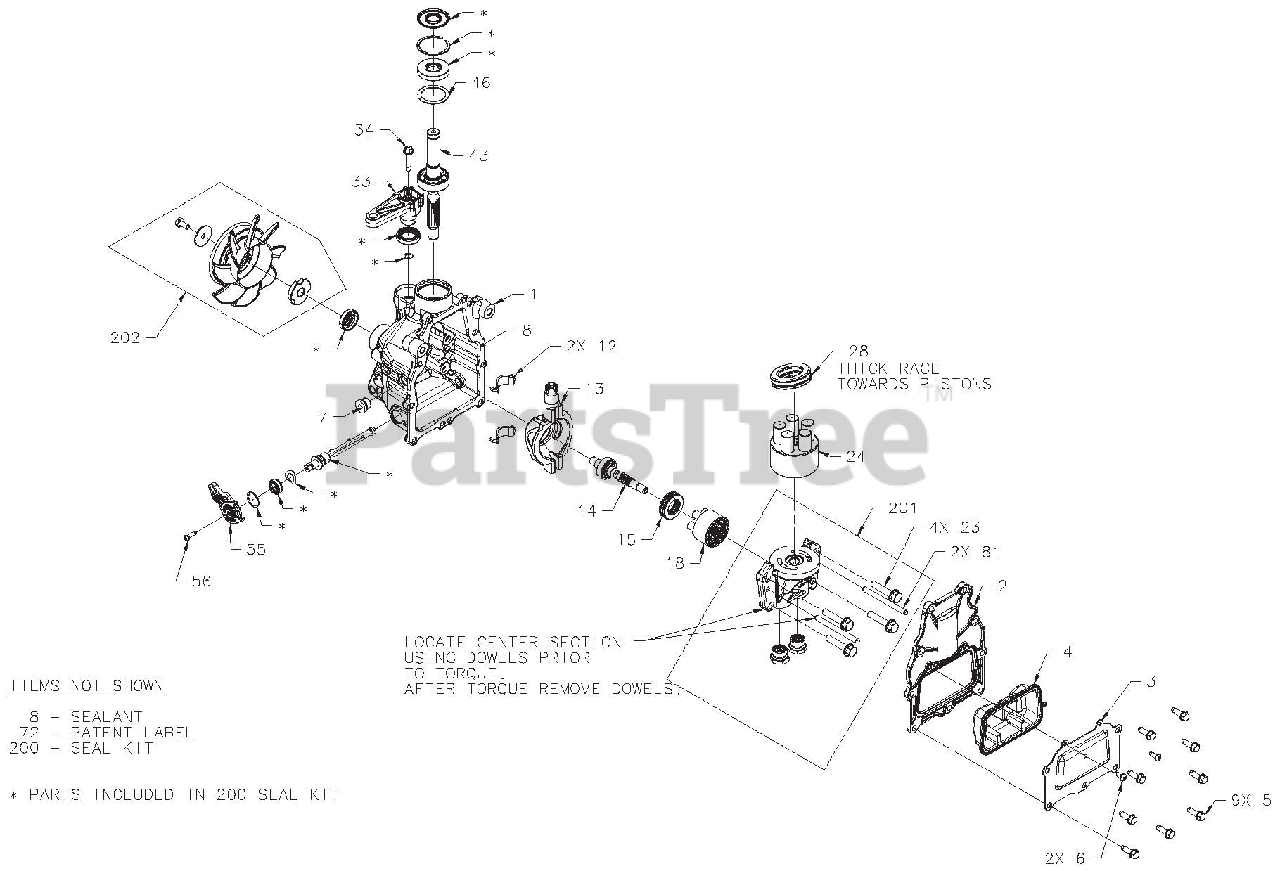

Transmission Parts Diagram

  • Title

1

Ariens 27104800

HOUSING, MAIN, SHOT

Note: Hydro-Gear p/n 54217

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 27104900

COVER

Note: Hydro-Gear p/n 53934

$29.99

$

Usually ships in 4-12 days

0

3

Ariens 27105000

PLATE, EXPANSION

Note: Hydro-Gear p/n 53943

$10.99

$

Usually ships in 4-12 days

0

4

Ariens 27105100

BLADDER

Note: Hydro-Gear p/n 53940

$16.99

$

Usually ships in 4-12 days

0

5

Ariens 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 21543751

BOLT, SELF TAPPING 1/4-20 X .5

Note: Hydro-Gear p/n 50653

$

$

Not available

7

Ariens 08613700

PLUG, STEEL (WITH SEAL)

Note: Hydro-Gear p/n 9005110-5600

$14.99

$

Usually ships in 4-12 days

0

8

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

12

Ariens 27105200

BEARING, CRADLE

Note: Hydro-Gear p/n 54229

$23.99

$

Usually ships in 4-12 days

0

13

Ariens 27105300

SWASH PLATE

Note: Hydro-Gear p/n 53912

$40.99

$

Usually ships in 4-12 days

0

14

Ariens 27105400

KIT, INPUT SHAFT

Note: Hydro-Gear p/n 72334

$54.99

$

Usually ships in 4-12 days

0

15

Ariens 27105500

BEARING, 21 X 35 X 10

Note: Hydro-Gear p/n 53894

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 27105600

KIT, 3CC BLOCK

Note: Hydro-Gear p/n 72335

$50.94

$

Usually ships in 4-12 days

0

23

Ariens 27105700

SCREW, HFHCS 5/16-18 X 1.5

Note: Hydro-Gear p/n 53256

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$103.99

$

Usually ships in 4-12 days

0

28

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$19.99

$

Usually ships in 4-12 days

0

33

Ariens 27105800

ARM, CONTROL

Note: Hydro-Gear p/n 54190

$45.99

$

Usually ships in 4-12 days

0

34

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 3 left!

0

43

Ariens 27106000

KIT, MOTOR SHAFT

Note: Hydro-Gear p/n 72336

$98.99

$

Usually ships in 4-12 days

0

46

Ariens 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$6.49

$

In Stock, only 2 left!

0

55

Ariens 27106100

ARM, BYPASS

Note: Hydro-Gear p/n 54090

$4.49

$

Usually ships in 4-12 days

0

56

Ariens 27106200

SCREW, M4X16, WUPLAST

Note: Hydro-Gear p/n 54051

$4.49

$

Usually ships in 4-12 days

0

62

Ariens 27106300

HUB, PULLEY DIA 1.41

Note: Hydro-Gear p/n 53949

$2.99

$

Usually ships in 4-12 days

0

72

Label, Patent

Note: Hydro-Gear p/n 54187

$

$

Not available

81

Ariens 27106400

PIN, STRAIGHT HEADLESS

Note: Hydro-Gear p/n 9004820-2536

$7.99

$

Usually ships in 4-12 days

0

200

Ariens 27106500

KIT, SEAL

Note: Hydro-Gear p/n 72337

$79.99

$

Usually ships in 4-12 days

0

201

Ariens 27106600

KIT, CENTER SECTION

Note: Hydro-Gear p/n 72338

$115.99

$

Usually ships in 4-12 days

0

202

Ariens 52611600

KIT, RT-310 FAN REPLACEMENT

Note: Hydro-Gear p/n 72339

$40.99

$

Usually ships in 4-12 days

0
