926328 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 - 094999) Reduction Drive Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

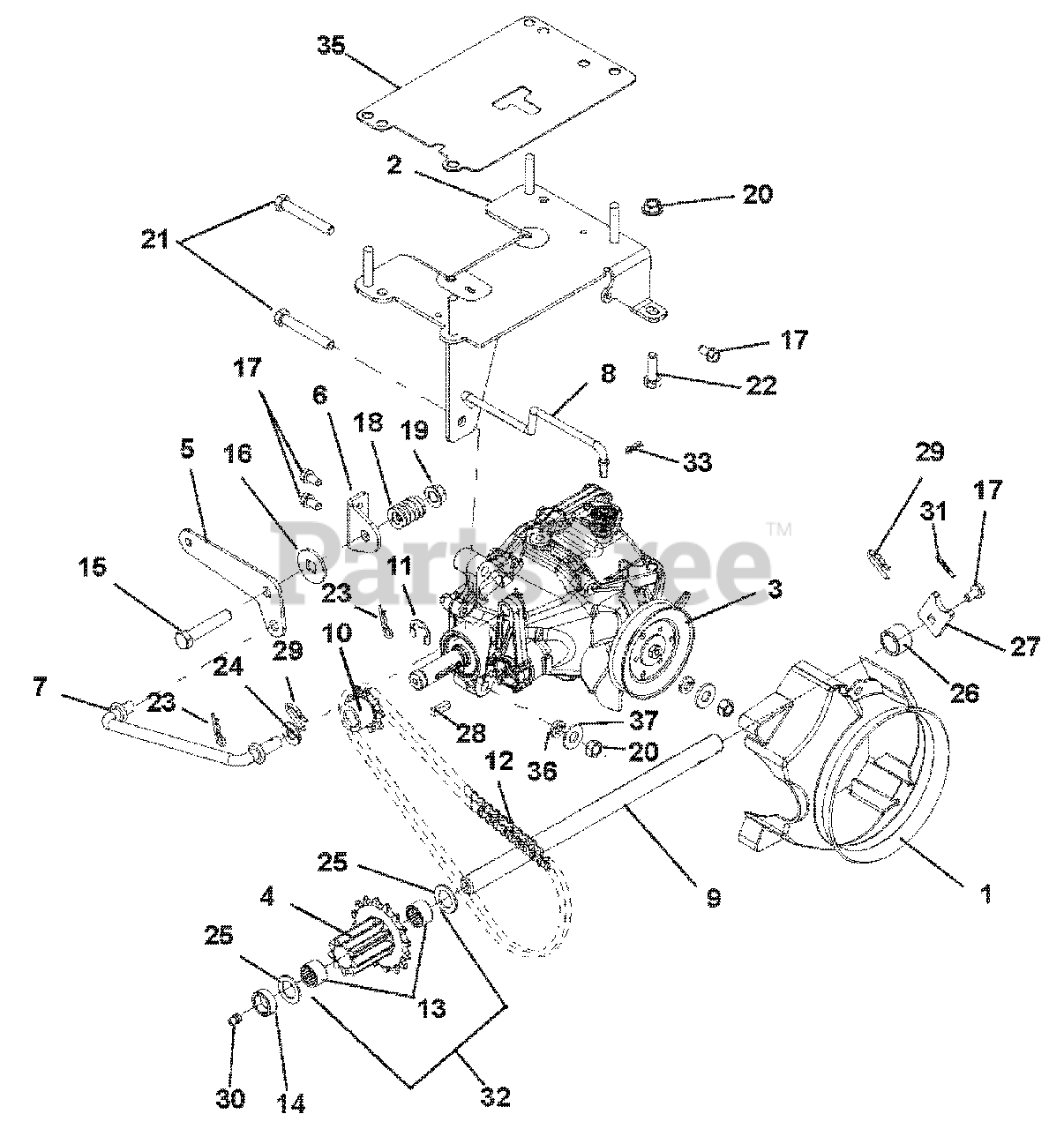

Reduction Drive Parts Diagram

  • Title

1

Ariens 04513900

SHROUD, HYDROGEAR RT-310

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 04371200

BRACKET, HYDROSTATIC TRANS XLG

$62.99

$

Usually ships in 4-12 days

0

3

Ariens 04438900

TRANSMISSION, HYDROSTATIC

$831.99

$

Usually ships in 4-12 days

0

4

Ariens 00190600

PINION & SPROCKET

Note: (Included w/item 32) (926053, 054, 055, 326, 328, 329)

$

$

Not available

4

Ariens 04510900

PINION & SPROCKET (16T & 9T)

Note: (Included w/item 32) (926056, 325)

$79.99

$

Usually ships in 4-12 days

0

5

Ariens 04376651

PIVOT, HYDRO TRANS SHIFT

$7.99

$

Usually ships in 4-12 days

0

6

Ariens 04376751

BRACKET, HYDRO SHIFT PIVOT

$7.49

$

Usually ships in 4-12 days

0

7

Ariens 04376500

ROD, HYDRO TRANS SHIFT

$9.99

$

Usually ships in 4-12 days

0

8

Ariens 04437067

ROD, HYDRO BYPASS
(Superseded to 09165100)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 04511800

SHAFT, PINION - HARDENED

$43.99

$

In Stock, only 2 left!

0

10

Ariens 04375800

SPROCKET, PINION 9T W/KEY
(Superseded to 09478200)

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, only 3 left!

0

12

Ariens 02466200

CHAIN - #41, 32 PITCHES

Note: (926053, 054, 055, 326, 328, 329)

$8.49

$

In Stock, only 1 left!

0

12

Ariens 03232800

CHAIN-ROLLER #41X26 PITCHES

Note: (920056, 325)

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: (Included w/item 32) (926053, 054, 055, 326, 328, 329)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 05403800

BRG-NEEDLE .625X.812X.50

Note: (Included w/item 32) (926056, 325)

$23.99

$

Usually ships in 4-12 days

0

14

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

15

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

16

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

23

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (926053, 054, 055, 326, 328, 329)

$0.99

$

In Stock, Qty 12

0

25

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (926056, 325)

$0.99

$

In Stock, Qty 12

0

26

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

27

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

28

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 7

0

29

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

30

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

31

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: (Includes items 4 and 13) (926053, 054, 055, 326, 328, 329)

$46.99

$

In Stock, only 2 left!

0

32

Ariens 52611500

PINION & SPROCKET W/BEARINGS

Note: (Includes items 4 and 13) (926056, 325)

$138.99

$

Usually ships in 4-12 days

0

33

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

34

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

35

Ariens 04535200

SPACER, TRANSMISSION MOUNT

Note: (926056, 325)

$9.99

$

Usually ships in 4-12 days

0

36

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

37

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0
