926328 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 095000 & Above) Wheels And Axles Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

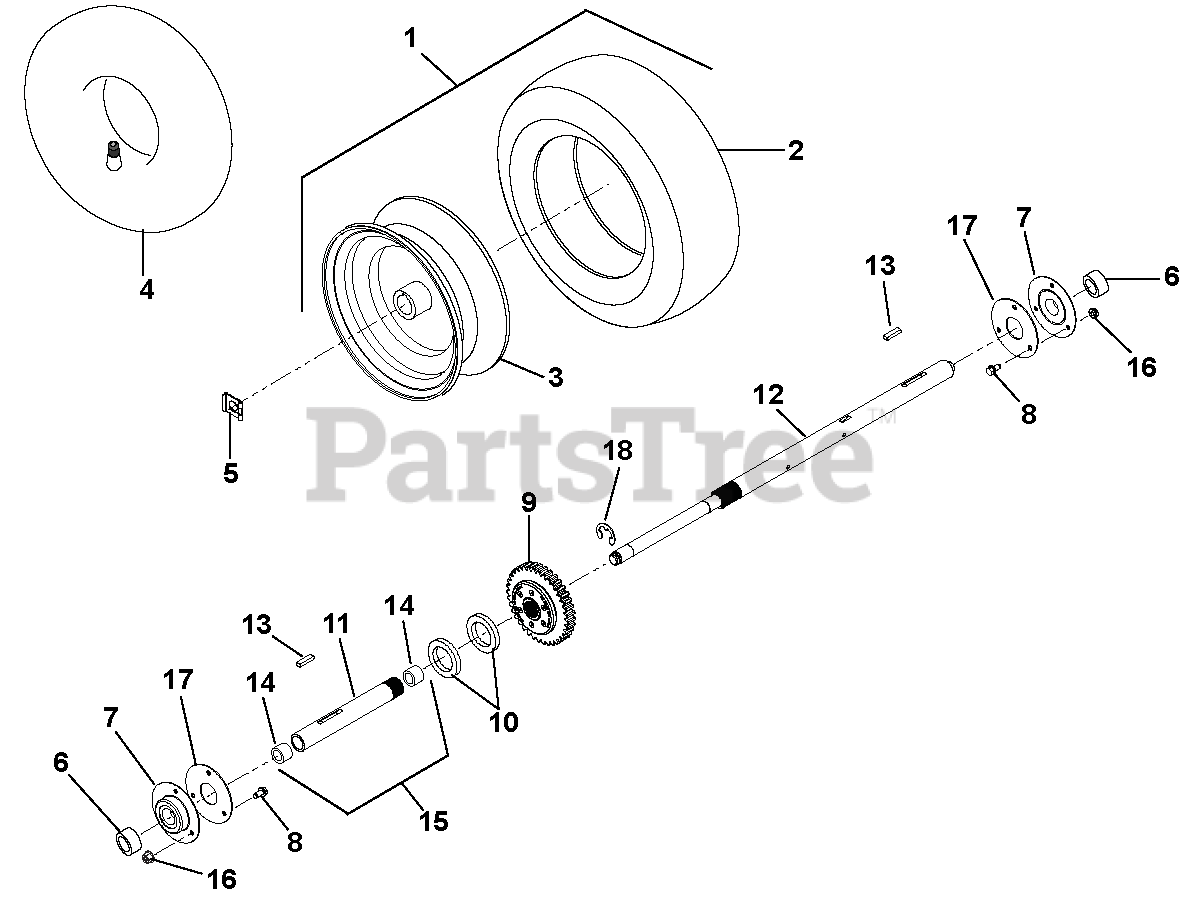

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes Items 2 and 3)

$151.99

$

Usually ships in 4-12 days

0

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes Items 2 and 3)

$151.99

$

In Stock, only 2 left!

0

2

Ariens 07100728

TIRE, 16X6.50-8 K478

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 07100103

HUB, WHEEL - 16X6.5-8 DIFF

$65.99

$

In Stock, only 1 left!

0

4

Ariens 07108700

TUBE

$36.99

$

Usually ships in 4-12 days

0

5

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.99

$

In Stock, only 4 left!

0

7

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$44.99

$

In Stock, Qty 7

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

10

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

Note: (Included in Item 15)

$55.99

$

In Stock, only 2 left!

0

12

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$98.99

$

In Stock, only 2 left!

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

14

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: (Included in Item 15)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (Includes Items 11 and 14)

$55.99

$

In Stock, only 2 left!

0

16

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

17

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0
