926329 (PRO 36) - Ariens Hydro Professional 36" Snow Blower, Briggs & Stratton (SN: 096000 & Above) Dash Parts Diagram

Hydro Professional 36" Snow Blower, Briggs & Stratton

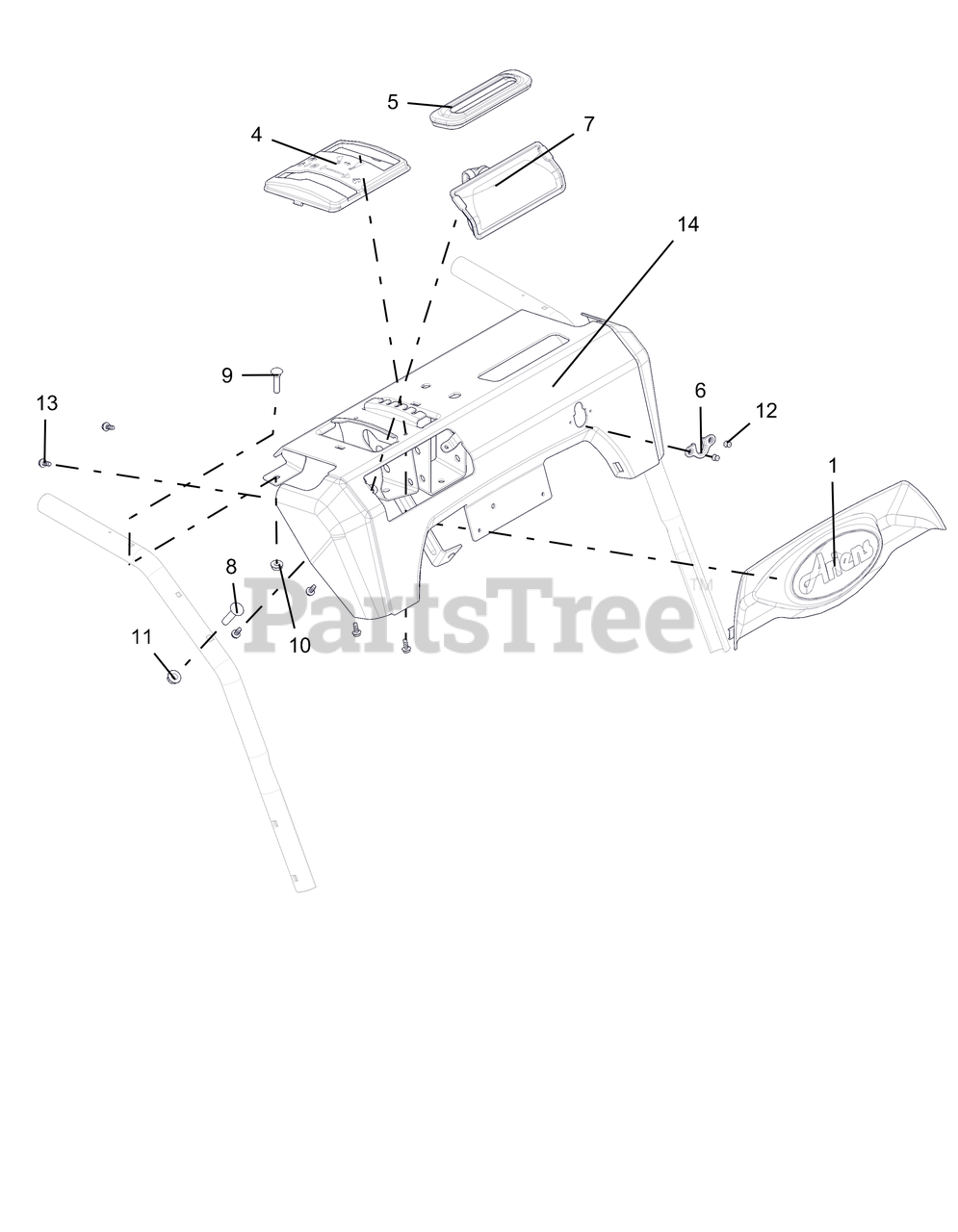

Dash Parts Diagram

  • Title
1

Ariens 04304400

DASH BEZEL, ARIENS LOGO - PRO

$

$

Not available

4

Ariens 04511000

SHIFT BEZEL W/ NEUTRAL

$21.99

$

Usually ships in 4-12 days

0

5

Ariens 04757600

GROMMET, BOOT, QUICK TURN

$11.99

$

In Stock, only 2 left!

0

6

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$

$

Not available

7

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

8

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

13

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 52613600

KIT, DASH PANEL W/DECAL HYD

$137.99

$

Usually ships in 4-12 days

0
