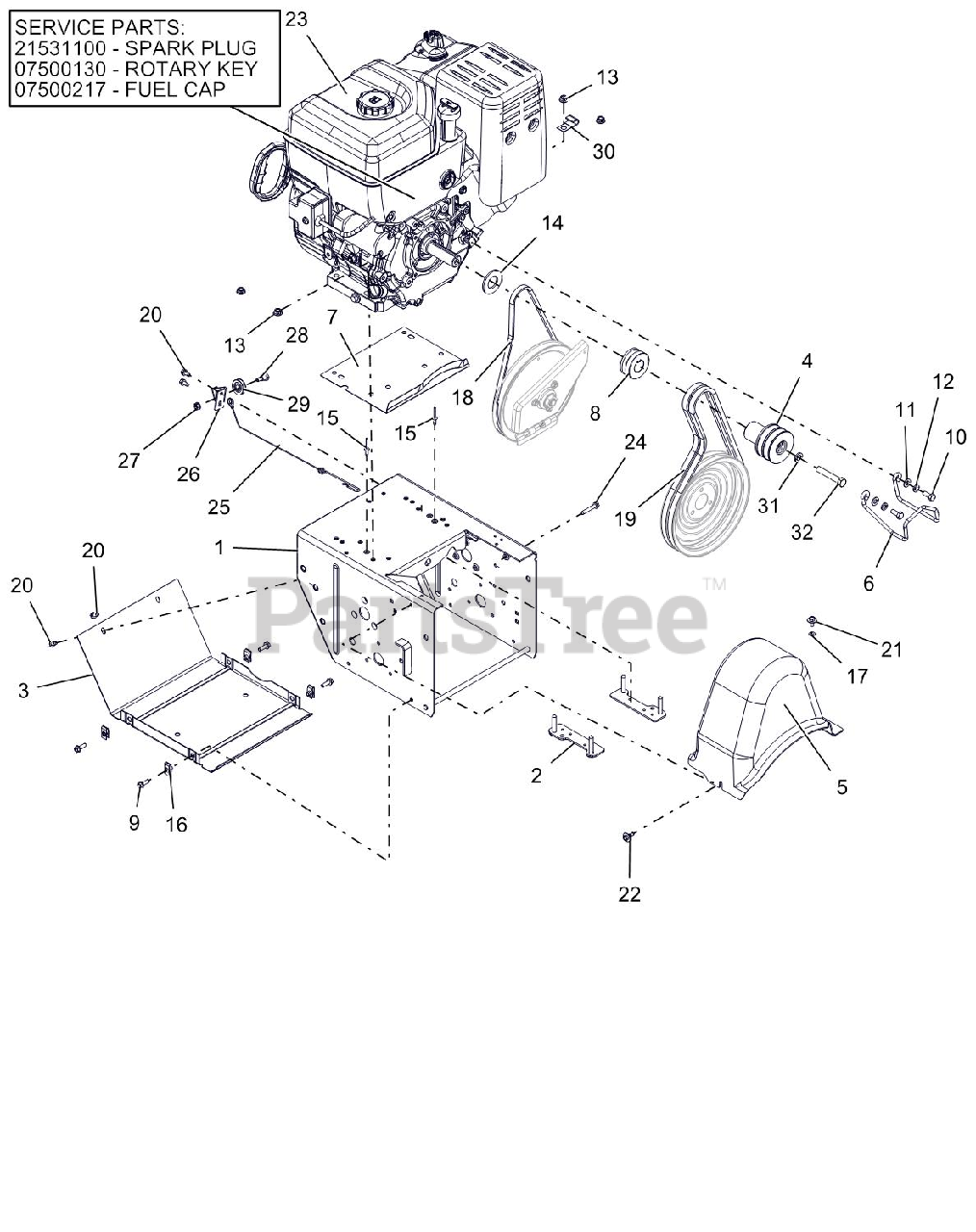

926332 (ST 28 DLE) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 000101 - 000499) Engine, Frame And Belt Drive Parts Diagram

Professional 28" Snow Blower, Briggs & Stratton

Engine, Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$215.99

$

Usually ships in 4-12 days

0

2

Ariens 04987100

STRAP, BOLT-LARGE

$14.99

$

In Stock, only 1 left!

0

3

Ariens 00375159

COVER, BOTTOM

$92.99

$

In Stock, only 1 left!

0

4

Ariens 00657400

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 04957500)

$31.99

$

In Stock, only 2 left!

0

5

Ariens 04989100

COVER, BELT-LARGE

$23.99

$

In Stock, only 2 left!

0

6

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$28.99

$

In Stock, only 2 left!

0

7

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 04999200

SHEAVE, DRIVE
(Superseded to 07348500)

$27.99

$

In Stock, only 2 left!

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$5.99

$

In Stock, only 2 left!

0

15

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 07009000

NUT-RTNR .25-20X.56

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.99

$

In Stock, Qty 8

0

18

Ariens 07200607

V-BELT, 3L-WRAPPED

$19.99

$

In Stock, Qty 12

0

19

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$59.99

$

In Stock, Qty 20+

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$2.99

$

In Stock, only 1 left!

0

22

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$3.99

$

In Stock, Qty 18

0

23

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: SERVICE PART

$6.49

$

In Stock, Qty 20+

0

23

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: SERVICE PART

$11.99

$

In Stock, Qty 19

0

23

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

Note: SERVICE PART

$77.99

$

Usually ships in 4-12 days

0

23

Ariens 08200801

ENGINE, BRIGGS PF 2100, 240V

$

$

Not available

24

Ariens 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$20.99

$

In Stock, Qty 7

0

26

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$6.49

$

In Stock, only 2 left!

0

27

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$4.99

$

In Stock, only 2 left!

0

29

Ariens 07300012

PULLEY, CABLE

$5.99

$

In Stock, Qty 20+

0

30

Ariens 06909400

J-CLAMP

$4.99

$

In Stock, only 2 left!

0

31

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

32

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$3.99

$

In Stock, Qty 7

0
