926333 (ST 28 DLE) - Ariens Hydro Pro 28" Snow Blower, Ariens AX 414cc engine (SN: 000101 & Above) Discharge Chute Parts Diagram

Hydro Pro 28" Snow Blower, Ariens AX 414cc engine

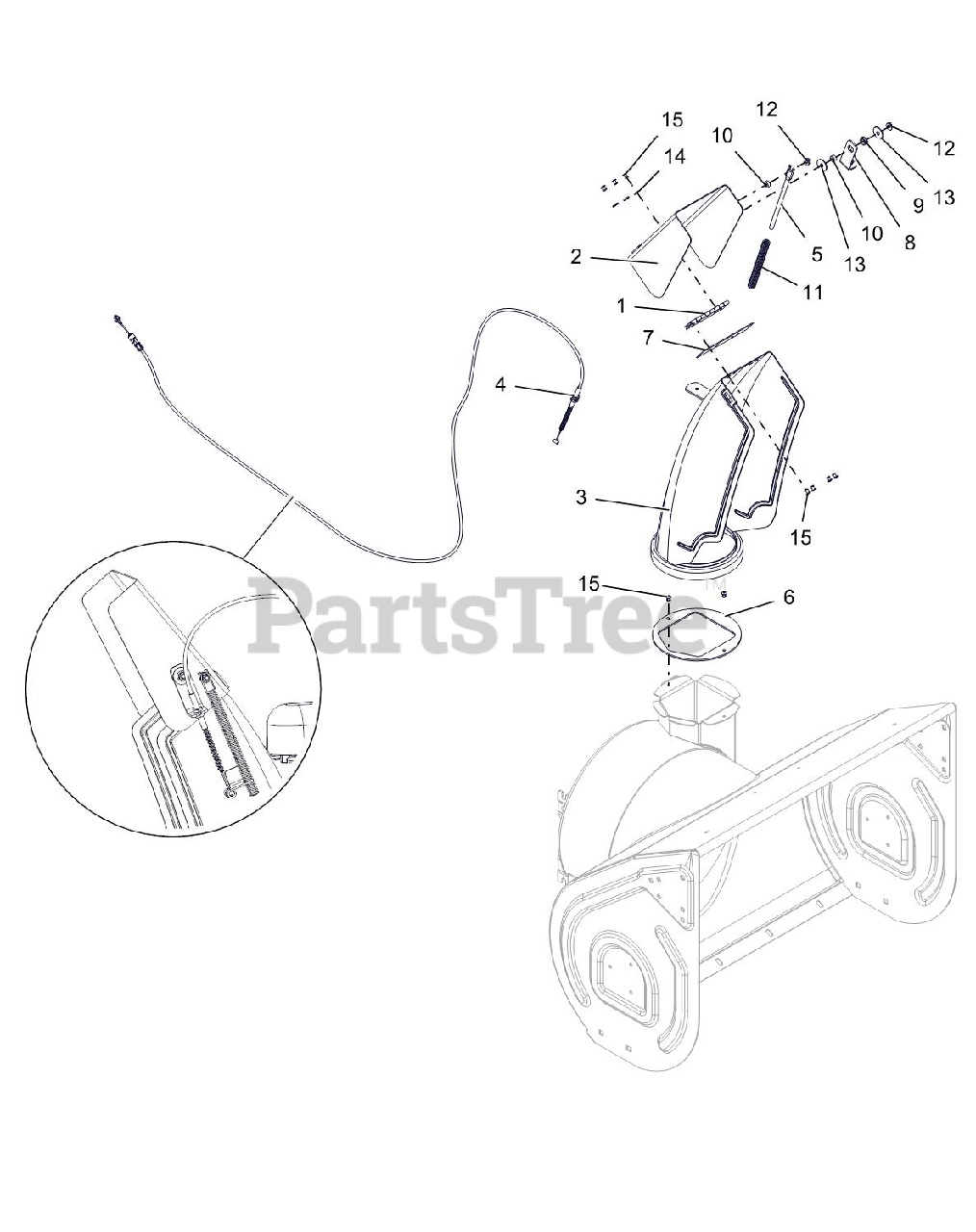

Discharge Chute Parts Diagram

  • Title

1

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

2

Ariens 52108900

CAP, LARGE REMOTE (W/DECAL)
(Superseded to 52110100)

$46.99

$

In Stock, only 1 left!

0

3

Ariens 04753259

CHUTE,DISCHARGE,NOTCHED,QT
(Superseded to 52110400)

$162.99

$

Usually ships in 4-12 days

0

4

Ariens 06900614

CABLE, DEFLECTOR - DELUXE

$56.99

$

In Stock, only 2 left!

0

5

Ariens 00389000

ROD, DEFLECTOR CAP

$15.99

$

In Stock, only 3 left!

0

6

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

7

Ariens 00628400

CAP SEAL 5.50

$5.49

$

Usually ships in 4-12 days

0

8

Ariens 04115359

BRACKET, CABLE ANCHOR

$62.99

$

Usually ships in 4-12 days

0

9

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

10

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

0

11

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.99

$

In Stock, only 1 left!

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

13

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

14

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0
