926335 (ST 28 DLET) - Ariens Hydro Pro 28" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Battery Parts Diagram

Hydro Pro 28" Track Snow Blower, Briggs & Stratton

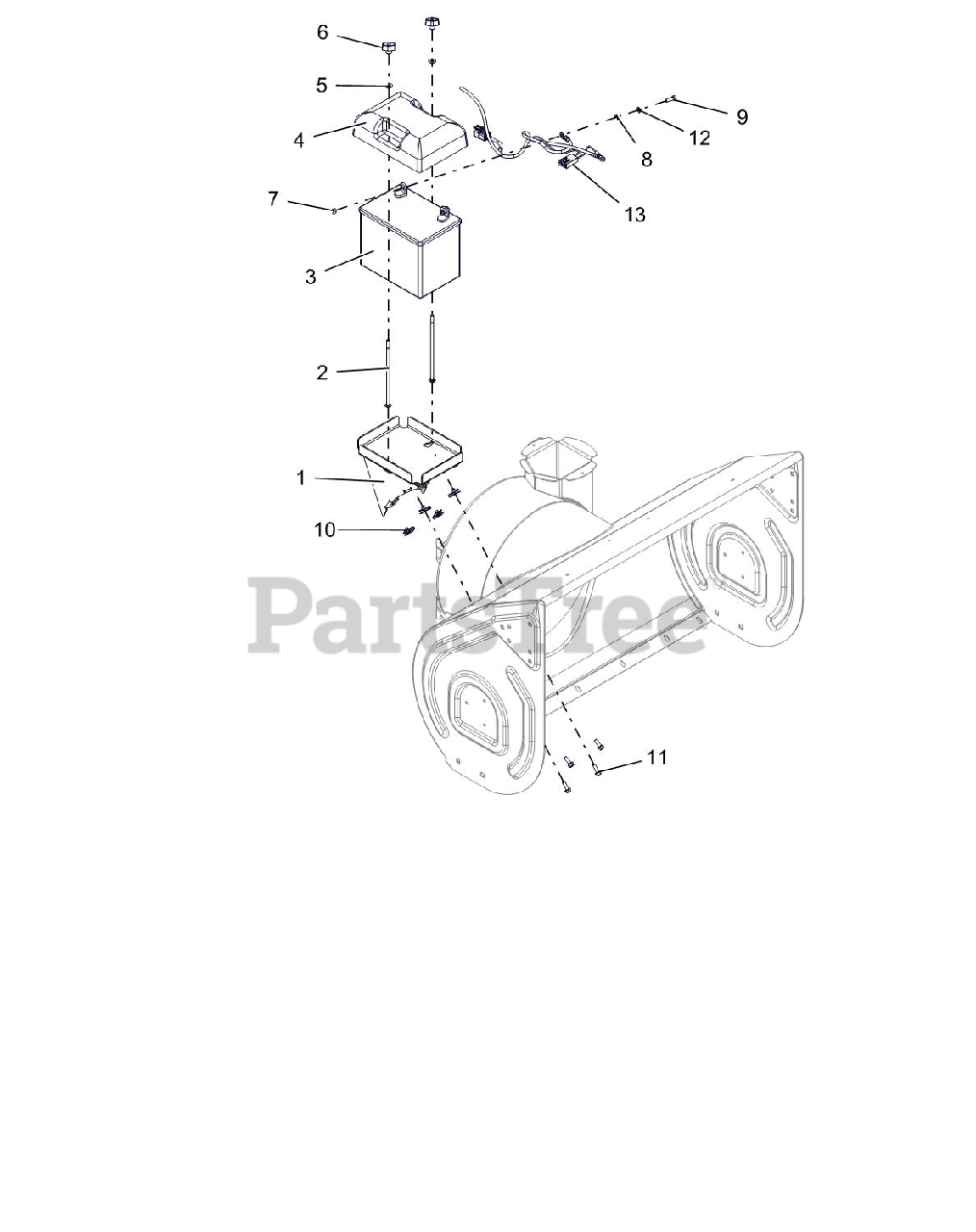

Battery Parts Diagram

  • Title

1

Ariens 52612800

ASSY, BATTERY TRAY WITH CLIPS

$64.99

$

Usually ships in 4-12 days

0

2

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, only 2 left!

0

3

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

6

Ariens 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

8

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

12

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 04279700

HARNESS, ELEC - 12V BRIGGS

$73.99

$

Usually ships in 4-12 days

0
