926336 (ST 28 DLE) - Ariens Hydro Pro 28" Snow Blower, Ariens AX 420cc EFI (SN: 020000 & Above) Dash - EFI Parts Diagram

Hydro Pro 28" Snow Blower, Ariens AX 420cc EFI

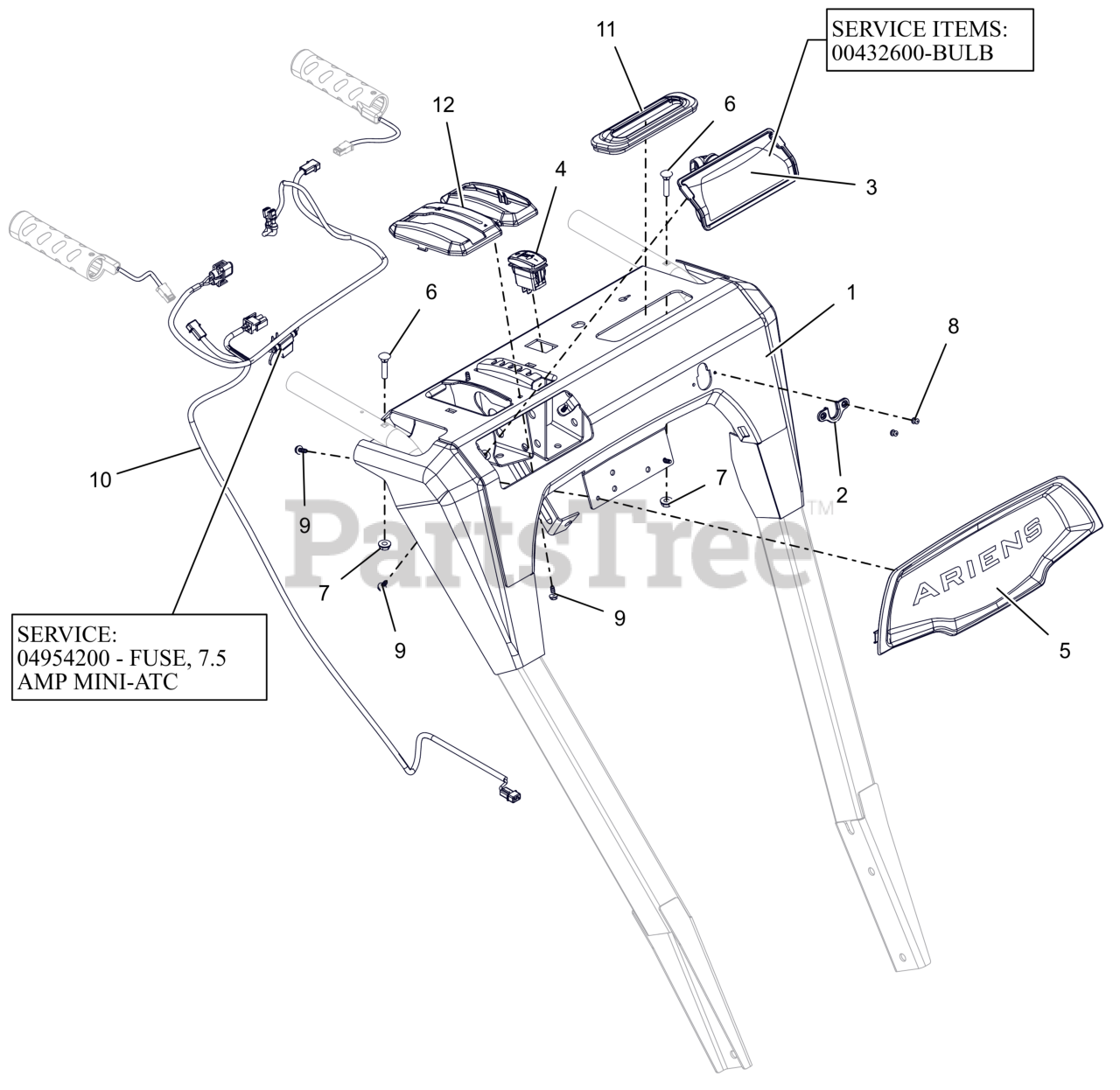

Dash - EFI Parts Diagram

  • Title

1

Ariens 52616100

PANEL, DASH-HYDRO EFI W/DECAL

$221.99

$

Usually ships in 4-12 days

0

2

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$46.99

$

In Stock, only 2 left!

0

3

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$17.99

$

In Stock, only 3 left!

0

4

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$21.99

$

In Stock, only 2 left!

0

5

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

7

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

8

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06100239

SCR, PLASTIC #10X.50

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 05071800

HARNESS,LIGHT&WARMER - EFI

$71.99

$

Usually ships in 4-12 days

0

10

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: SERVICE PART

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 04757600

GROMMET, BOOT, QUICK TURN

$12.99

$

In Stock, Qty 5

0

12

Ariens 05126600

BEZEL, SHIFT - HYDRO SNOW

$26.99

$

Usually ships in 4-12 days

0
