926340 (PRO 32) - Ariens Hydro Pro 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 - 019999) Electrical - EFI - CE Parts Diagram

Hydro Pro 32" Snow Blower, Ariens AX 420cc EFI

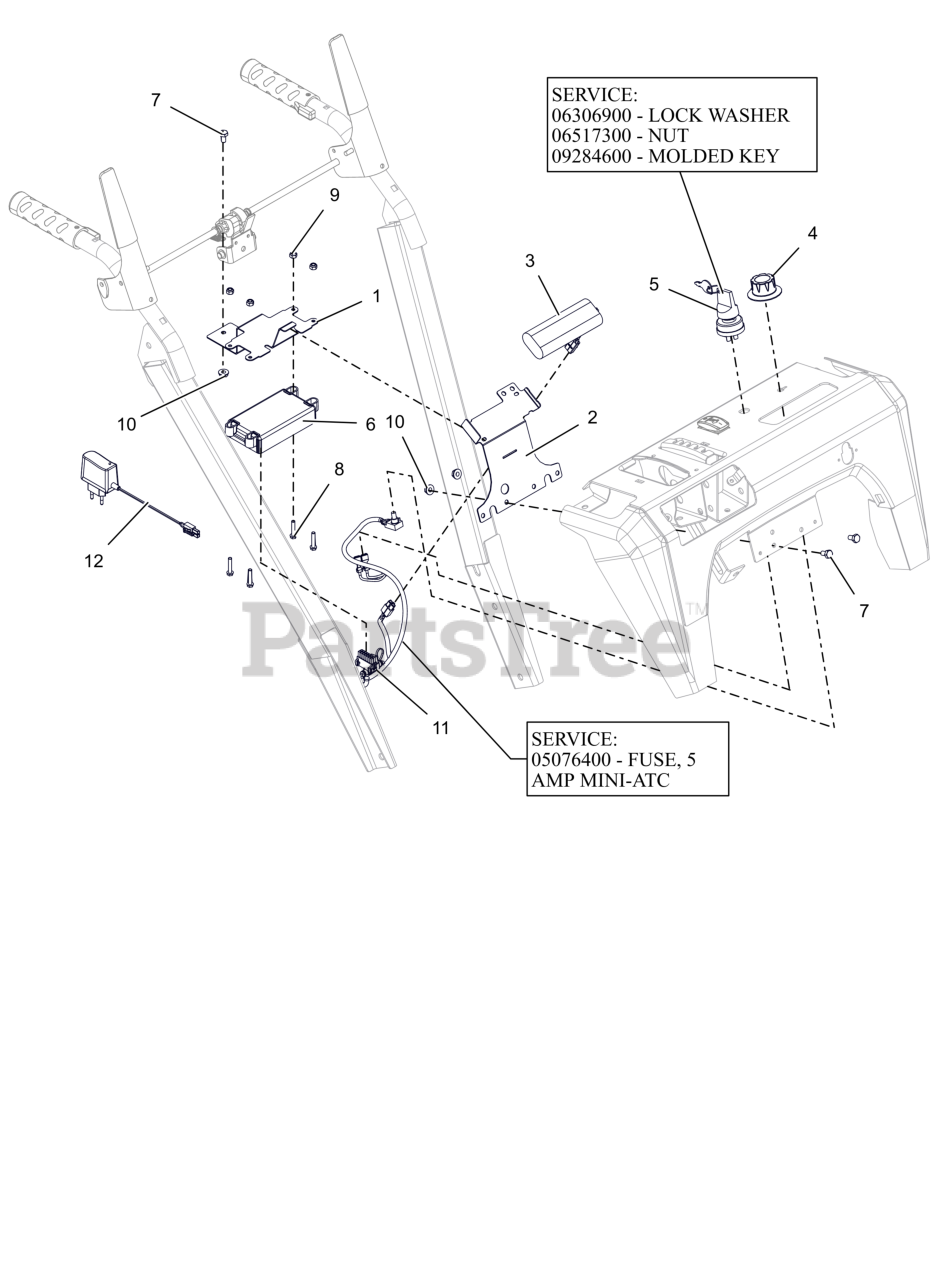

Electrical - EFI - CE Parts Diagram

  • Title

1

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05076500

BATTERY, SNOW EFI - 7.2V

$85.99

$

In Stock, Qty 6

0

4

Ariens 05079400

KNOB, CONTROL - 2.063 ID

$29.99

$

In Stock, only 2 left!

0

5

Ariens 05079600

IGNITION SWITCH ASM - 2 POS

$36.99

$

In Stock, only 2 left!

0

5

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: Component service part

$4.99

$

Usually ships in 4-12 days

0

5

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: Component service part

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 09284600

KEY W/ SHIELD

Note: Component service part

$18.99

$

In Stock, only 2 left!

0

6

Ariens 20003129

ECU SERVICE LCT/CSI - 420CC

$277.99

$

Usually ships in 4-12 days

0

7

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

8

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 6

0

11

Ariens 04992800

HARNESS,WIRE - EFI ECU

$25.99

$

In Stock, only 2 left!

0

11

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 05079501

CHARGER, BATTERY-EFI 7.2V (EU)

$56.99

$

Usually ships in 4-12 days

0
