926341 (PRO 28) - Ariens Hydro Pro Alpine 28" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Housing - 28" Parts Diagram

Hydro Pro Alpine 28" Snow Blower, Ariens AX 420cc EFI

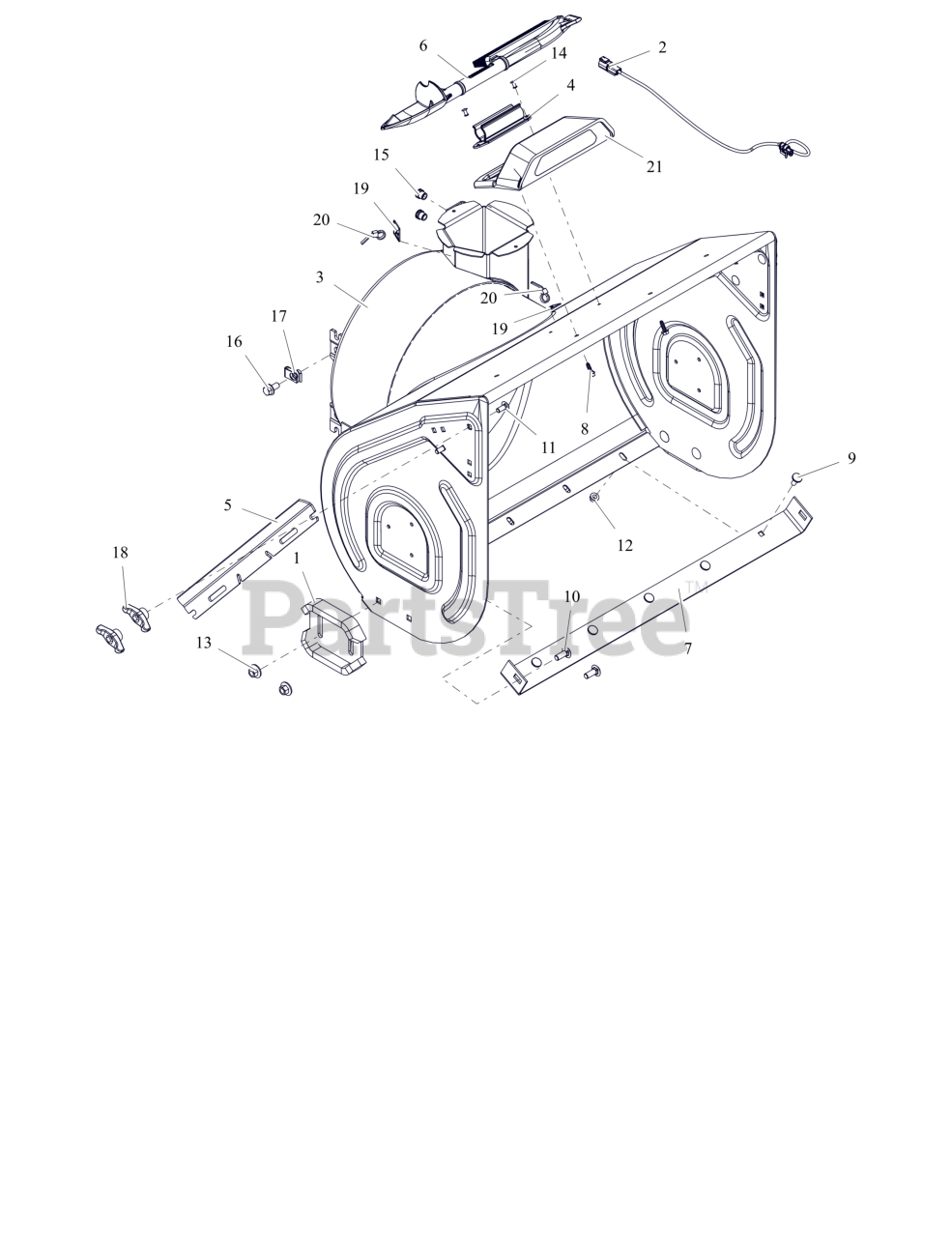

Housing - 28" Parts Diagram

  • Title

1

Ariens 04148959

RUNNER, SKID SHOE

$60.99

$

In Stock, Qty 16

0

2

Ariens 09393000

HARNESS- WIRE - LIGHT JUMPER

$35.99

$

Usually ships in 4-12 days

0

3

Ariens 52616600

HOUSING, PRO W/DECAL 28"

$415.99

$

Usually ships in 4-12 days

0

4

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

5

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$35.99

$

In Stock, only 2 left!

0

7

Ariens 04182159

BLADE, SCRAPER-28"

$42.99

$

In Stock, only 2 left!

0

8

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 5

0

9

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06501007

NUT- CON-LN .375-16 ZC120

$1.99

$

In Stock, only 2 left!

0

14

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07001824

BLT

$1.99

$

In Stock, only 3 left!

0

17

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

18

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

19

Ariens 07500421

MOUNT, CABLE-TIE DOWN

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

21

Ariens 09383000

HOUSING, LIGHT - LED

$62.99

$

In Stock, only 2 left!

0
