926344 (PRO 28) - Ariens Professional 28" Snow Blower, Ariens AX 420cc engine (SN: 000101 & Above) Wheels and Axles - 28" Parts Diagram

Professional 28" Snow Blower, Ariens AX 420cc engine

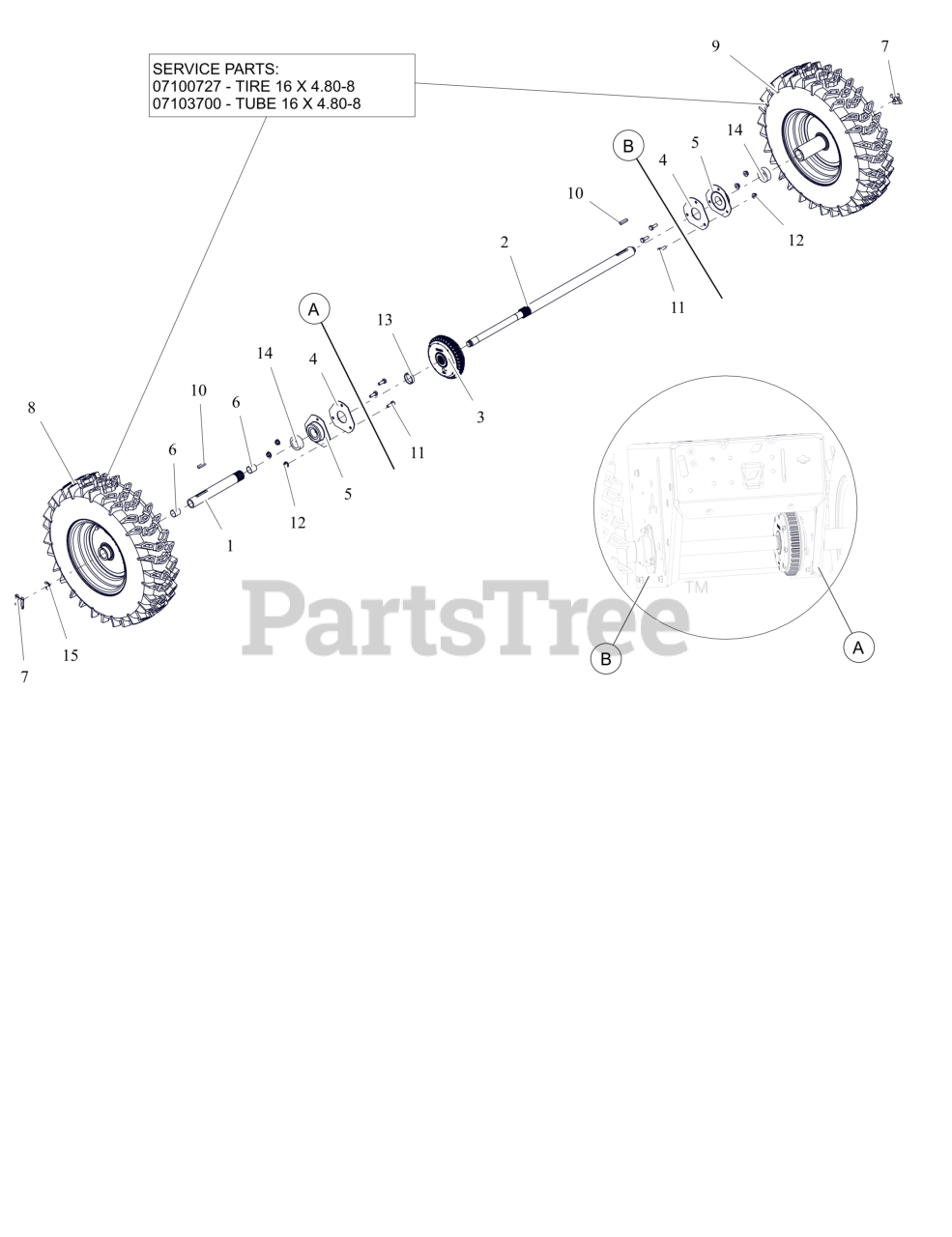

Wheels and Axles - 28" Parts Diagram

  • Title

1

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

$55.99

$

In Stock, only 2 left!

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$98.99

$

In Stock, only 2 left!

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 7

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

8

Ariens 07101415

TIRE/WHEEL RH 16X4.8-8 DIFF T2

$128.99

$

Usually ships in 4-12 days

0

8

Ariens 07100727

SNOW TIRE, 16/4.80-8 K478 DIRECTIONAL

Note: Component Service Part

$75.99

$

Usually ships in 4-12 days

0

8

Ariens 07103700

TIRE TUBE, 16X4.80/4.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Component Service Part

$15.99

$

In Stock, only 2 left!

0

9

Ariens 07101414

TIRE/WHEEL LH 16X4.8-8 DIFF T2

$116.99

$

Usually ships in 4-12 days

0

9

Ariens 07100727

SNOW TIRE, 16/4.80-8 K478 DIRECTIONAL

Note: Component Service Part

$75.99

$

Usually ships in 4-12 days

0

9

Ariens 07103700

TIRE TUBE, 16X4.80/4.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Component Service Part

$15.99

$

In Stock, only 2 left!

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

11

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

13

Ariens 05501413

BSHG, SLV 1.062X1.228X.268

$5.49

$

Usually ships in 4-12 days

0

14

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.99

$

In Stock, only 4 left!

0

15

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0
